Chapter 6. BUFFER MEMORY CONFIGURATION AND FUNCTIONS
6 - 7

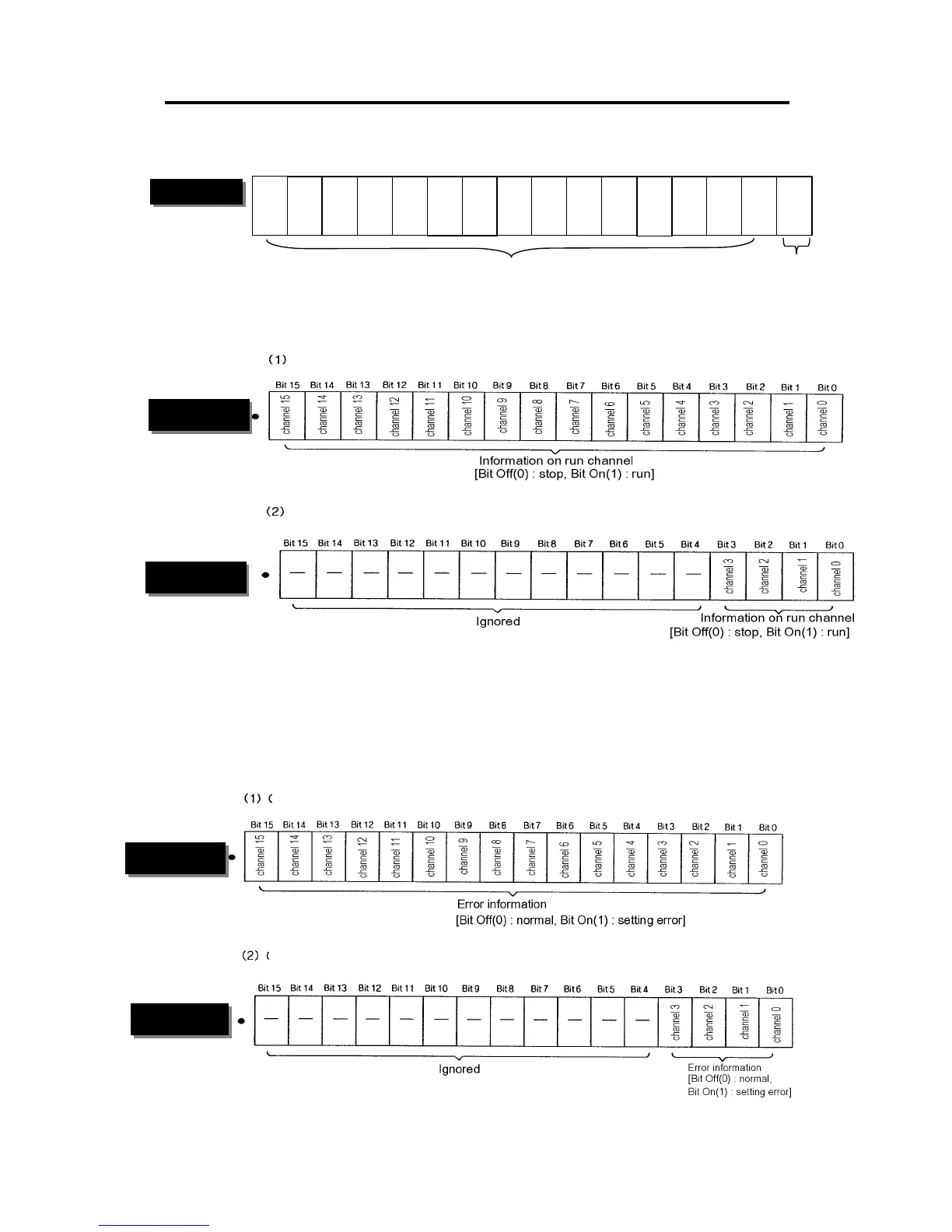

6.2.7 Information on Run Channel (G3F-TC4A : Address 66, G4F-TC2A/G6F-TC2A : Address 18)
This area stores information on run status of each channel.
6.2.8 Information on Thermocouple Type Specification Error
(G3F-TC4A : Address 67, G4F-TC2A/G6F-TC2A : Address 19)
1) If other value than “0” to “6” is set at the addresses (Address 1 to 16 in G3F-TC4A, Address 1 to 4 in
G4F-TC2A/G6F-TC2A) used for specifying the type of the thermocouple which is connected to each
channel of the thermocouple input module, error occurs.
2) If error occurs at a channel, then the channel runs with the type K as the type of the thermocouple.
3) The following shows indication of error information.
Address “66”
Address “18”
Address “67”
Address “19”
G3F-TC4A
G4F-TC2A/G6F-TC2A
G4F-TC2A/G6F-TC2A
G3F-TC4A
Address “17”
Bit15
Bit15Bit15
Bit15
Bit14
Bit14Bit14
Bit14
Bit13
Bit13Bit13
Bit13
Bit12
Bit12Bit12
Bit12 Bit11
Bit11Bit11
Bit11
Bit10
Bit10Bit10
Bit10 Bit9
Bit9Bit9
Bit9
Bit8
Bit8Bit8
Bit8
Bit7
Bit7Bit7
Bit7
Bit6
Bit6Bit6
Bit6 Bit5
Bit5Bit5
Bit5
Bit4
Bit4Bit4
Bit4
Bit3
Bit3Bit3
Bit3
Bit2
Bit2Bit2
Bit2 Bit1
Bit1Bit1
Bit1
Bit0
Bit0Bit0
Bit0
ch
0
~3
-
-
-
-
-
- - - - - - - - -
-
Specifying channel 0~3 SET data enable/disable
[Bit Off(0): disable, Bit On(1): enable]
Ignored
