LG G3F-TC4A User Manual

Chapter 8. PROGRAMMING
8 - 3

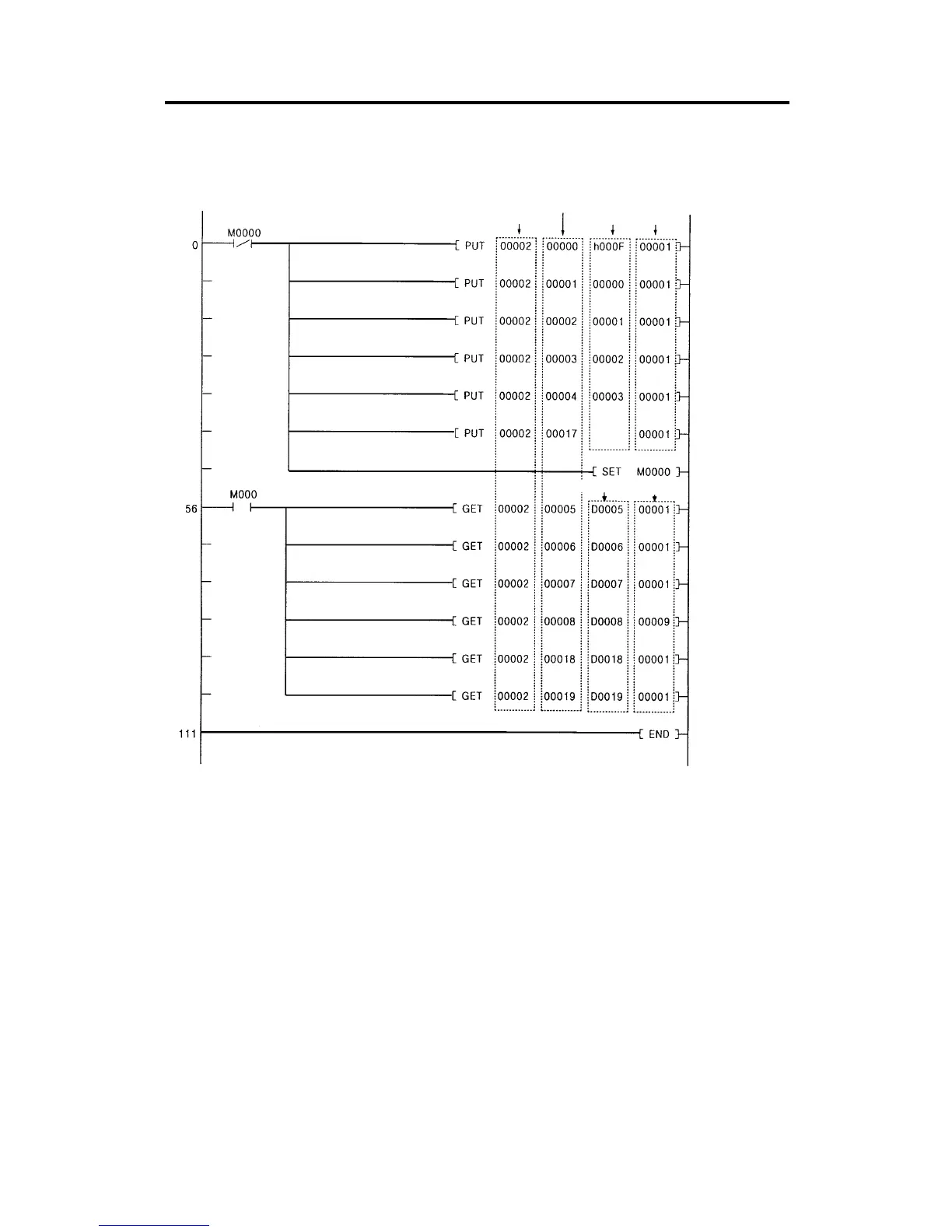

8.1.3 G6F-TC2A
Slot No.
Buffer
memory
address
Setting
data.
Numbers
of words
to be
written
Specifying used channel
(Channel 0 to 15)
Specifying the type K
thermocouple (Channel 0)
Specifying the type 5
thermocouple (Channel 1)
Specifying the type E
thermocouple (Channel 2)
Specifying the type T
thermocouple (Channel 3)
Changing every channel with SET
data whenever the data of buffe
r
memory address 0 to 4 is newl
y
written.
Device to be stored
Number of
words to be read
Reading the temperature conversion
value of channel 0
Reading the digital conversion
value of channel 0
Reading the error code
of channel 0
Reading the temperature conversion
value, digital conversion value and
error code of channel 1 to 3.
Reading run information
(1 : Run, 0 : Stop)
Reading the thermocouple type
specification error information
(Bit On(1) : Setting error,
Bit Off(0) : Normal)
h0001
