2. Remote Temperature Sensor (PQRSTA0)
Part 3. Accessories
5 _ Air-to-Water Heat Pump
2.2 Installation Method
2.2.1 How to use

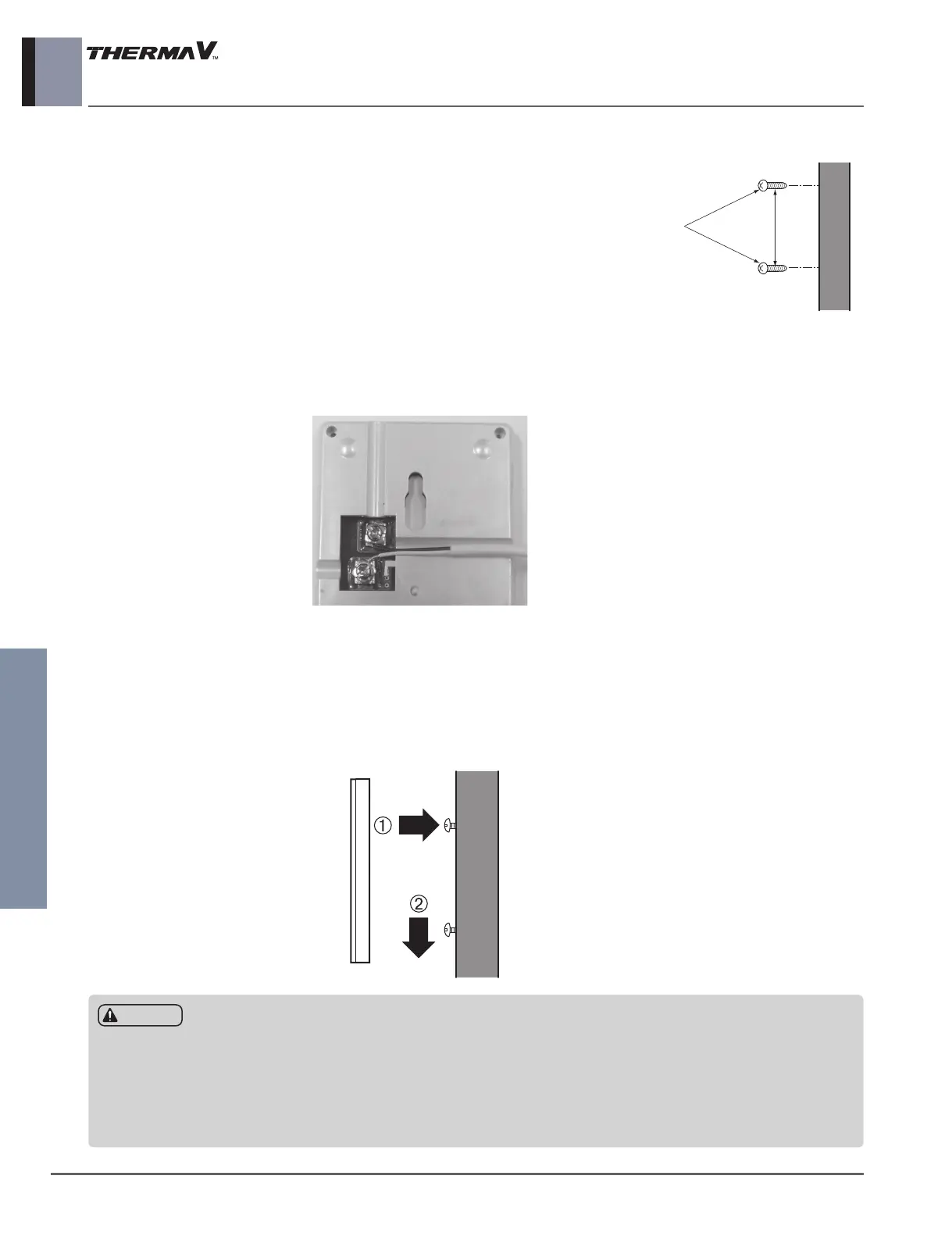

1. After deciding where the remote temperature sensor is installed, decide
the location and height of the fixing screws.
(Interval between the screws : 60mm)
2. Insert the connector of the connection wire into the space for the
connector in place of the room temperature sensor. (CN_ROOM)
3. Separately, set the option code of the attached controller on the indoor
unit.
2.2.2 How to connect the remote temperature sensor and the connection wire
The Connection wire does not matter if you change the color of the wire because of non-polar
2.2.3 How to install the remote temperature sensor on the wall
Integrate the remote temperature sensor with the screws as the order of arrows.
1. Choose the place where the average temperature can be measured for the place the indoor unit operates.
2. Avoid direct sunlight.
3. Choose the place where the cooling/heating devices do not affect the remote sensor.
4. Choose the place where the outlet of the cooling fan do not affect the remote sensor.
5. Choose the place where the remote sensor isn’t affected when door is open.
To Next Page
