Installation
32
Hydro Kit
Installation of Wired Remote Controller

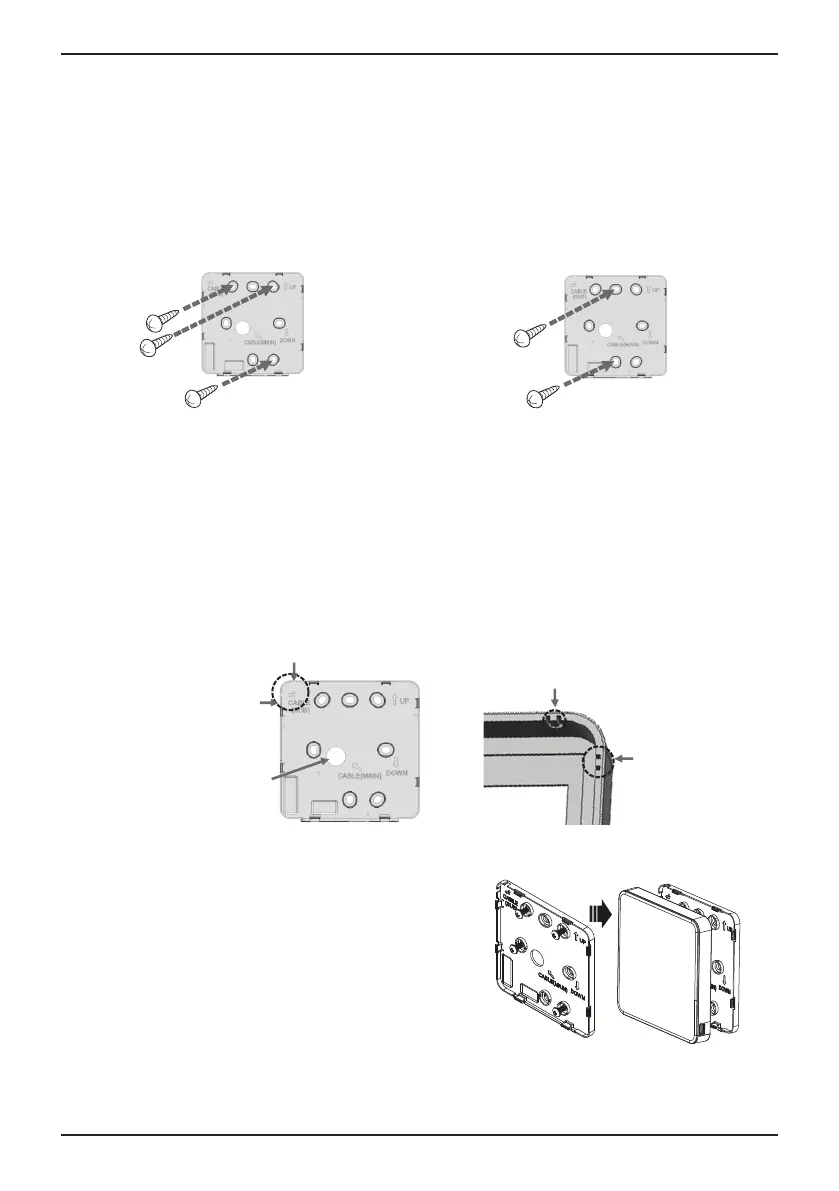

1. Please fix tightly using provided screw after placing remote controller setup board on the
place where you like to setup.
- Please set it up not to bend because poor setup could take place if setup board bends.
Please set up remote controller board fit to the reclamation box if there is a reclamation box.
- Install the product so as not to make a gap with the wall side and to prevent shaking after the
installation.
2. Can set up Wired remote controller cable into three directions.
- Setup direction: the surface of wall reclamation, upper, right
- If setting up remote controller cable into upper and right side, please set up after removing
remote controller cable guide groove.
h
Remove guide groove with long nose.
- Reclamation to the surface of the wall.
3. Please fix remote controller upper part into the
setup board attached to the surface of the wall,
as the picture below, and then, connect with
setup board by pressing lower part.
- Please connect not to make a gap at the remote
controller and setup board’s upper and lower, right
and left part.
- Before assembly with the installation board, arrange
the Cable not to interfere with circuit parts.
<4 socket reclamation box installation> <2 socket reclamation box installation>
ڹ Top side guide groove
ڹ Top side guide groove
ڸWall reclamation
ںRight side guide
groove
ںRight side guide
groove
To Next Page
