LG LAS950M - Main - Memory Circuit Diagram

2-442-43
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
MEMORY
EAX66206501 Rev1.3(11) MAIN(#3)
2014.12.10

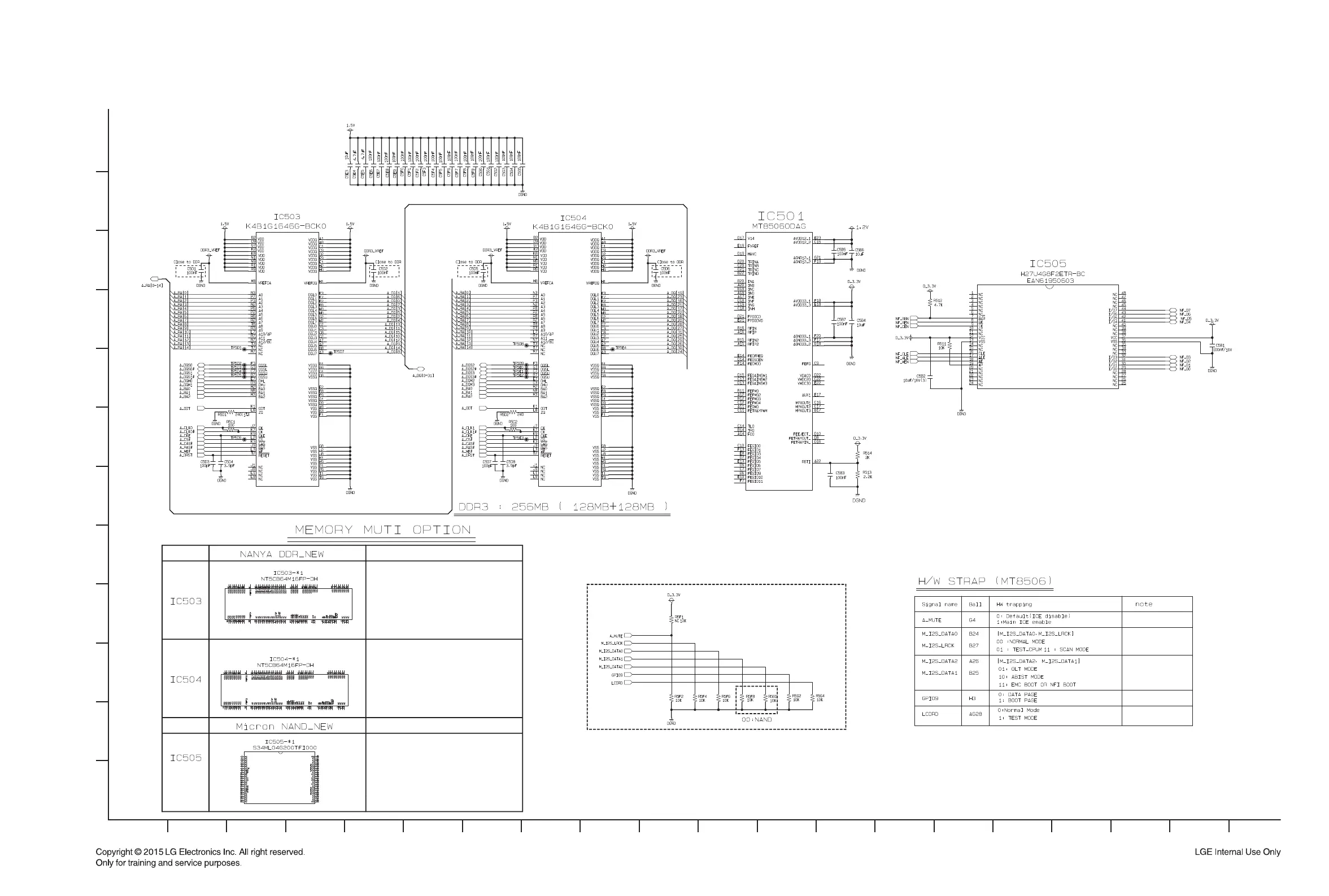

4. MAIN - MEMORY CIRCUIT DIAGRAM
