LG LDG3016ST Service Manual

3-8
COMPONENT ACCESS

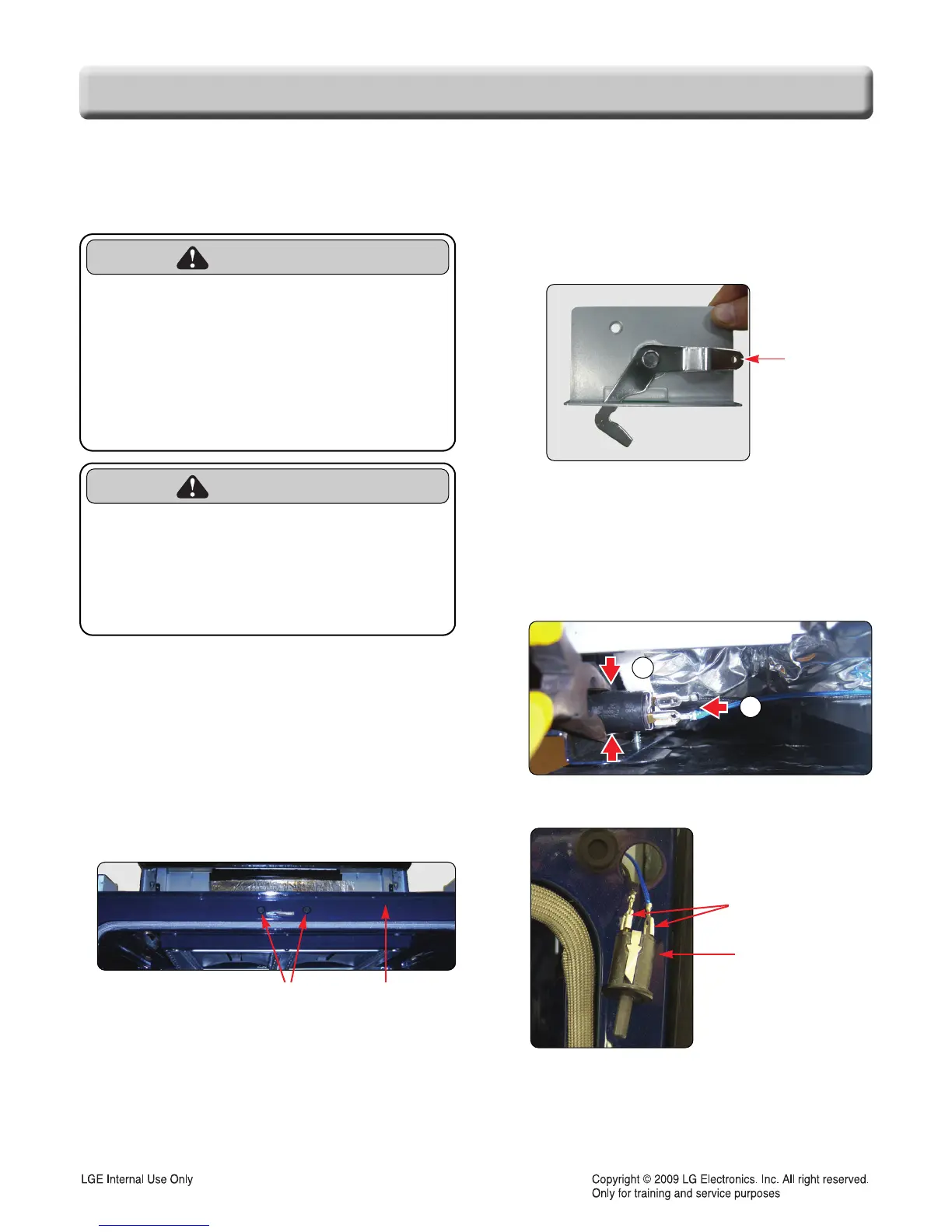

REMOVING THE DOOR LA
REMOVING THE DOOR LA
TCH & UPPER DOOR SWITCH
TCH & UPPER DOOR SWITCH
(For the Upper oven only)
(For the Upper oven only)
b) Remove the door latch from the Upper cavity
and unhook the actuating rod.
5. To remove the door switch:
a) Remove the door switch from the range.
To do this, squeeze tabs and use a long nose
plier or a snapring plier, and tap it out of the
hole with a hammer.
b) Disconnect the wires from the terminals.
2 Screws
Front plate
Wires
Door
Switch
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• Be careful when you work on the
gas range handling the sheet metal
part.
- Sharp edge may be present and you can cut
yourself.
1. Turn off the electrical supply and gas supply
going to the range.
2. Remove the Upper door.
(See page 3-18 for the procedure)
3. Remove the cooktop plate, manifold and the
case assembly (see page 3-5 for the procedure).
4. To remove the door latch:
a) Remove the two screws form the front plate
and remove the latch.
1
2
Unhook
Actuating
Rod
