3-9
COMPONENT ACCESS
REMOVING THE DOOR LA
REMOVING THE DOOR LA
TCH & LOWER DOOR SWITCH
TCH & LOWER DOOR SWITCH
(For the Lower oven only)
(For the Lower oven only)
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• Be careful when you work on the
gas range handling the sheet metal
part.
- Sharp edge may be present and you can cut
yourself.
1. Turn off the electrical supply and gas supply
going to the range.
2. Remove the Upper & Lower door.
(See page 3-18, 3-19 for the rocedure)
3. Remove the cooktop plate, manifold and the
case assembly (see page 3-5 for the procedure)
4. Remove the Side panaels.
(See page 3-25 for the procedure.)

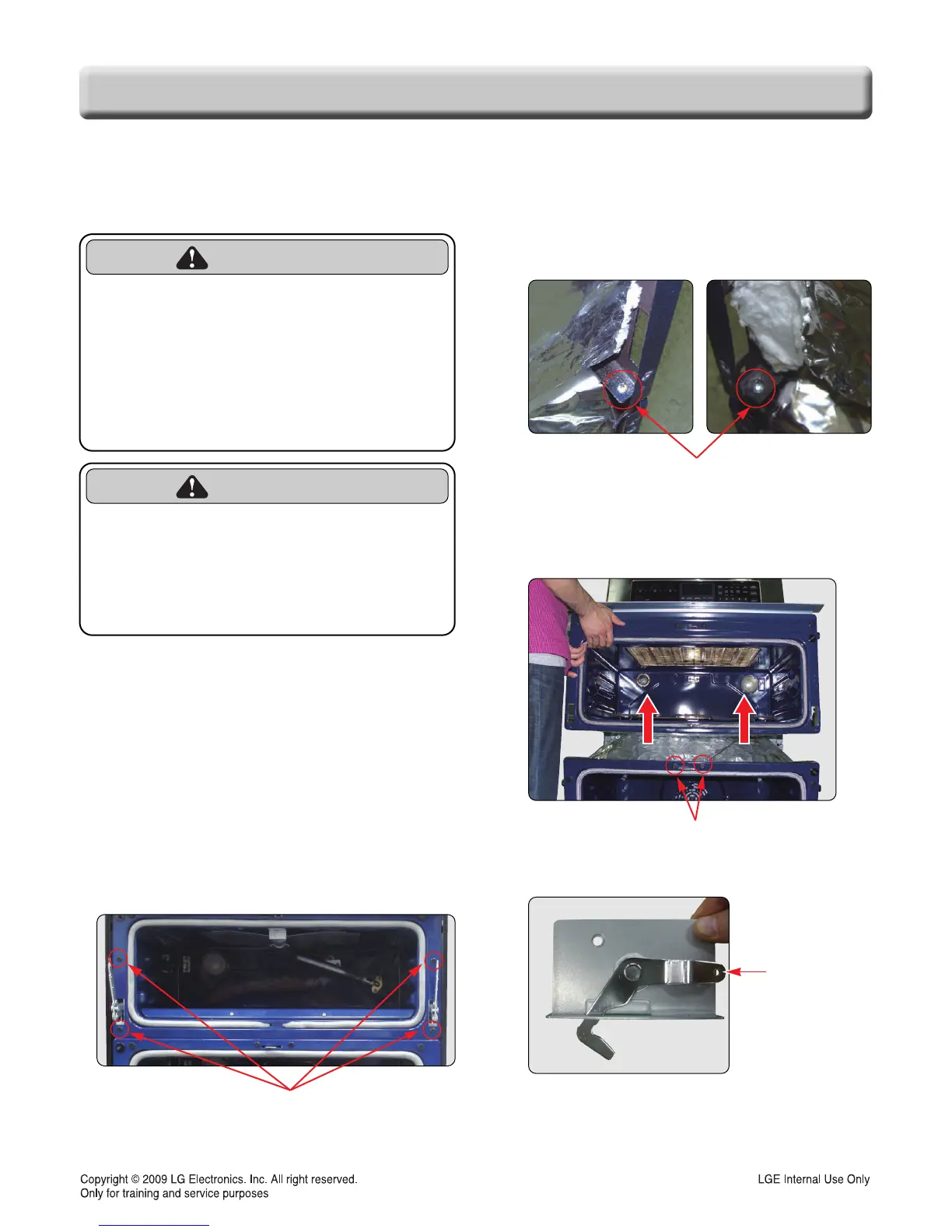

5. To remove the Lower door latch.
a) Remove 4 screws to detach 2 hinge
supporters of Upper oven
b) Remove 2 screws to widen the space between
Upper & Lower cavities.
c) Tilt the Upper cavity cautiously, make sure that
the controller does not fall down the floor.
d) Remove 2 screws to replace the lower latch.
f) Pull out the Lower latch from the bar.
4 screws
2 screws
Unhook
Actuating
Rod
2 screws
To Next Page
