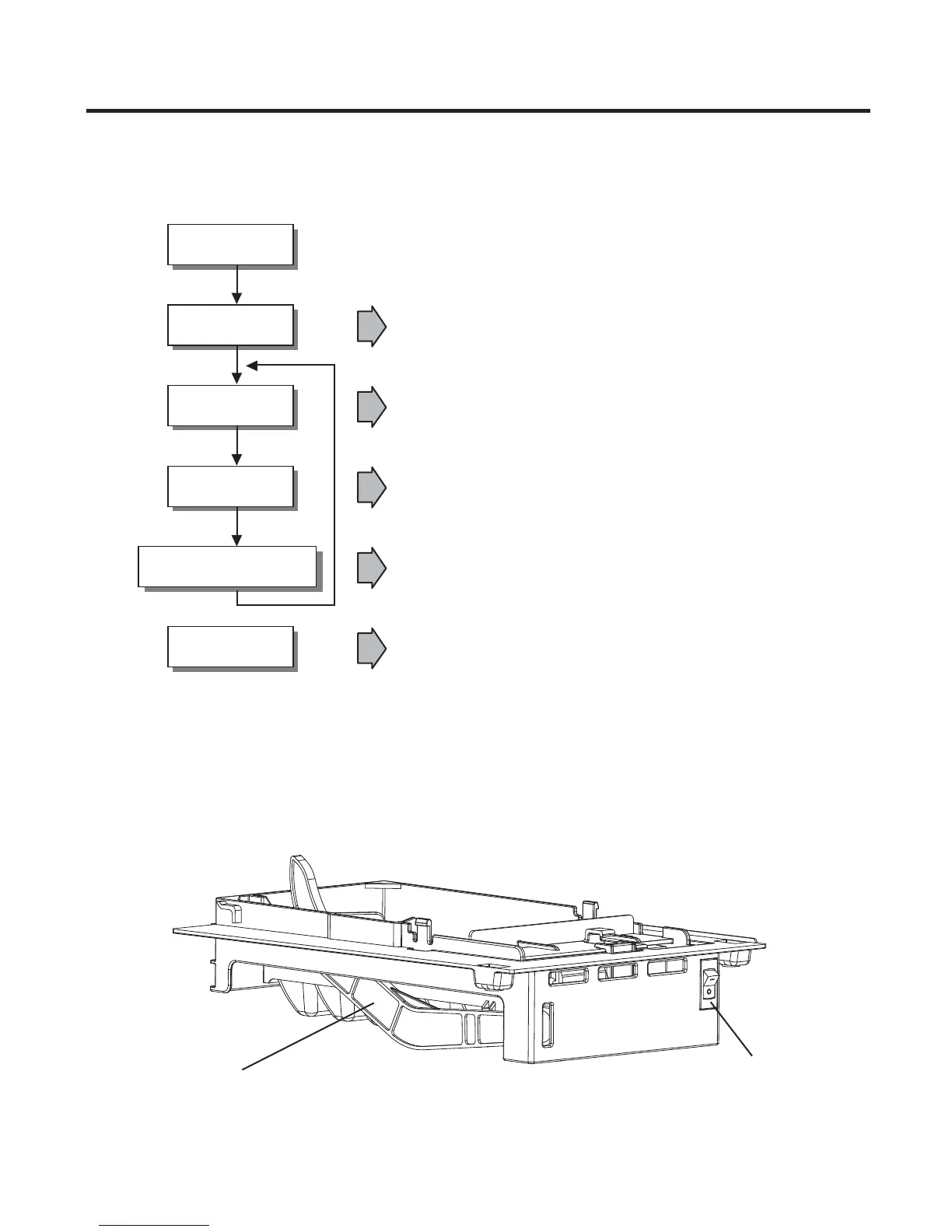

12-1 Operation Principle
ICE MAKER AND DISPENSER WORKING PRINCIPLES AND REPAIR
1. Turning the Icemaker stop switch off (O) stops the Icemaking function.
2. Setting the Icemaker switch to OFF and then turning it back on will reset the Icemaker control.
Power
Switch
Feeler
Arm
12. ICE MAKER AND DISPENSER
Initial Control
Icemaking
Control
Water supply control
TEST Control
Power Input
Ice Ejection
Control
• Check ice bucket is full of ice by rotating Feeler Arm motor in
normal and reverse direction and eject ice into the ice bucket if ice
bucket is not full.
• Adjust Ejector to with power on.Start Position
• Waits until water in the TRAY is frozen after Ice Maker starts
operation.
• Performs after supplying water by operating the
SOLENOID in ICE VALVE.
Icemaking Mode
• To operate LINE and SERVICE, press and hold the for 3
seconds. The icemaking will run through 3 stages:
.
Fill Key
Harvest Fill Icemaking
→→
52
