COMPONENT ACCESS

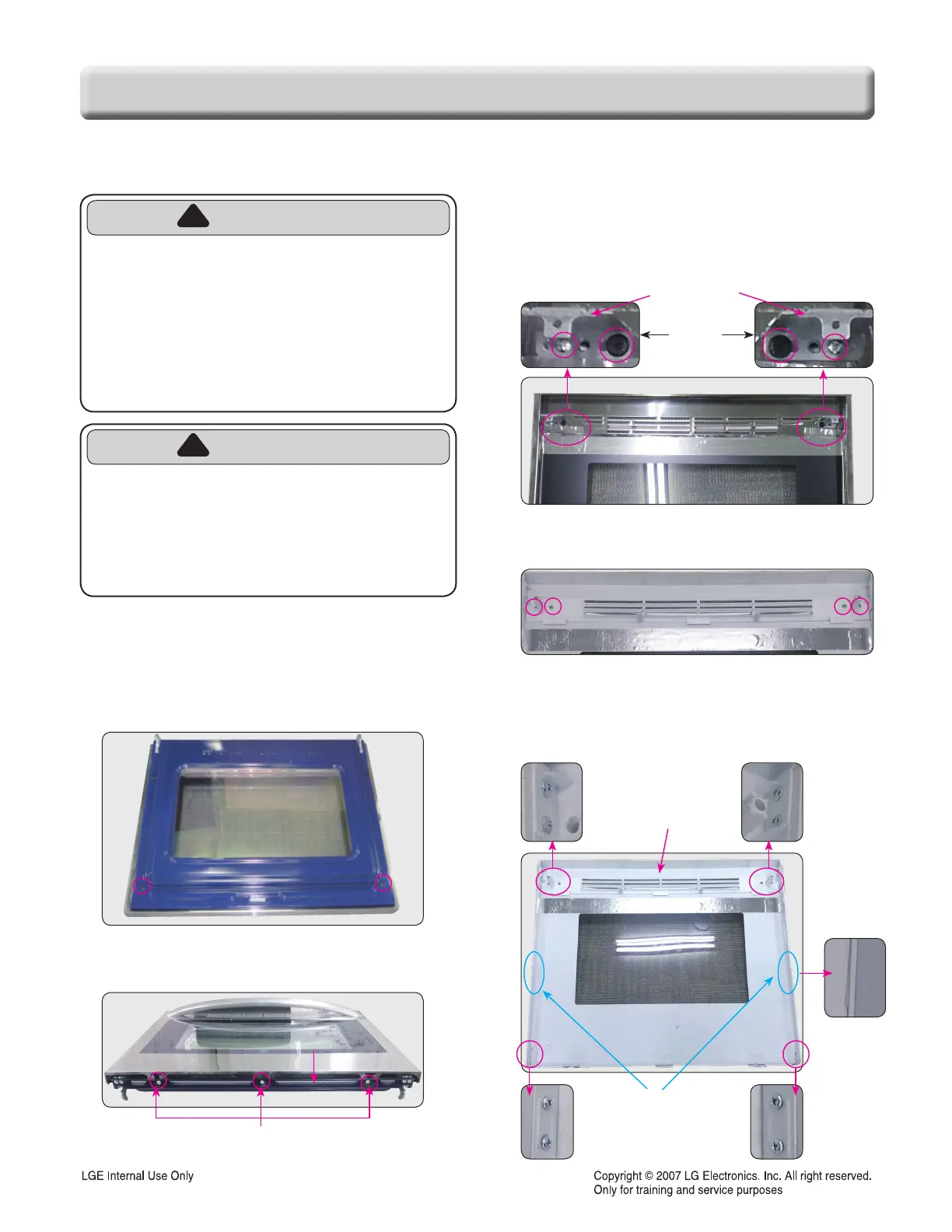

REMOVING THE OVEN DOOR HANDLE
1. Remove the oven door from the range
(See page 3-14 for the procedure).
2. Place the oven door on a padded work surface
with the front glass facing down.
3. Remove 2 screws.
4. Turn the door over. Remove 3 screws from the
door cover assembly and detach the bracket
5. Lift the door cover assembly out and put it down.
6. To remove the door handle for stainless models.
-
Remove 4 screws from door bracket and the handle
can be detached from the door cover assembly.
7.
To remove the door handle and glass for color models
a)
Remove 4 screws and the handle can be detached.
b) Remove 8 screws and detach the glass
supporters and door deco.
Note: There are 2 double sided adhesive tape
on the glass. Be careful when removing
the supporter from glass.
Handle
screws
Door bracket
Door Cover assembly
3 bottom liner screws
Bracket
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• Be careful when you work on the
electric range handling the sheet
metal part.
- Sharp edge may be present and you can cut
yourself.
Door deco
Double sided
adhesive tape
To Next Page
