COMPOSITION OF CONTROL

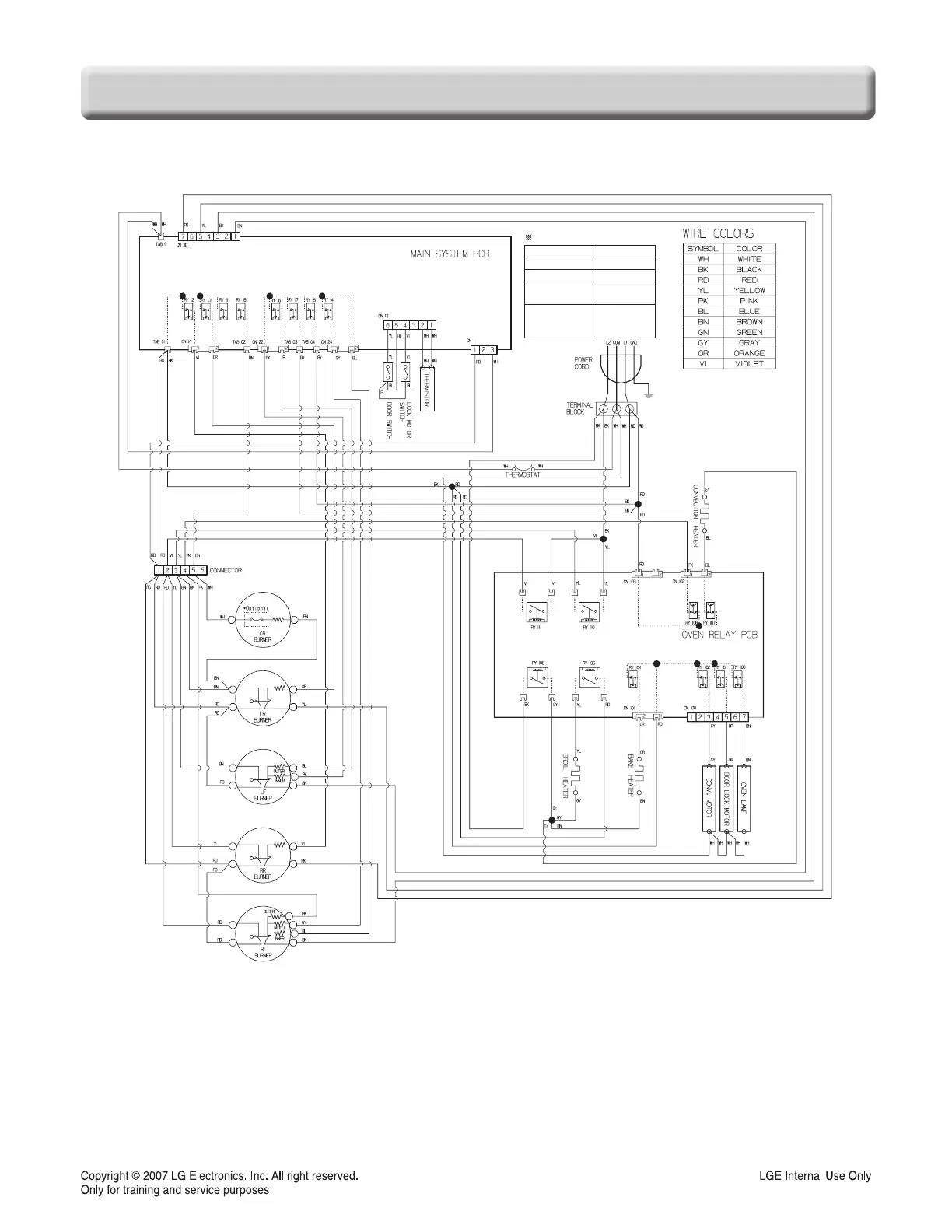

Wiring Diagram
RADIANT COOK-TOP
WattageΩ
RR:1200W
approx.47Ω
approx.47Ω
approx.50Ω
approx.68.3Ω
approx.50Ω
LR:1200W
LF:
1400W(Inner) approx.41Ω
1800W(Outer) approx.32Ω
LF:
1100W(Single)
2200W(Dual)
3000W(Triple)
