1. Refer to page 3-8 for the servicing procedure
2. Set the Multiple meter scale to the R x 1
3. Disconnect wires from cook-top elements

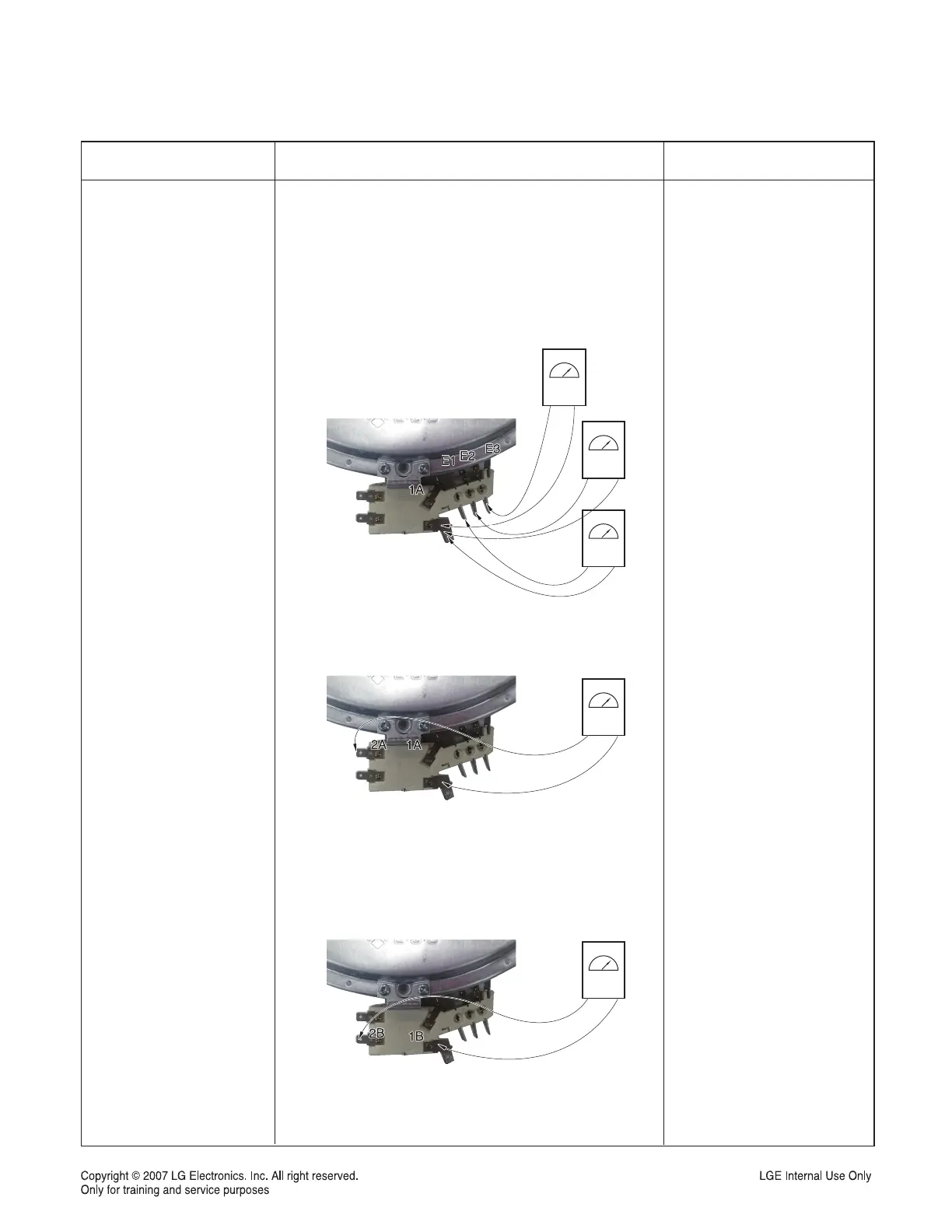

4. Touch the ohmmeter test leads to the (E1 & 1A)
and (E2 & 1A) and (E3 & 1A)
The meter should indicate.
- (E3 & 1A) M 70.5 Ω ± 10%
- (E2 & 1A) M 50.0 Ω ± 10%
- (E1 & 1A) M 49.5 Ω ± 10%
5. Touch the ohmmeter test leads to limiter terminals
1A and 2A.
The meter should indicate continuity(0Ω)
Triple surface unit:
Right Front(RF) Element
Components Test procedures Results
Normal: Approximately 67 Ω
Normal: Approximately 48.5 Ω
Normal: Approximately 50 Ω
Normal: Continuity
(below 0.5 Ω)
If not replace
Below 150˚F
M open circuit(infinite).
Above 150˚F
M continuity (0 Ω)
4-6
6. Touch the ohmmeter test leads to limiter terminals
1B and 2B. With the temperature below 150 ˚F, the
meter should indicate an open circuit(infinite).
With the temperature above 150 ˚F, the meter
should indicate continuity (0Ω).
