5. HOW TO CONTROL THE AMOUNT OF
WATER SUPPLIED TO ICE MAKER
2) Turn on the electricity after connecting water pipe.
1) Press the test switch under the icemaker for two seconds as
shown below.
2) The bell rings (ding ~ dong), the ice tray rotates, and water
comes out the icemaker water tube.
3) The water is supplied into the tray two or three times. The
amount is small each time. Put a container under the ice tray
and press test switch.
4) When the ice tray rotates, the water in it will spill. Collect the
spilled water and discard it.
5) When ice tray has finished rotation, water comes out the
water tube. Check the amount that goes into the ice tray.

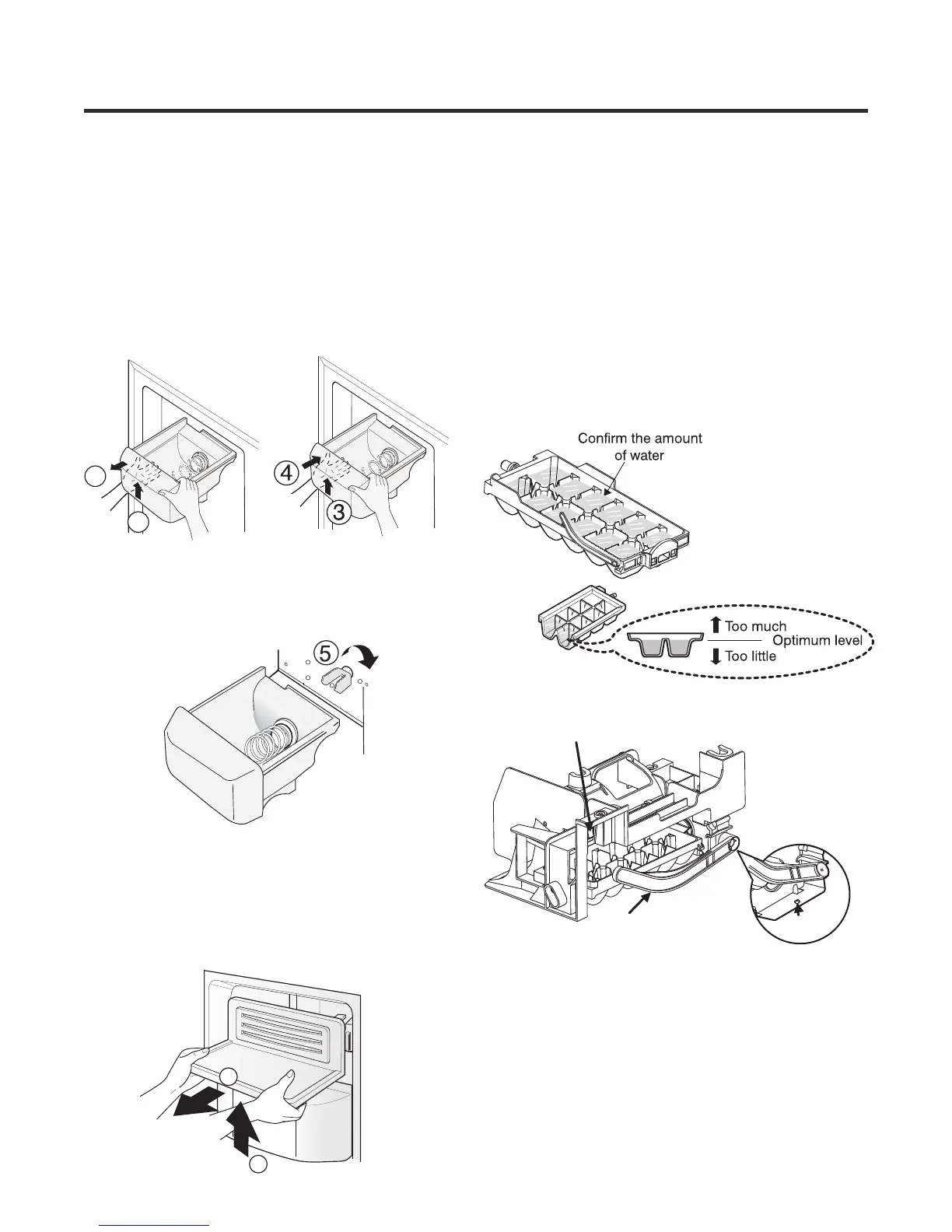

(Refer to the drawing below. The optimum amount is 110cc.
(Almost 4 oz.)).
* It is acceptable is the adjusted water level is less than the
optimum level.
• To assemble the ice storage bin, push it int while
slightly lifting it .
NOTE: Use both hands to remove the ice bin to avoid
dropping it. If the ice bin does not slide into place easily,
twist the drive device slightly.
• Hold the ice storage bin as shown in the right figure
and pull it out while slightly lifting it .
1. DISASSEMBLY ICE STORAGE BIN
1
2
2. DISASSEMBLY ICEMAKER
If you need acces to the Icemaker, follow these steps:
• Lift the ice shelf as shown in the right figure and
pull it out .
COVER
Feeler Arm
Power Switch
ON/OFF
(On the lower
part of icemaker)
switch
Test
- 9 -
Make sure it is fully engaged into the auger drive .
1
2
To Next Page
