4. FAN SHROUD GRILLE
5. ICEMAKER ASSEMBLY
1. Loosen one screw with a screwdriver blade.
2. Disassembly of an upper grille fan: Hold upper part of an
upper grille fan (U) and pull forward carefully.
3. Disassembly of a lower grille fan: Hold upper part of a
lower grille fan and pull forward carefully.
4. Disassembly of an upper freezer shroud: Hold lower part,
pull forward and disconnect housing A and B.
5. Check for foam sticking conditions around a shroud,
upper freezer and lower freezer during assembling. If
damaged torn, or badly stuck, assemble with a new one afer
sealing well.
1. Dispenser Model
1) How to disassemble:
(1) Remove ice bin from the freezer compartment.
(2) Loosen the screw on the upper part of icemaker bracket.
(3) Disconnect icemaker bracket so that it can slide forward.
(4) Disconnect icemaker housing and sensor housing.
(5) Disconnect icemaker horizontally by pressing bracket hook
part. (Don’t disassemble further. The set value may be
changed).
2) The assembly is the reverse order of the above disassembly.

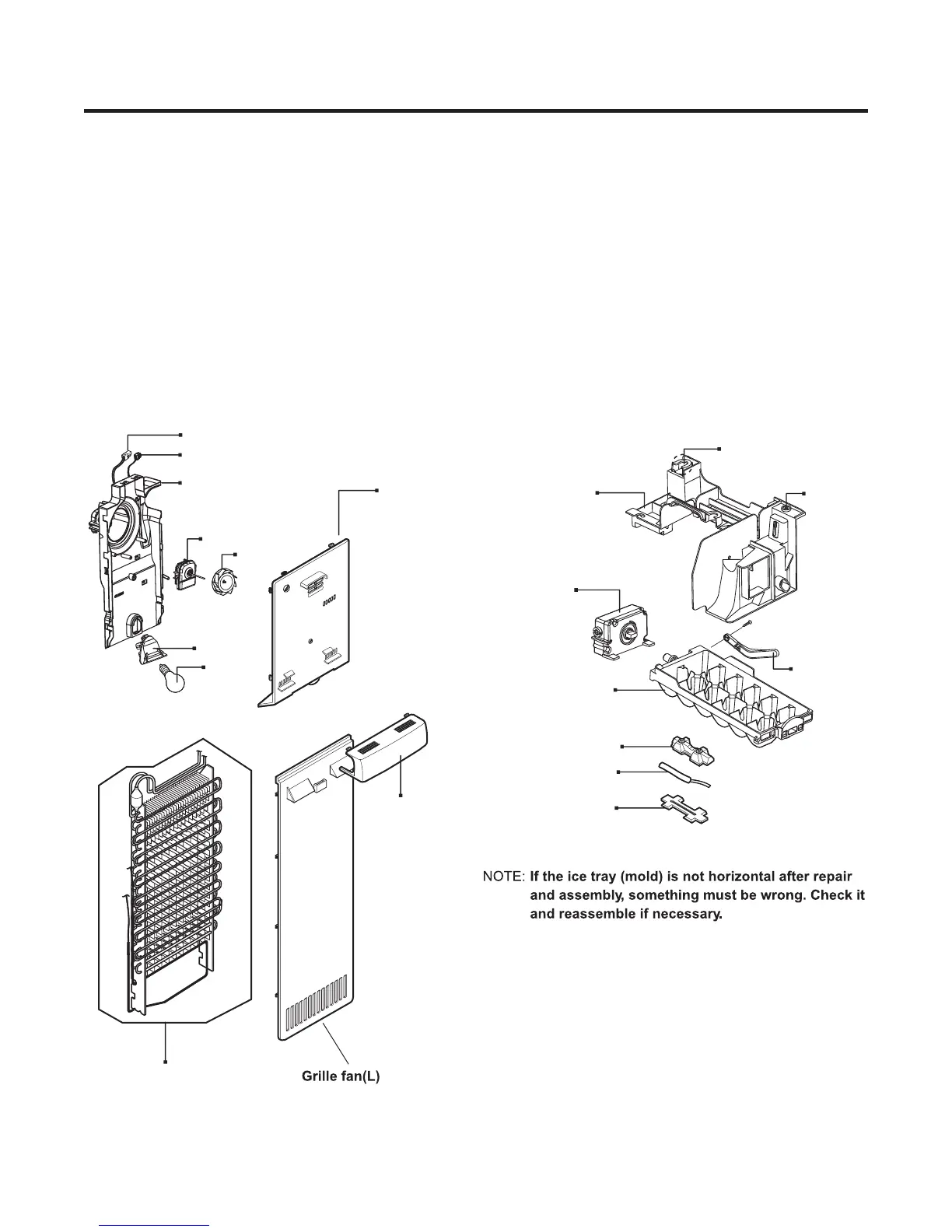

Hook
- 14 -
Icemaker Bracket
Icemaker unit
Ice Tray
Insulation
Sensor
Sensor Cover
Lever
Bracket
screw
Shroud F(U)
Housing B
Housing A
Grille Fan
(U)
Motor
Fan
Socket
Lamp
Cover Lamp
Evaporator
