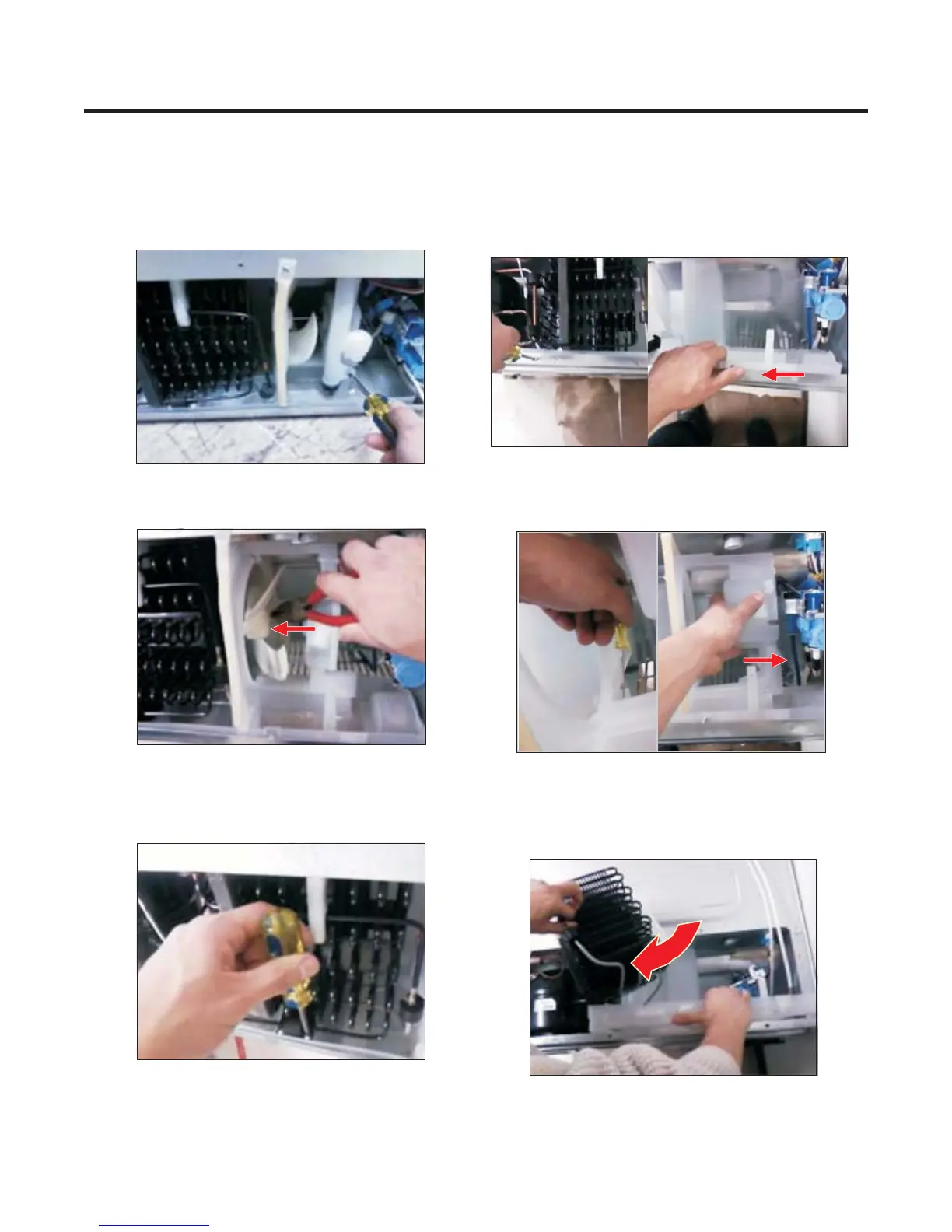

9. TRAY DRIP DISASSEMBLY
1. Remove guide fan and drain pipe screws using a phillips
screwdriver.
2. Remove fan motor by pushing fan motor in direction of
arrow.
3. Remove screws from wire condenser bracket. Use phillips
screwdriver.
4. Remove screws in compressor base in order to release
tray drip.
5. Use a tool to release clips (2) in order to disassemble
guide fan (move to right).
6. Turn condenser clockwise carefully in order to remove it
from tray drip. Then remove tray drip carefully. Avoid any
damage to condenser or pipes.
- 18 -
