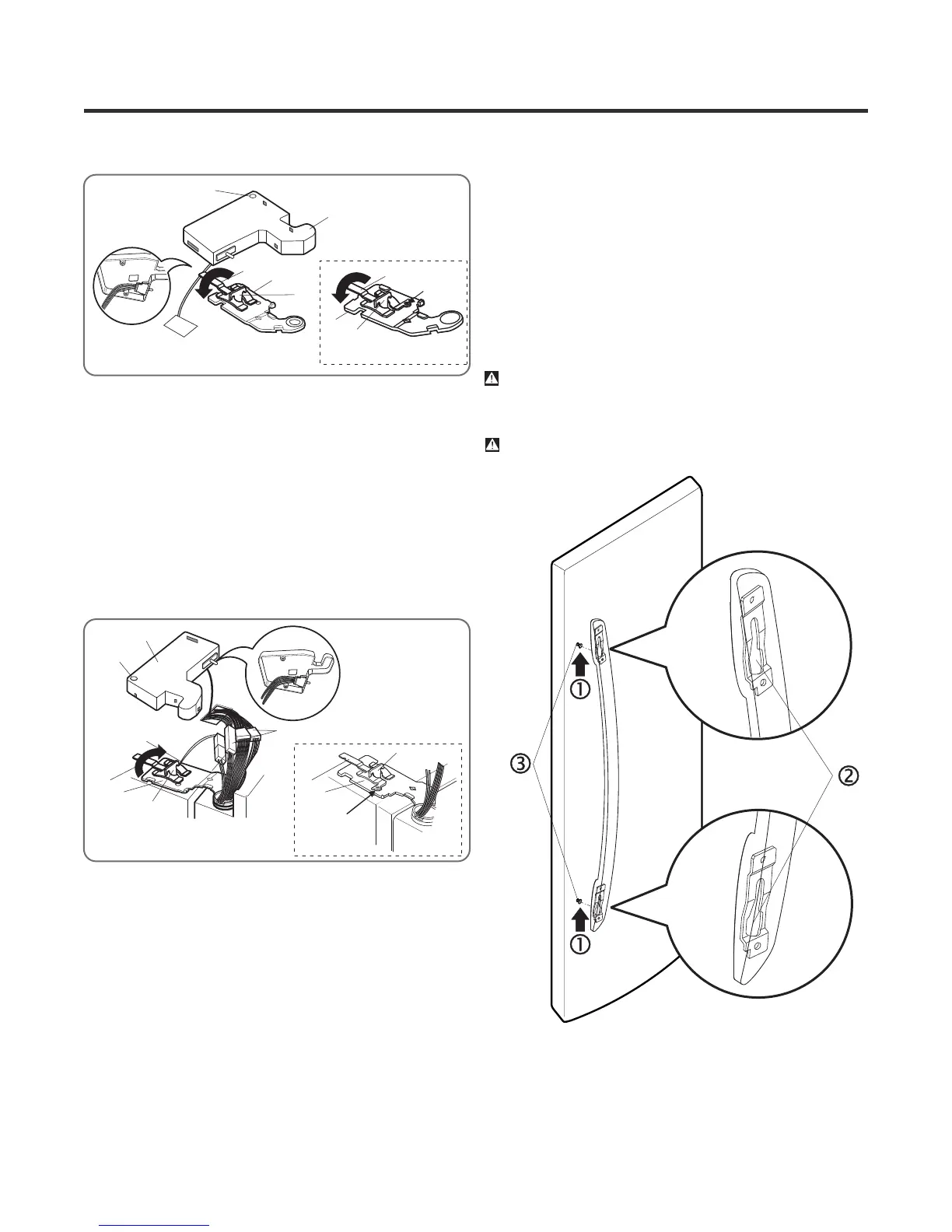

Reinstalling the right (Refrigerator) door
(1)
(2)
(3)
(4)
(5)
Type 2
Type 1
(3
)
(4)
(5)
Rivet
2. Fit top hinge (4) over hinge lever latch (5) into
place. Rotate lever (3) counterclockwise to secure
3. Hook tab on switch side of corner under edge of wire
opening in cabinet top. Position cover (2) into place.
Insert and tighten cover screw (1).
hinge.
1. Place the door onto the lower hinge pin.
NOTE: Regardless of hinge lever type. removal
process is the same.
Reinstalling the left (Freezer) door
(1)
(2)
(3)
(5)
(6)
(7)
(4)
Type 2
Type 1
(5)
(6)
(7)
Rivet
2. Fit top hinge (6) over hinge lever latch (7) and into
place. Rotate lever (5) clockwise to secure hinge
3. Install the grounding screw (4) and connect all the
wire harnesses (3).
4. Hook tab on door switch side of cover (2) under edge
of wire opening in cabinet top. Position cover into
place. Insert and tighten cover screw (1).
1. Feed the water tubes through the lower hinge pin and
place the door onto the lower hinge pin.
5. Reconnect the water tubes by inserting the tubes into
the connectors.
NOTE: Regardless of hinge lever type, removal
process is the same.
2. HANDLE REMOVAL
- 12 -
•
• The
•
Grasp the handle tigthtly with both hands and slide the
handle up (1) (this may require some force).
keyhole slots (2) on the back of the handle allow
the handle to separate from the mounting screws (3).
Then pull the handle towards you.
CAUTION: When trying to remove or install the handle
if hit wit a hammer, it could be damaged or broken.
CAUTION: When you assemble or dissasemble
handle, you must push and pull with moment force.
Keyhole slots
on back of
handle
Screws
mounted
on door
NOTE: It is ALWAYS recommended to remove the
refrigerator doors when it is necessary to move the
refrigerator through a narrow opening. If necessary,
follow the directions below to remove the door handles.
