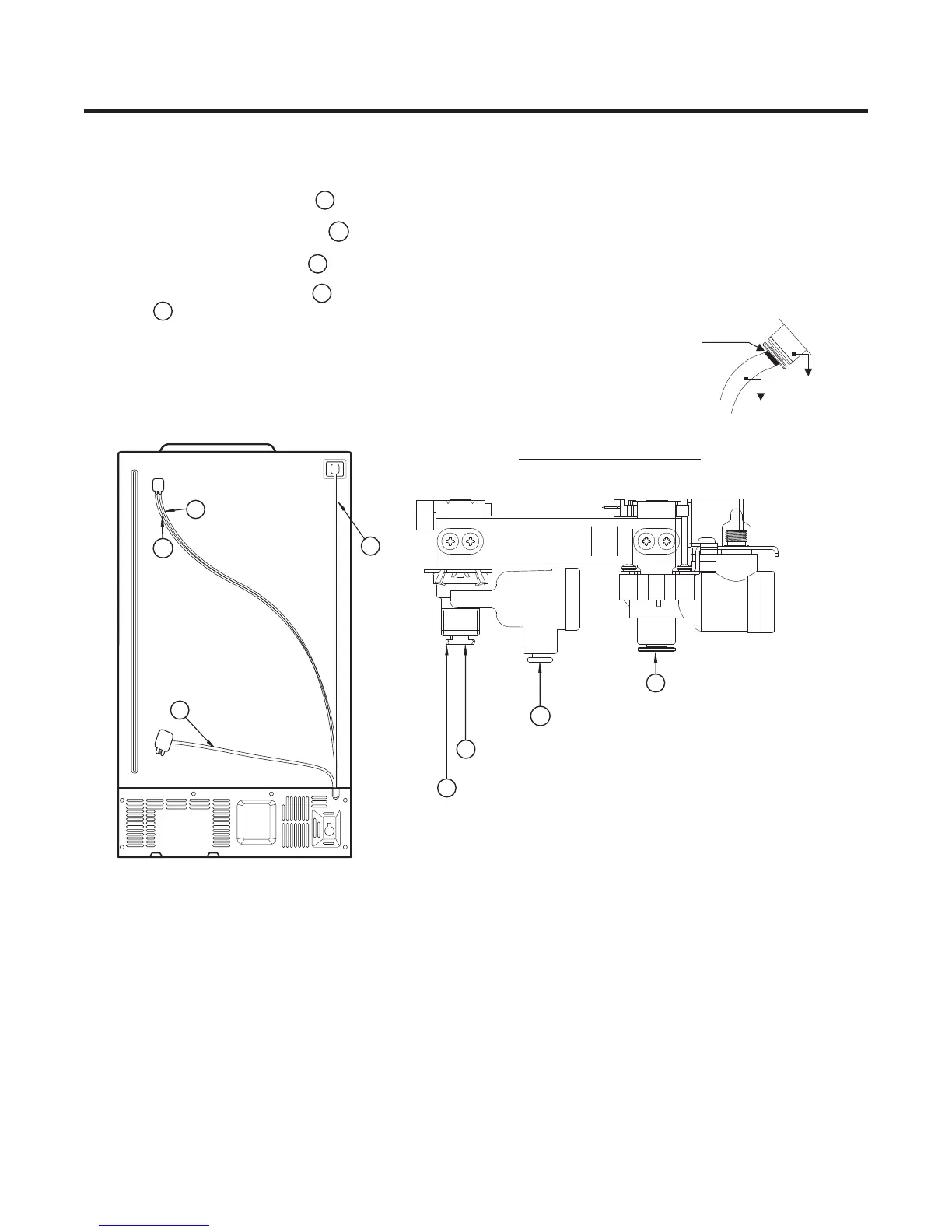

7. WATER VALVE TUBES ASSEMBLY METHOD
- 16 -
1) Connect the Water Filter tube (IN) to the water valve.
2) Connect the Water Filter tube (OUT) to the water valve.
3) Connect the Ice maker tube (IN) to the water valve.
4) Connect the Water Tank tube (IN) to the water valve.
The pipe has a Red mark on the end that connects to the water valve, make sure it is the correct tube.
NOTA: For a successful connection, insert the tubes to the water valve until you can see only a line.
1
2
3
4
4
1
3
4
2
Water Filter (IN) 5/16”
Water Filter (OUT 1/4”
Ice maker (IN) 1/4”
Water Tank (IN) 5/16”
Red mark in tube
2
1
3
4
Side View of Water Valve
Tubes
Water valve
