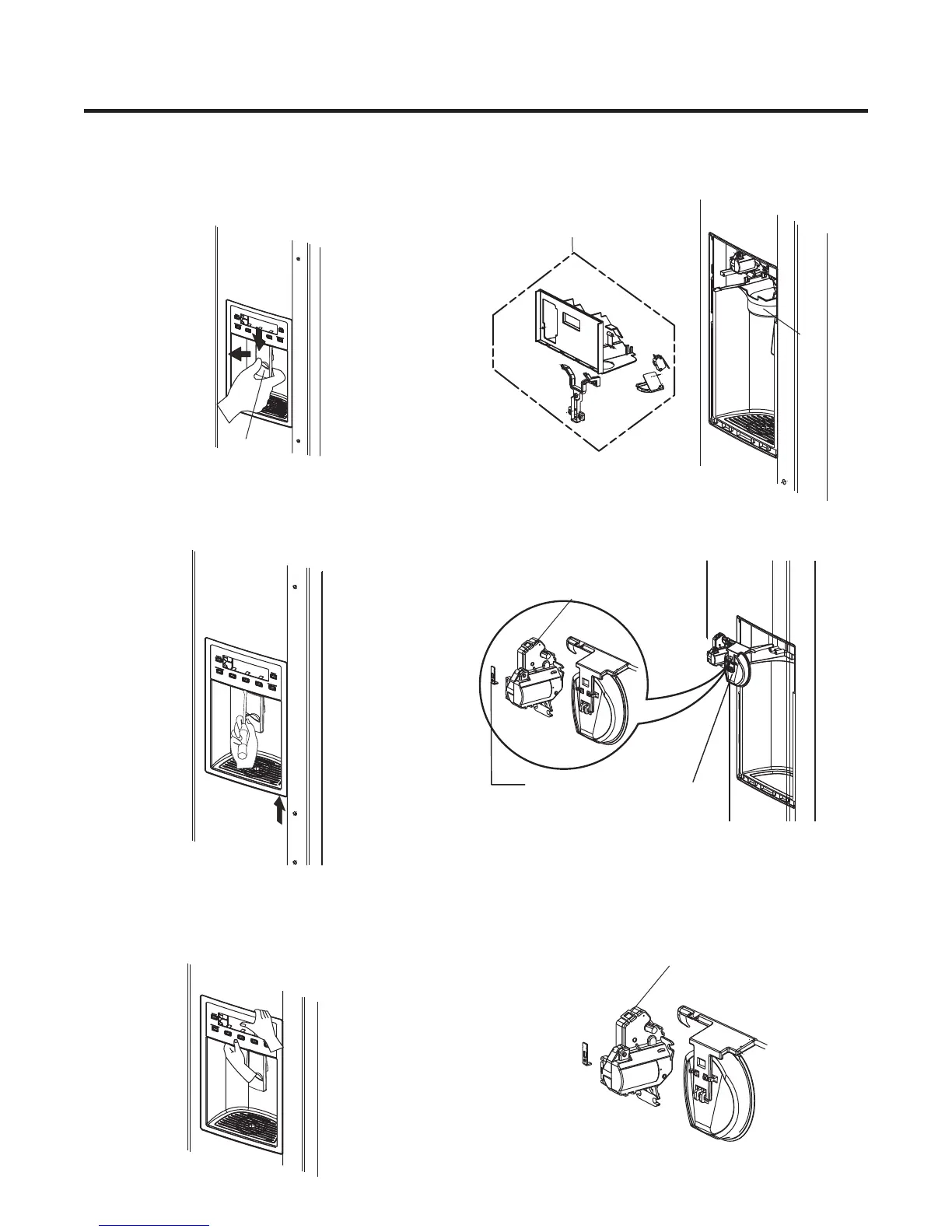

10. DISPENSER
Funnel Assembly
Funnel
Duct Cap
Assembly
Holder
Lever
Motor Assembly
Botón
Motor Assembly
1) Disconnect funnel and button assembly by pulling down
and forward.
2) Remove the display frame pulling out with both hands on
one side and repeat the process in the other side while pulling
it forward like shows the picture.
3) The display assembly can be disconnected by pressing the
top of the dispenser cover and pushing it after separating the
display frame from its housing.
4) Loosen four screws with a phillips screwdriver and pull the
funnel assembly to disconnect.
The duct cap assembly can be disconnected if the hold lever
connecting screws is loosened with a phillips driver.
6) To install the duct cap assembly, insert one end of the spring
into the right hole of the dispenser lever and insert the other
end into the right hole in the top part of the dispenser. Then
attach the holder at the solenoid switch.
- 19 -
