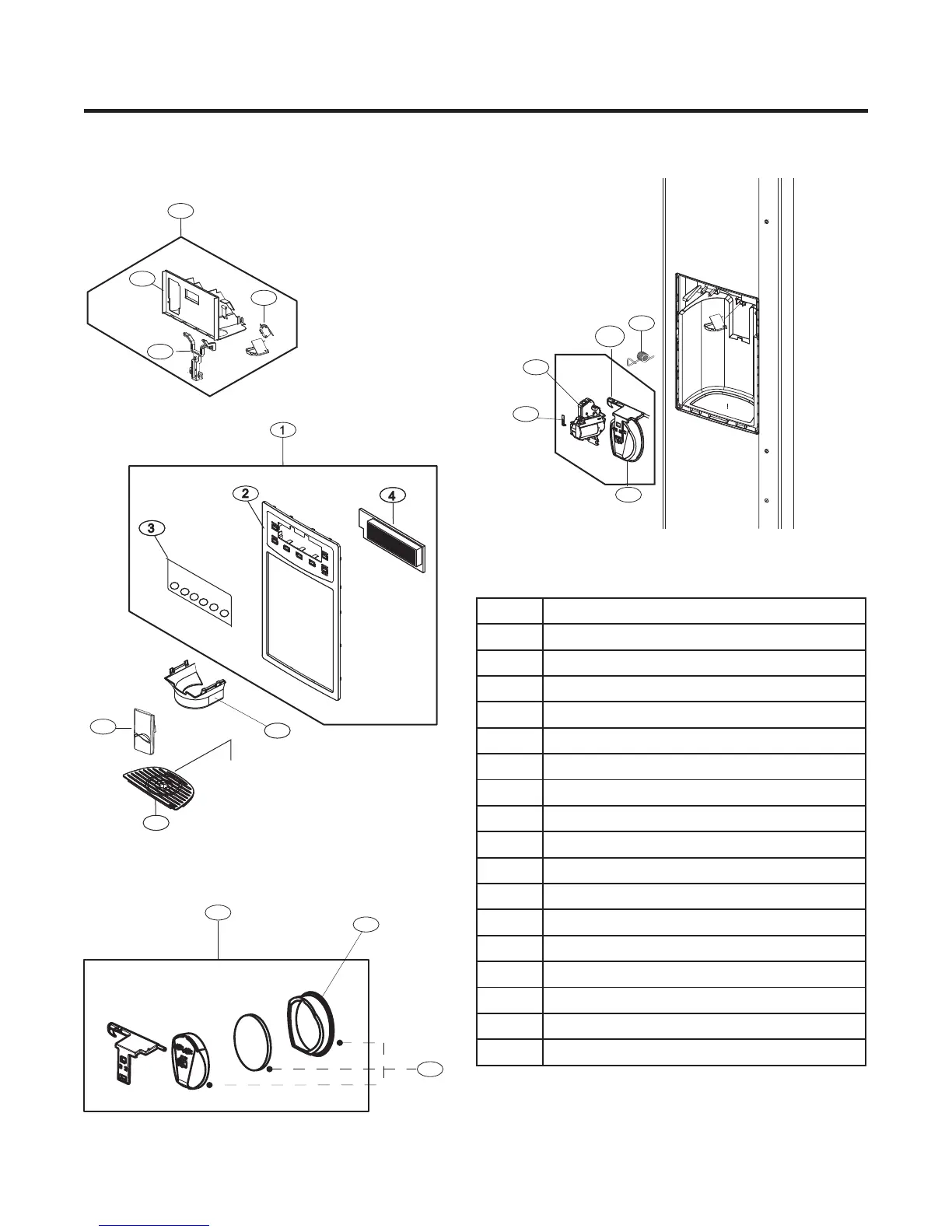

7) Dispenser related parts
18
5
6
7
8
11
12
13
16
14
15
17
1 FRAME ASSEMBLY, DISPLAY
2 COVER, DISPLAY
3 DECO, DISPLAY
4 PCB ASSEMBLY, DISPLAY
5 FRAME FUNNEL ASSEMBLY
6 SWITCH
7 FRAME, FUNNEL
8 LEVER DISPENSER (BUTTON)
9 FUNNEL
10 BUTTON LEVER
11 MOTOR ASSEMBLY
12 SPRING
13 HOLDER LEVEL
14 CAP ASSEMBLY, DUCT
15 CAP, DUCT
16 DISPENSER LEVER, (CAP DUCT)
17 RUBBER, CAP
18 DECO, DRAIN
