Parte VA1 CE1 CE2 CE3 CE4 CE5
Voltaje 110~127 V 160 Vdc 14 Vdc 12 Vdc 15.5 Vdc 5 Vdc
1. EXPLANATION FOR PCB CIRCUIT

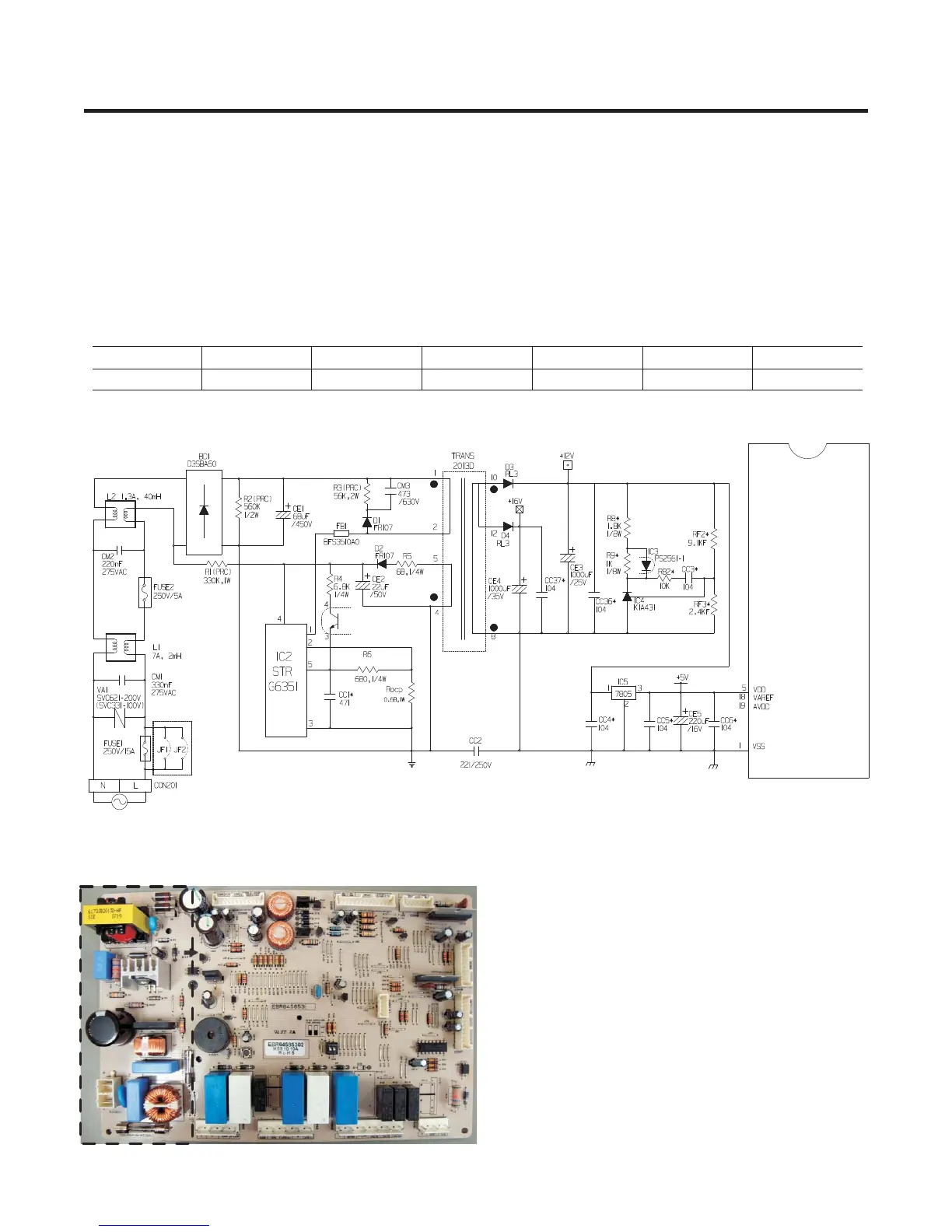

1-1. Power circuit
The power circuit includes a Switched Mode Power Supply (SMPS). It consists of a rectifier (BD1 and CE1) converting AC
to DC, a switch (IC2) switching the DC voltage, a transformer, and a feedback circuit (IC3 and IC4).
Caution : Since high voltage (160 Vdc) is maintained at the power terminal, wait at least 3 minutes after unplugging the
appliance to check the voltages to allow the current to dissipate.
Voltage of every part is as follows:
6.EXPLANATION FOR MICOM CIRCUIT
Part VA1 CE1 CE2 CE3 CE4 CE5
160 Vdc 14 Vdc 12 Vdc 15.5 Vdc 5 Vdc
Voltage 110~127 Vac
The part highlighted, are the
components of the Switched Mode
Power Supply
- 30 -
