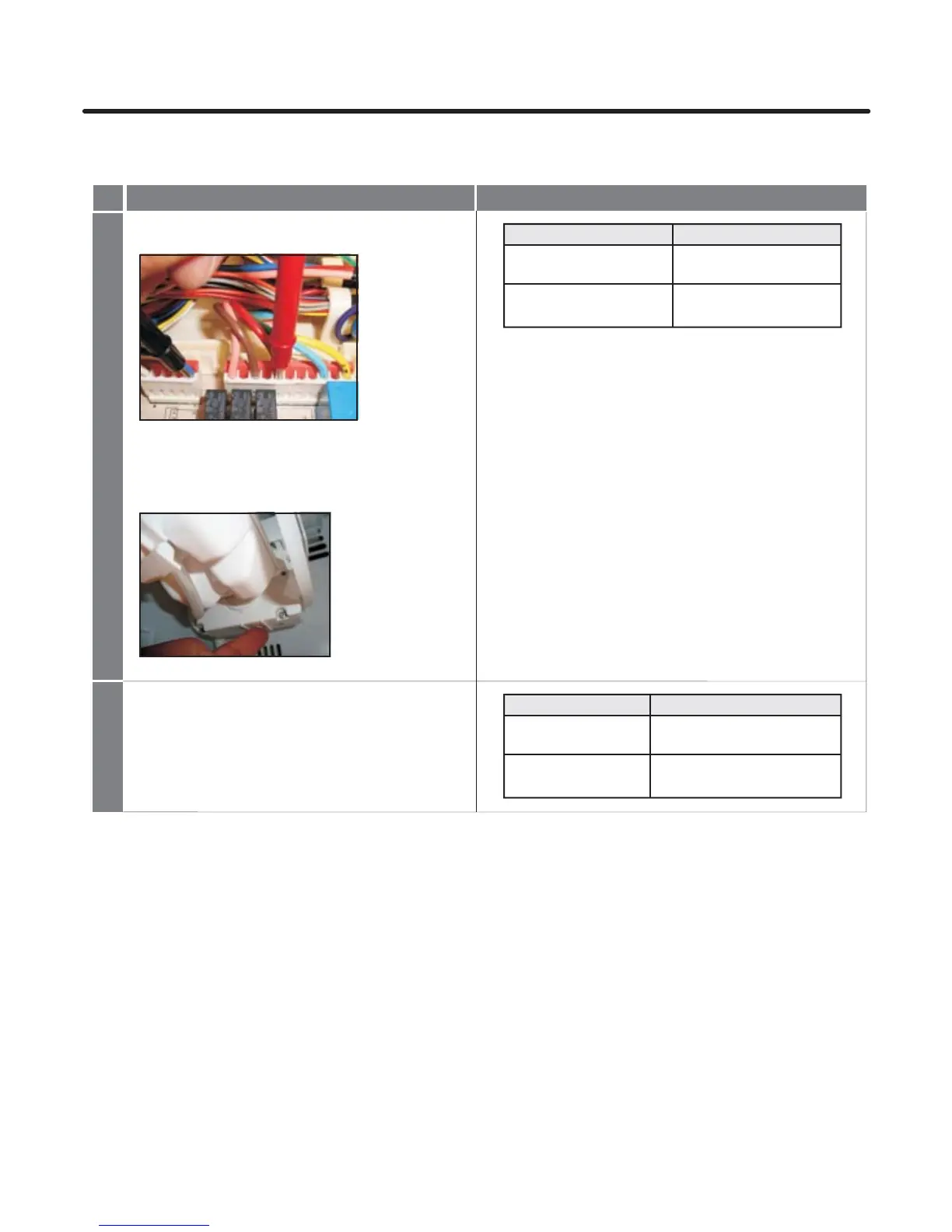

22) Refrigerator is not dispensing ice
CHECKING FLOW RESULT & SERVICE ACTION
5
6
NO.
3) Execute TEST MODE in Ice maker as is shown in
the picture (NOTE: Be sure to locate a recipient
below ice maker in order to catch the water supplied
in test mode) water supply will be activated at the
end of Test cycle.
1) Check voltage in CON 3 and CON 4 as is shown
in the picture (ICE VALVE).
4) Check the result.
Result
Service Action
Go to Step 5
110~127 Vac
Other
Replace Main PCB
In previous 2 steps, at the end of Test mode,
water was supplied?
Result
Service Action
Normal, explain to customer
YES
NO
Replace Valve assembly
- 117 -
To Next Page
