- 10 -
Corners
Fig. 37
SHROUD
GRILLE
FAN MOTOR
FAN
BRACKET

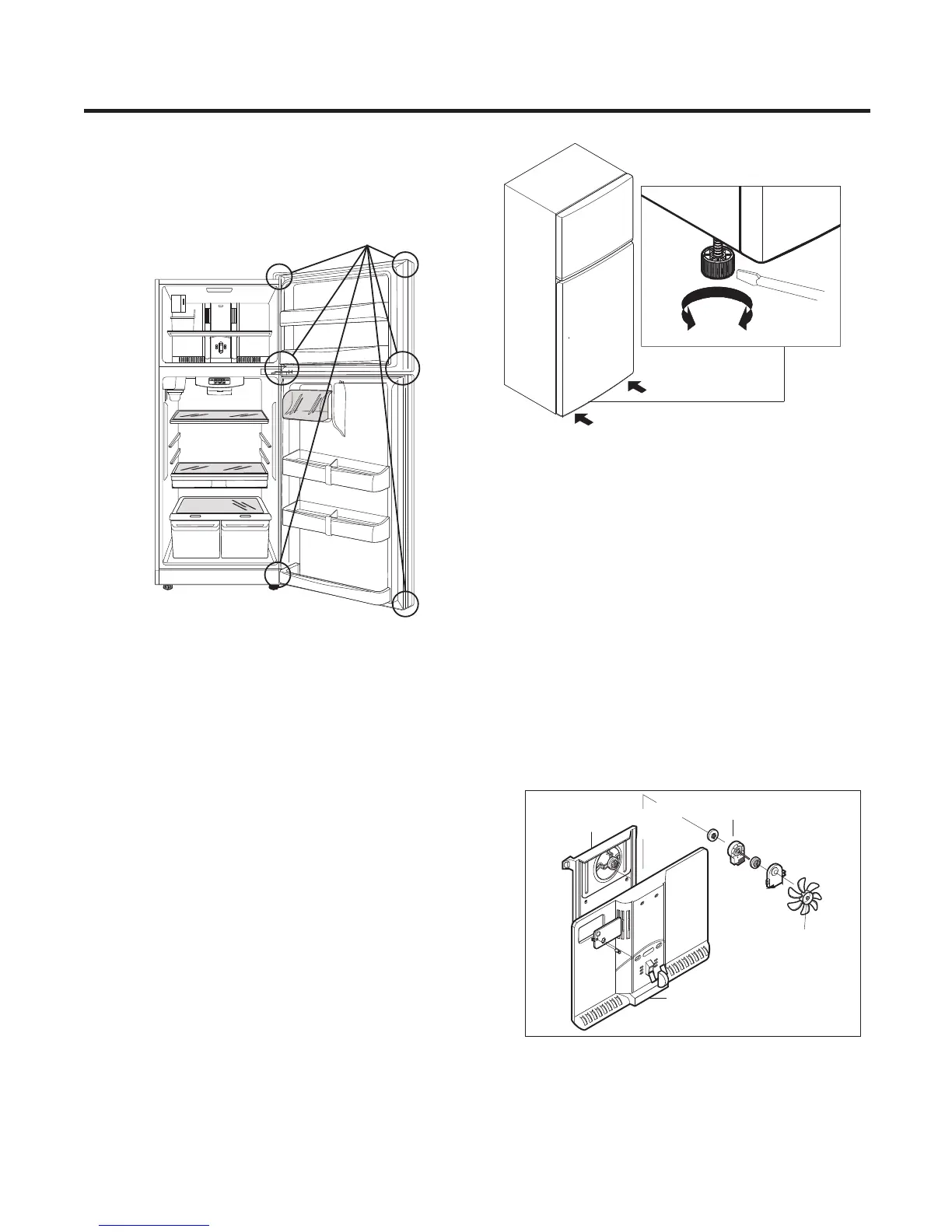

After changing the doors, make sure that the corners of the
Door Gaskets are not folded over. To ensure a good seal,
apply a small amount of silicon grease on the corners of
gaskets.
CLOSING AND ALIGNING THE DOORS
To avoid vibration, the unit must be leveled. If necessary,
adjust the Leveling Legs to compensate for unevenness of
the floor. The front should be slightly higher than the rear to
aid in door closing.
Your refrigerator has three front leveling screws, one on the
right and one on the left. If your refrigerator seems unstable
or if you would like the doors to close more easily, simply
adjust the inclination of the refrigerator by following the
instructions below:
NOTE: Third leveling screw is used for protection of hinge
lower.
1. Plug the refrigerator into a 3 prong grounded outlet. Move
the refrigerator into its final position.
2. Use a flat head screwdriver to adjust the leveling screws
(see Figure A), turning clockwise to raise the side of the
refrigerator and counter-clockwise to lower it. It may take
several turns to adjust it to the inclination you would like.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling screws. This
will make it easier to adjust the screws.
3. Open both doors again and check to make sure that they
close easily. If not, tilt the refrigerator slightly more to the
rear by turning both Leveling Screws clockwise.
It may take
several more turns, and you should turn both Leveling
Screws the same times.
Figure A
DOOR ALIGNMENT
If the space between your doors is uneven, follow the
instructions below to align the doors.
1. Gently pry off the refrigerator door Top Hinge Cover with
a flat head screwdriver and remove. Loosen the Top Hinge
Bolts using a 10 mm or 13/32inch socket wrench or
opened wrench.
2. Have a second person hold the refrigerator door in its
proper position.
3. Replace the Top Hinge Cover.
FAN AND FAN MOTOR
1. Remove the freezer shelf. (If your refrigerator has an
icemaker, unplug and remove the icemaker first).
2. Remove the screw of the grille fan.
3. Remove the grille by pulling it out.
4. Remove the Fan Motor assembly by loosening 4 screws
and disassemble the shroud.
5. Pull out the fan and separate the Fan Motor and Bracket.
To Next Page
