- 6 -
REPLACING THE REFRIGERATOR DOOR
REPLACING THE FREEZER DOOR
Fig. 8
Fig. 9
Fig. 10
Fig. 11

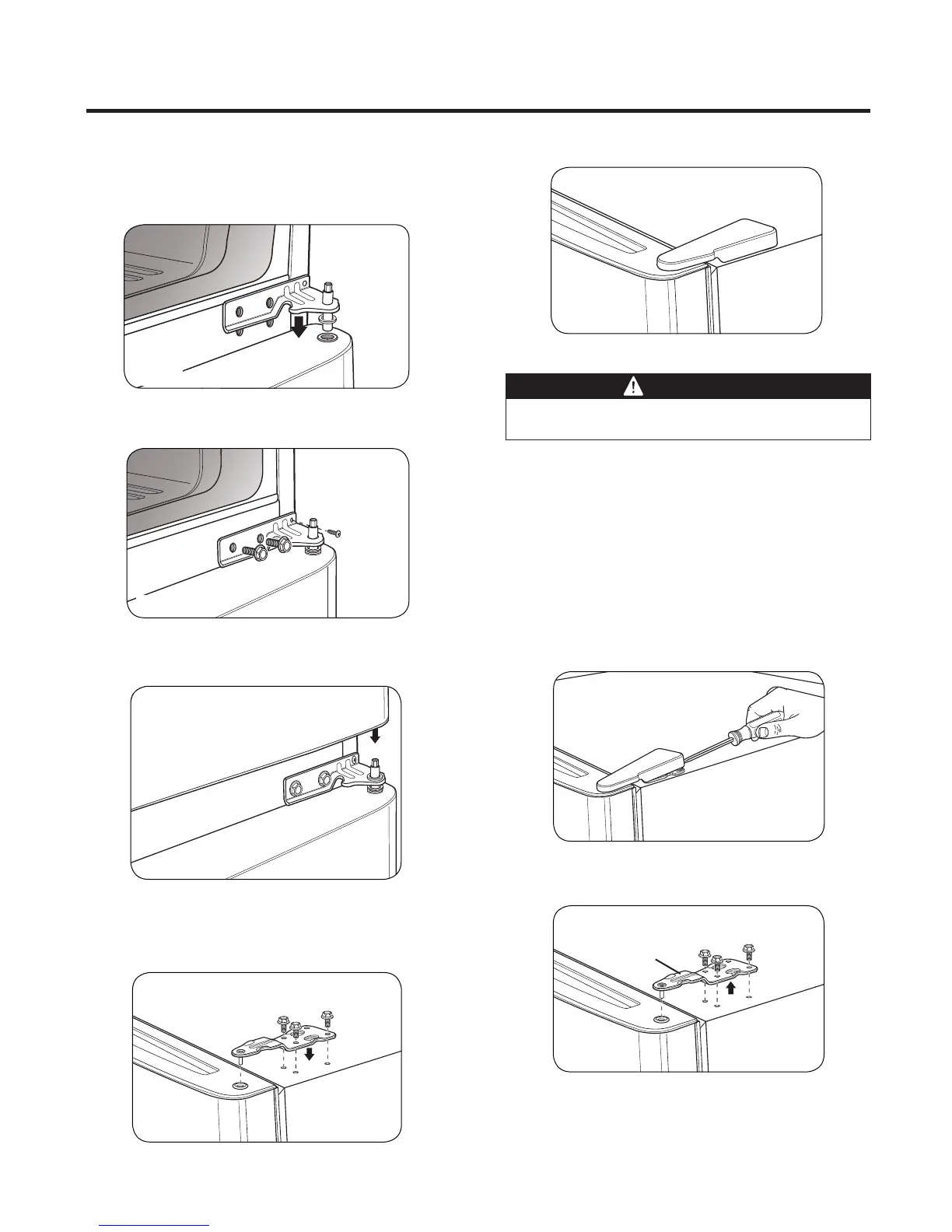

REVERSING DOORS
CAUTION
TOOLS NEEDED
REVERSING THE FREEZER DOOR
Fig. 12
Top Hinge
Fig. 13
Lower the door onto the bottom hinge pin. Place the hinge
pin of the middle hinge bracket inside of the hinge pin insert
on top of the door. Hold the door in place and line the middle
hinge bracket with the holes in the refrigerator housing.
Fig. 7
Use the two bolts and phillips screwdriver to refasten the
middle hinge bracket and door to the refrigerator housing.
Set the freezer door onto the Middle Hinge pin.
Place the upper hinge pin in the top of the freezer door and
line up the upper hinge with the holes on top of the
refrigerator. Use the three bolts to replace the hinge.
Carefully force-fit the top hinge cover back into place over
the hinge.
Remove food and any Adjustable Shelves or Door Bins
from doors. Failure to do so could result in serious injury.
for bottom door hinge).
Gently pry off the top hinge cover with a flat head screw-
driver and remove.
three bolts and lift off the top hinge. Set parts aside.
To Next Page
