- 7 -

Middle Hinge Bracket

Hinge Pin

Fig. 14

Door Closer / Stop

Fig. 15

Hinge Pin

Insert Bracket

Hinge Pin Insert

Fig. 16

Fig. 17

Cover

(on top of

refrigerator)

Fig. 18

Fig. 19

Fig. 20

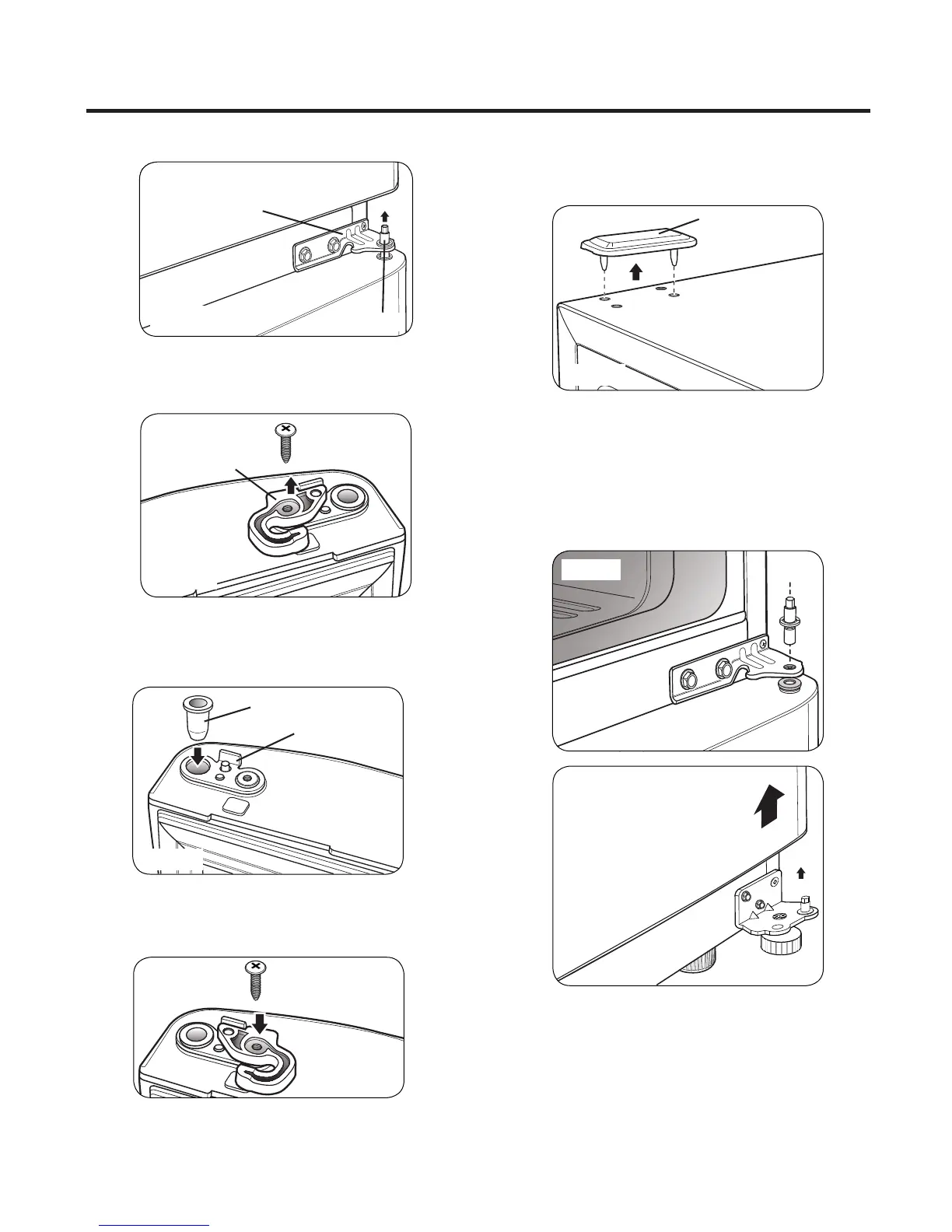

Slightly lift up the refrigerator door and remove it.

Turn the freezer door upside down on a non-scratch

surface. Loosen the screw to remove the Door Closer/Stop

and Hinge Pin Insert.

Move the Hinge Pin Insert Bracket to the other side of the

door, keeping the same orientation, and move the Hinge

Pin Insert into the hole on the left side of the bracket.

Reverse the Door Closer/Stop by flipping it over. Place it on

top of the Hinge Pin Insert Bracket, and tighten both down

with the screw.

Pry off the cover on the top left side of the refrigerator to

uncover the screw holes. Set the freezer door and top hinge

parts to the side and remove the refrigerator door.

REVERSING THE REFRIGERATOR DOOR

Using a 1/4 in socket wrench, loosen and remove Hinge Pin

from the Middle Hinge Bracket. Remove washer under-

neath the middle hinge and set aside.

NOTE: At this point the door will be loose. Slightly lift the

door and remove it
