- 8 -
Fig. 23
Fig. 22
Fig. 24
Fig. 25
Fig. 26
Hinge
Pin Bracket
Hinge Pin
Insert
Fig. 27
Hinge
Pin Bracket
Hinge Pin Insert
Fig. 28

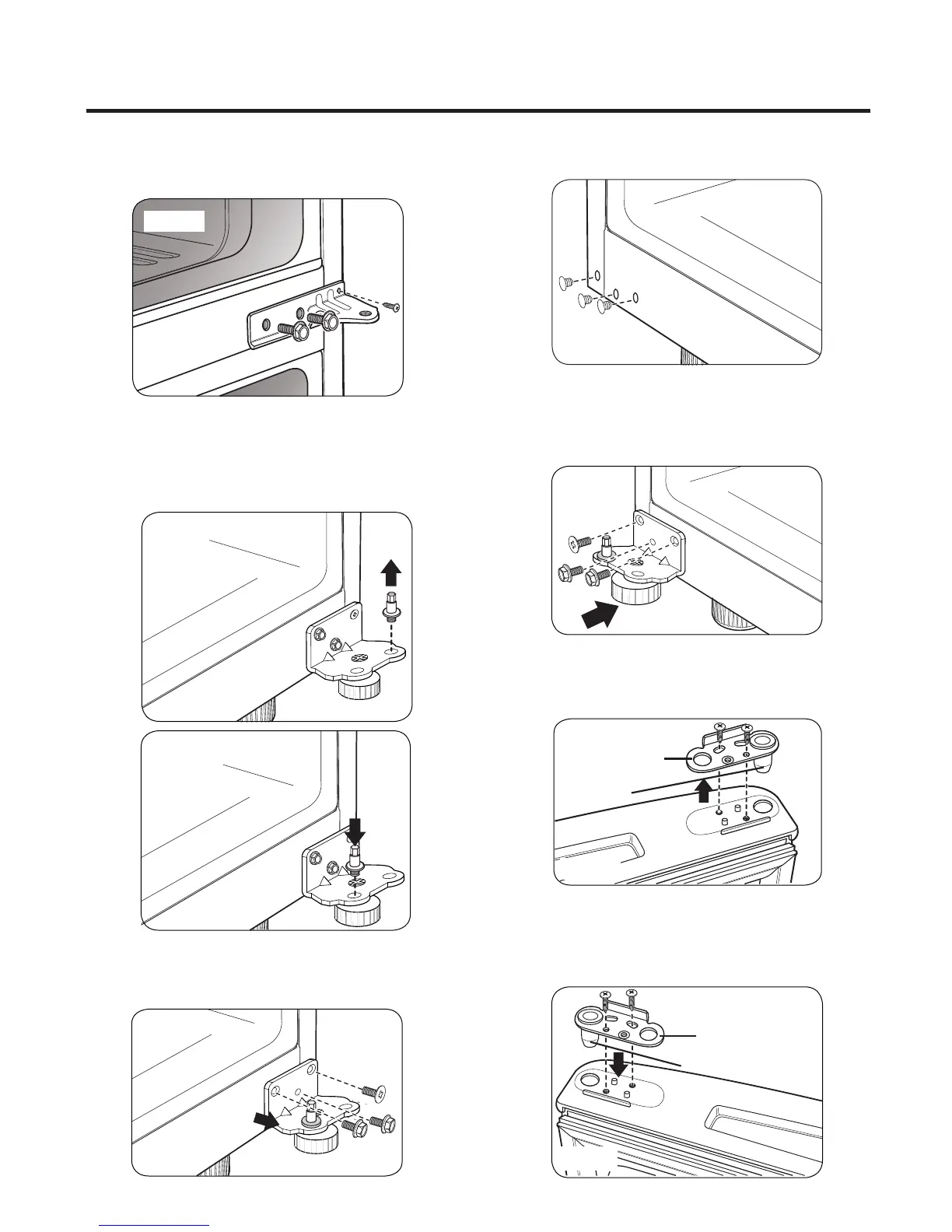

Loosen and remove the two bolts and use the Phillips head
screwdriver to remove the Middle Hinge Bracket from the
refrigerator housing. Set parts aside.
Remove the washer from the Bottom Hinge Pin. Using a 1/4
inch socket wrench, loosen and remove the Hinge Pin from
the Bottom Hinge. Reattach the Hinge Pin to the opposite
side of the hinge.
NOTE: This is easier to do while the hinge is still attached.
Using a 13/32 inch socket wrench with a 2 inch extension
and screwdriver, loosen the two bolts and one screw, and
remove the Bottom Hinge from right side of the housing.
Fig. 21
Remove the Decorative Caps on the bottom of the refrigera-
tor housing. You will need these holes for the Bottom Hinge.
Move the Bottom Hinge to the left side of the housing,
keeping the same orientation, and reattach with the two
bolts and one screw. The flat screw must be placed on the
exterior side of the hinge. Move the Decorative Bolt to the
hole on the lower right side of the housing.
Turn the refrigerator door upside down on a nonscratching
surface. Loosen the two screws to remove the Bottom
Hinge Pin Bracket with the Hinge Pin Insert.
Take out the Hinge Pin Insert and move the Bracket to the
other side of the door, keeping the same orientation. Place
the Hinge Pin Insert into the left side of the bracket. Tighten
the Hinge Pin Bracket to the door.
