Actions for each Trip and number of LED blinking

1. LED blinking 1 time (AD-offset Error)

Blink OFF Blink OFF

Check

protection

logic

LED blinking 1

time

AD-offset Error

Is it out of Spec.?

(2.2-2.8V)

Replace

PCB

Power Reset

Cause : PCB Short, sensing part defect

Objective: to detect Motor voltage or current sensing defect

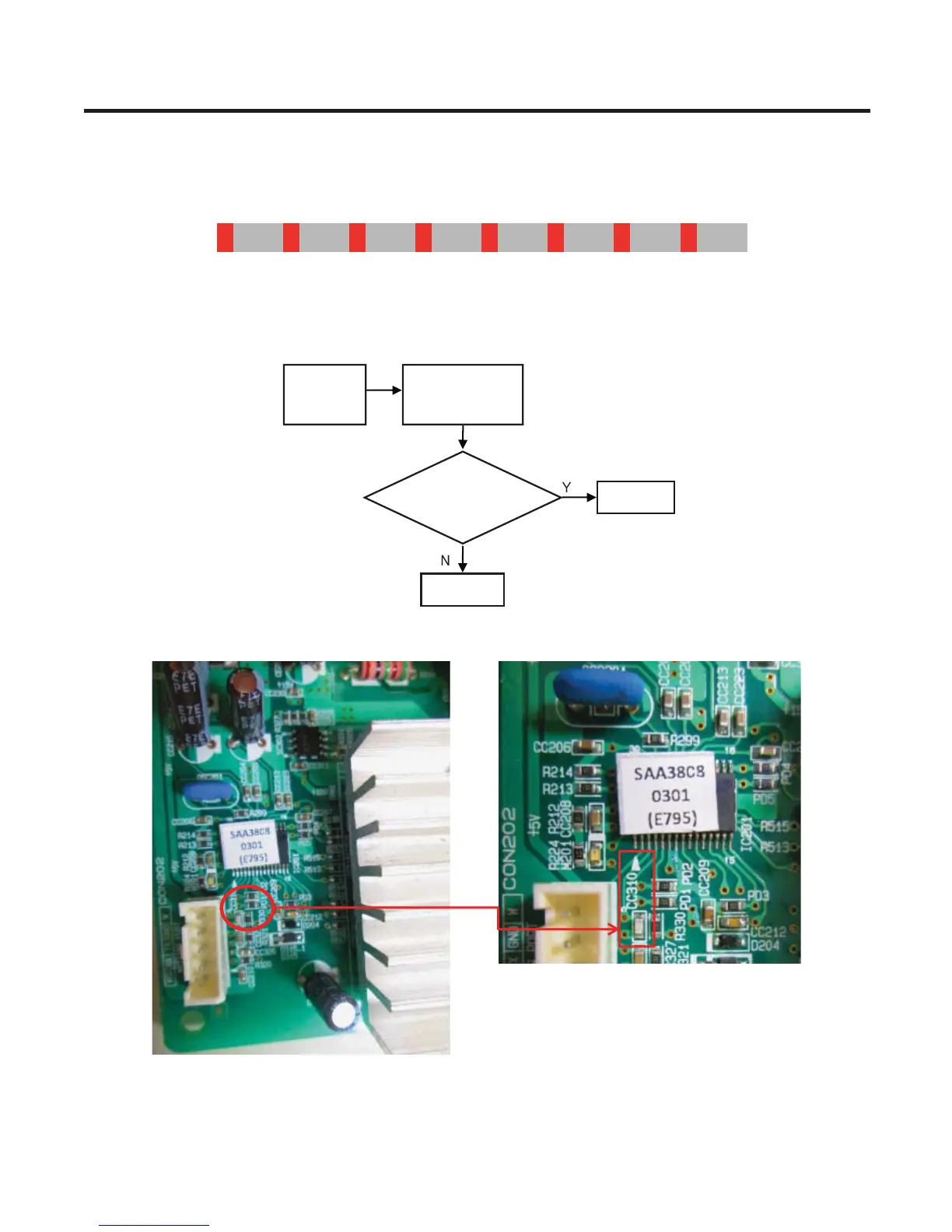

Actions: check CC310 voltage and if it is outside 2.2~2.8V, replace PCB


