Check

protection

logic

Check IPM Fault or

LED blinking 7

times(IPM Fault)

Compressor is not

activated

Check Point A short

circuit IPM output

>80V-20%

Replace PCB

Re-confirm

inspection

procedure

Visual

verification of

IPM burn

Power

Reset

3. LED blinking 7 times (IPM Fault)

Actions for each TRIP and the number of LED blinking

FFOknilB Blink Blink Blink Blink Blink Blink

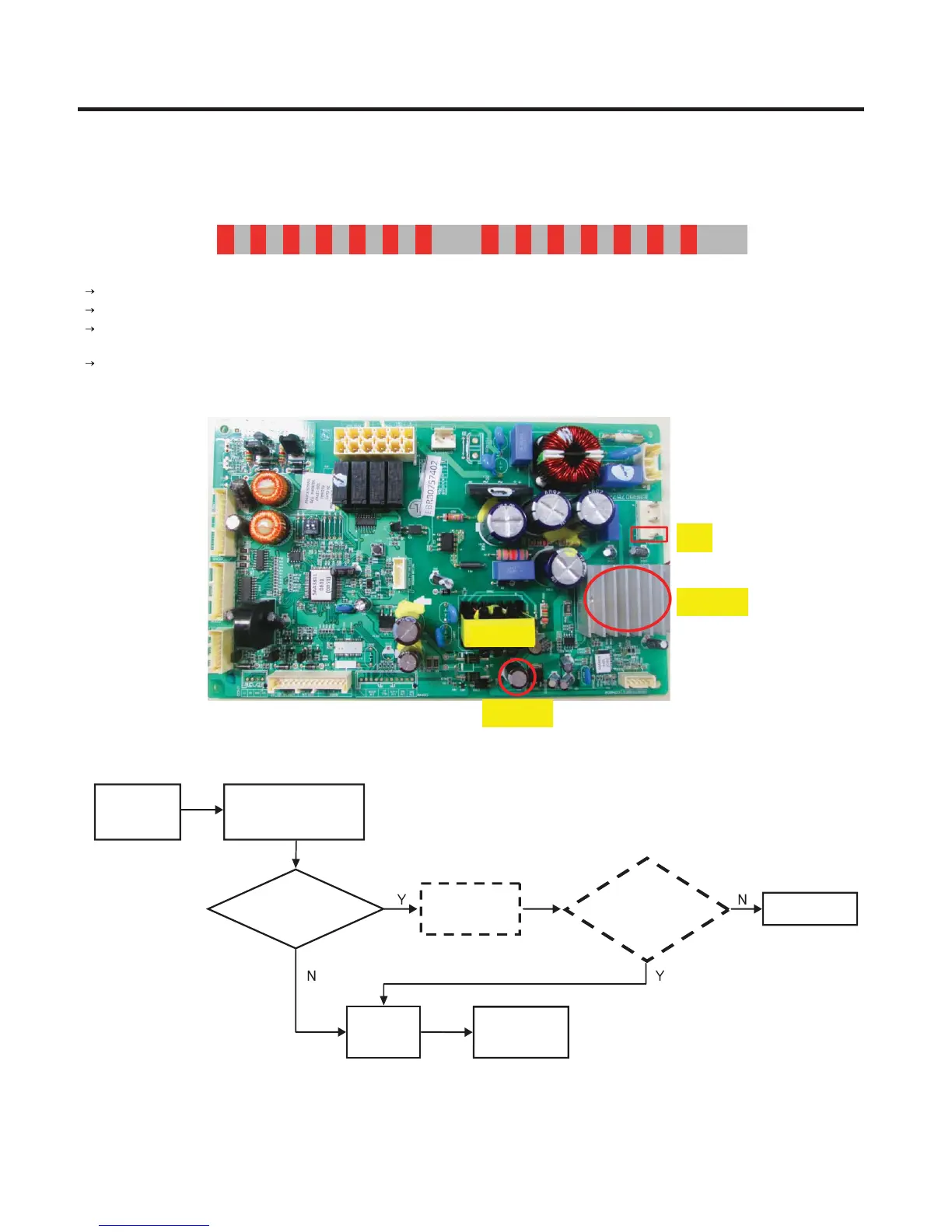

Cause: IPM Short, defect(burned or damaged)

Objective: Protection of the over-current caused by IPM short or defect.

Actions: Visual verification of IPM burn when COMP is not in operation. Check whether

there is a short circuit in U, V, or W part.

Replace PCB

GND
