With a flat-head screwdriver, carefully pry off and remove
the cover over the screw holes on the left side of refrigera-
tor housing.
Remove the outer lower Decorative Screw from the
housing at the area between the freezer and refrigerator
doors (You will need this hole for the Middle Hinge Bracket).
Flip the Middle Hinge Bracket, (flange will now be on top)
position it on left side of the refrigerator and reattach with
two bolts and a Phillips screwdriver. Place the refrigerator
door down over the pin on the bottom hinge. Place the
washer between the refrigerator door and middle hinge and
re-attach Hinge Pin to Hinge Bracket with a 1/4 in socket
wrench.
NOTE: Bracket has been flipped, but Hinge Pin stays in the
same orientation with its hexagonal end facing upward.
Insert the Decorative Screw into the outer hole on the right
side of the housing. Attach cover on the right side. Cover is
force-fitted.
- 9 -

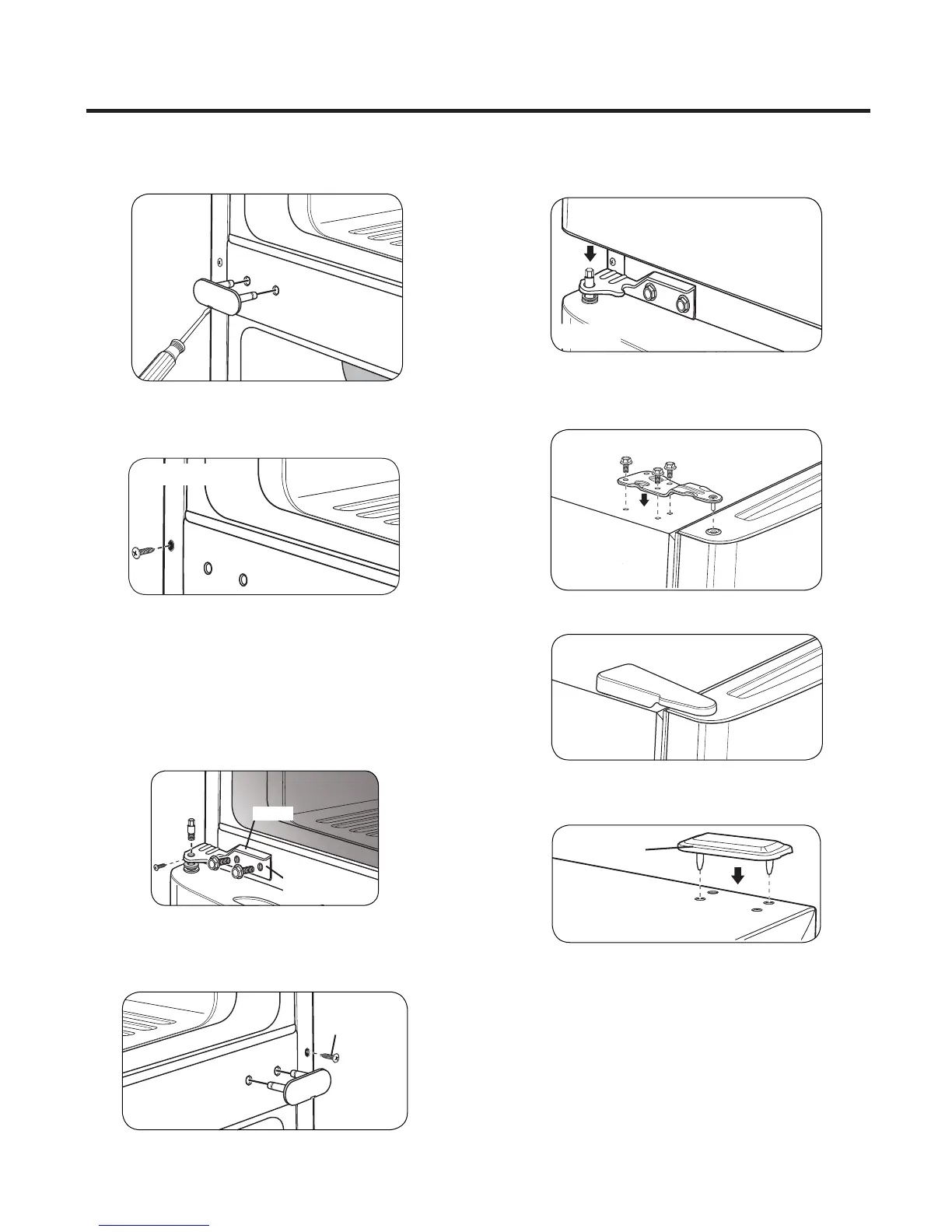

Fig. 29
Fig. 30
Middle Hinge
Bracket
Flange
Fig. 31
Decorative
Screw
Fig. 32
Fig. 33
Fig. 34
Fig. 35
Cover (on top of
refrigerator)
Fig. 36
REATTACHING THE DOORS
Place the freezer door down over the Hinge Pin on the
Middle Hinge Pin Bracket.
Place the Upper Hinge Pin on top of the freezer door and
line up the Upper Hinge with holes on top of the refrigerator.
Use the three bolts to replace the Hinge.
Tighten the bolts. Force-fit Top Hinge Cover over Top Hinge.
Replace cover on the top left side of the refrigerator to the
right top to cover the holes. Cover is also force-fitted.
