LG MASTER-K Series User Manual

Chapter 7. MK PROGRAMMING
7 - 3

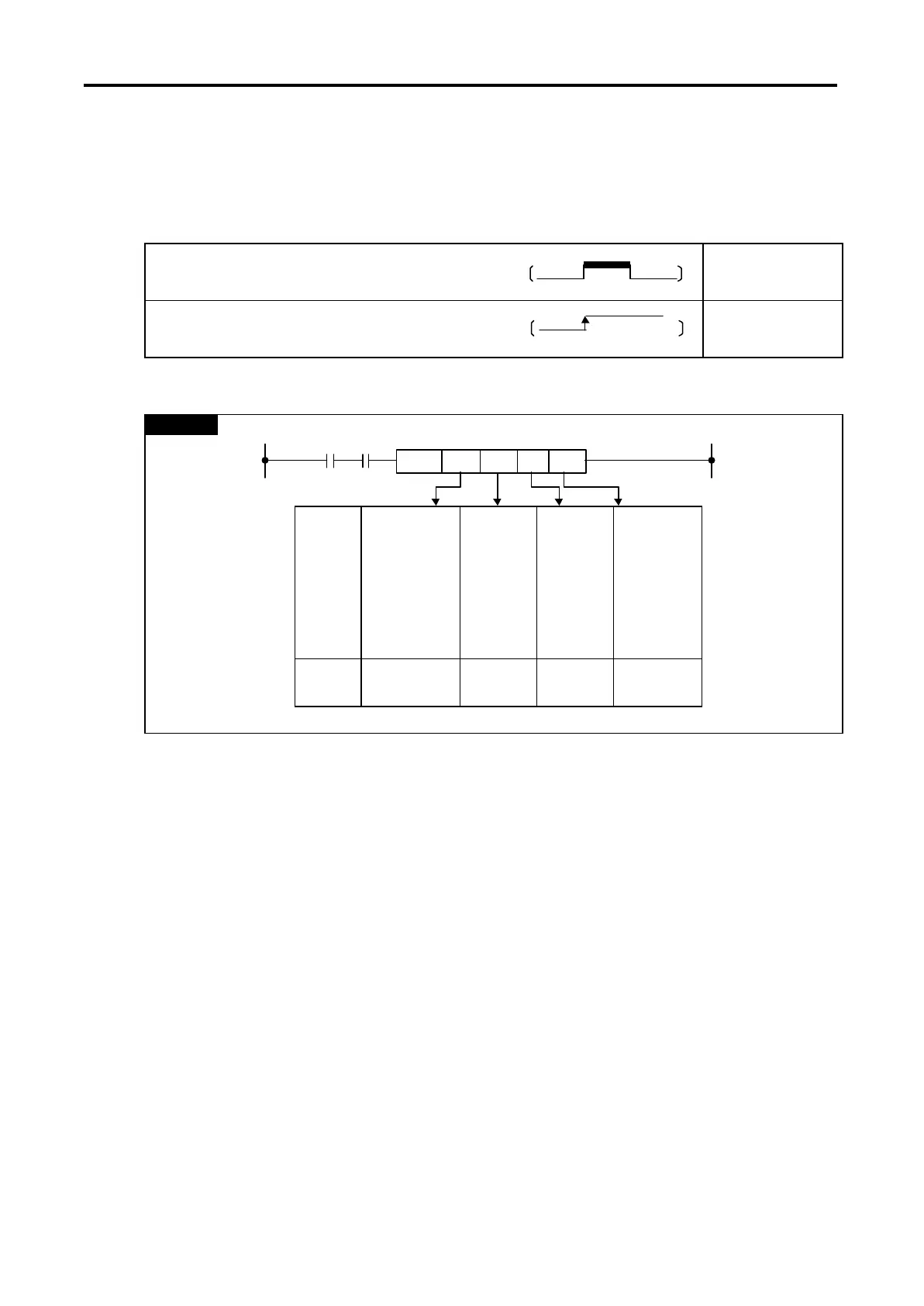

7.1.2 Write to the Buffer Memory(PUT,PUTP)
Besides the data stored in the CPU memory area, decimal integer(ΟΟ) and hexadecimal
integer(HΟΟ) can be used as the data that can be written from the CPU to the Buffer Memory of the
high speed counter module.
Always executed when the execution condition
is in the On state. .
PUT
Executed when the execution condition turns On. PUTP
[Table 7.3] The Difference between PUT and PUTP
Format
[Fig 7.4] Write Instruction PUT
PUT n
1
n
2
S n
3
Content
Number of
the slot
where the
special
module is
loaded
Head
address
of the
Buffer
Memory
where the
data is
stored.
Integer or,
No. of the
head
word of
the CPU
memory
area
where the
write data
is stored.
Number of
words of
the write
data.
(1~50)
Usable
memory
area
Integer
Integer
(Decimal
/Hex)
M,P,K,L,
T, C, D
or #D
Integer
