94 | LIMITS / PLACEMENT
MULTI V 5 Outdoor Unit Engineering Manual
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
©
/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
REFRIGERANT PIPING FOR
SEPARATED OUTDOOR UNITS
Dual-frame and triple-frame systems should be installed with all outdoor units located next to each other. In conditions where the dual-frame
or triple-frame outdoor units need to be separated, the following rules must be followed:

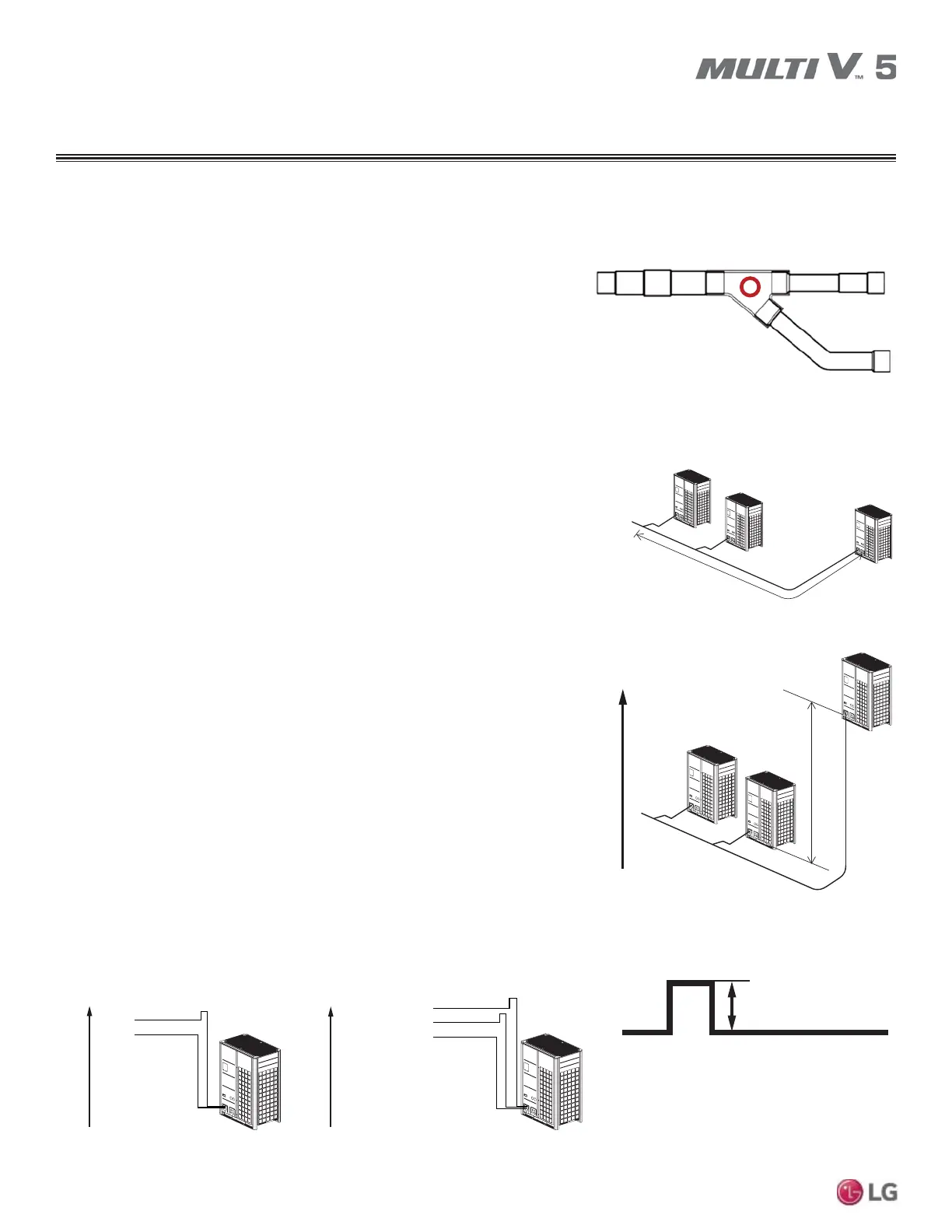

Figure 27: Y-branch Measurement Location.1. Measurements.
All measurements should be made from the union center of the outdoor unit Y-branch.
Figure 28: Maximum Pipe Length from First Outdoor
Unit Y-branch to Farthest Outdoor Unit.
To IDUs / HRUs
33 Feet
(Max.)
Figure 29: Elevation Difference Between Outdoor
Units.
Figure 30: Traps for Heat Pump and Heat Recovery Systems.
To IDUs /
HRUs
Elevation
16 Feet
(Max)
Oil Trap
8 inches
Trapping
1. :KHQUHTXLUHGDOOWUDSVPXVWEHLQYHUWHGW\SHWUDSVƎLQWKHYDSRUOLQHV
a. Heat pump outdoor units would be trapped in the suction vapor line, and
heat recovery outdoor units would be trapped in the high AND low pressure
vapor lines.
E,QYHUWHGWUDSVDUHGHILQHGDVDQ\SLSLQJWKDWLVƎLQDYHUWLFDOGLUHFWLRQXSWKH
horizontal pipe it elevates from.
2. Maximum pipe length from first outdoor unit Y-branch to farthest outdoor unit.
Total pipe length from the first outdoor unit Y-branch to the piping connection at the
farthest outdoor unit must not exceed thirty-three (33) feet.
3. Elevation difference between outdoor units.
The elevation difference between the highest and lowest elevation outdoor unit must
not exceed sixteen (16) feet.
Figure 31: Close Up of An Inverted Oil Trap.
Suction
Liquid
Elevation
Heat Pump
Low Pressure Vapor
Liquid
To Indoor Units
Elevation
Heat Recovery
High Pressure Vapor
To Indoor Units
To Next Page
