ODU PRODUCT DATA | 61
Outdoor Unit Product Data
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
©
/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS

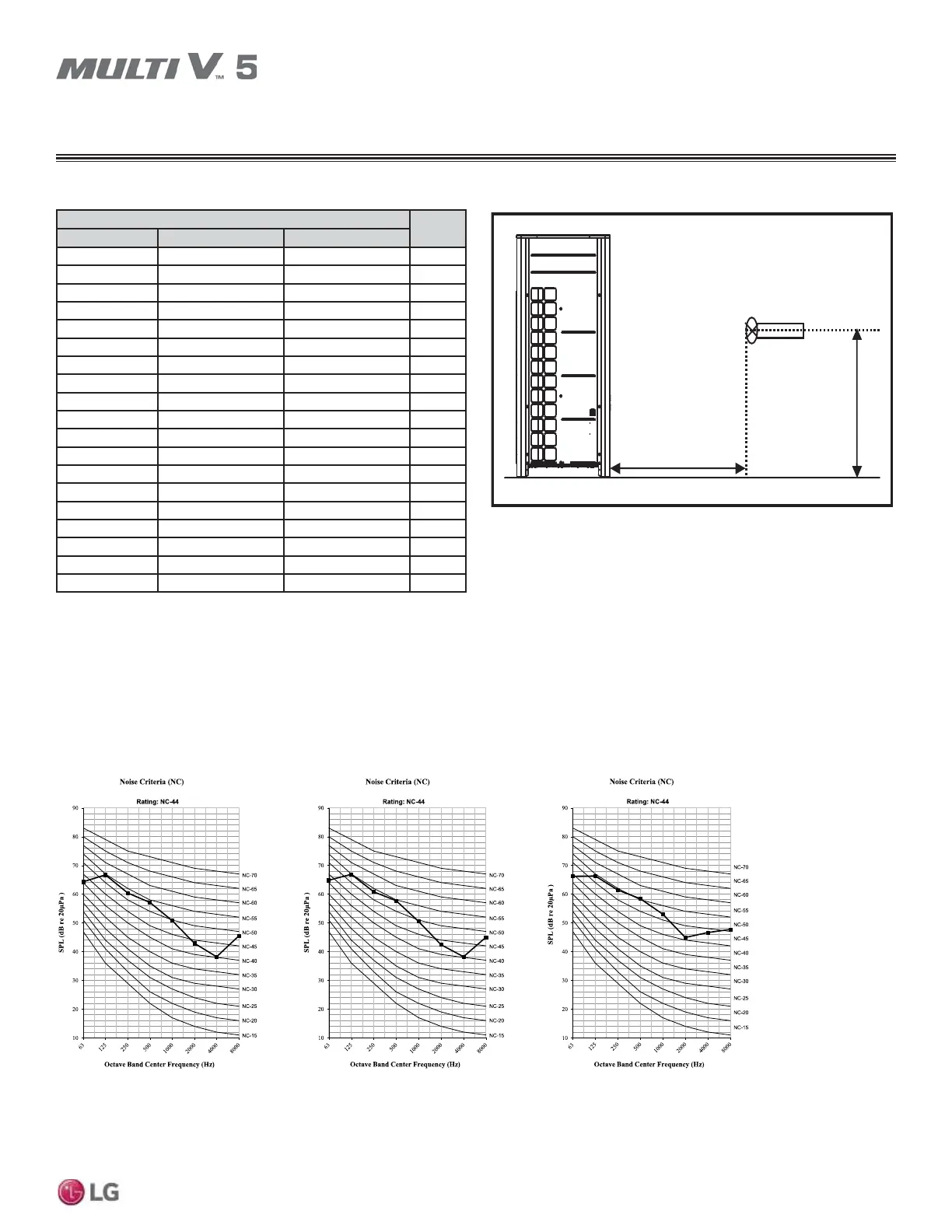

ACOUSTIC DATA
Sound Pressure Levels
Outdoor Unit Models
dB(A)
Nominal Tons 208-230V 460V
6 ARUM072BTE5 ARUM072DTE5 58.0
8 ARUM096BTE5 ARUM096DTE5 58.0
10 ARUM121BTE5 ARUM121DTE5 59.0
12 ARUM144BTE5 ARUM144DTE5 60.0
14 ARUM168BTE5 ARUM168DTE5 61.0
16 ARUM192BTE5 ARUM192DTE5 62.0
18 ARUM216BTE5 ARUM216DTE5 64.0
20 ARUM241BTE5 ARUM241DTE5 65.0
22 ARUM264BTE5 ARUM264BTE5 63.0
24 ARUM288BTE5 ARUM288DTE5 63.0
26 ARUM312BTE5 ARUM312DTE5 65.0
28 ARUM336BTE5 ARUM336DTE5 65.0
30 ARUM360BTE5 ARUM360DTE5 66.0
32 ARUM384BTE5 ARUM384DTE5 66.0
34 ARUM408BTE5 ARUM408DTE5 66.0
36 ARUM432BTE5 ARUM432DTE5 66.0
38 ARUM456BTE5 ARUM456DTE5 66.0
40 ARUM480BTE5 ARUM480DTE5 67.0
42 ARUM504BTE5 ARUM504DTE5 67.0
• 0HDVXUHPHQWWDNHQƍDERYHILQLVKHGIORRUDQGDWDGLVWDQFHRI
ƍIURPIDFHRIXQLW
• Measurements taken with no attenuation and units operating at full
load normal operating condition.
• Sound level will vary depending on a range of factors such as
construction (acoustic absorption coefficient) of particular area in
which the equipment is installed.
• Sound level may be increased in static pressure mode or if an air
guide is used.
• Sound levels are measured in dB(A)±3.
• Tested in anechoic chamber per ISO Standard 3745.
Table 14: Outdoor Unit Sound Pressure Levels.
Figure 3: Sound Pressure Measurement Location.
3.3 feet
3.3 feet
ARUM072BTE5 / DTE5 ARUM096BTE5 / DTE5 ARUM121BTE5 / DTE5
Figure 4: ARUM072-096-121BTE5 / DTE5 Sound Pressure Levels.
