35
Product Data
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.

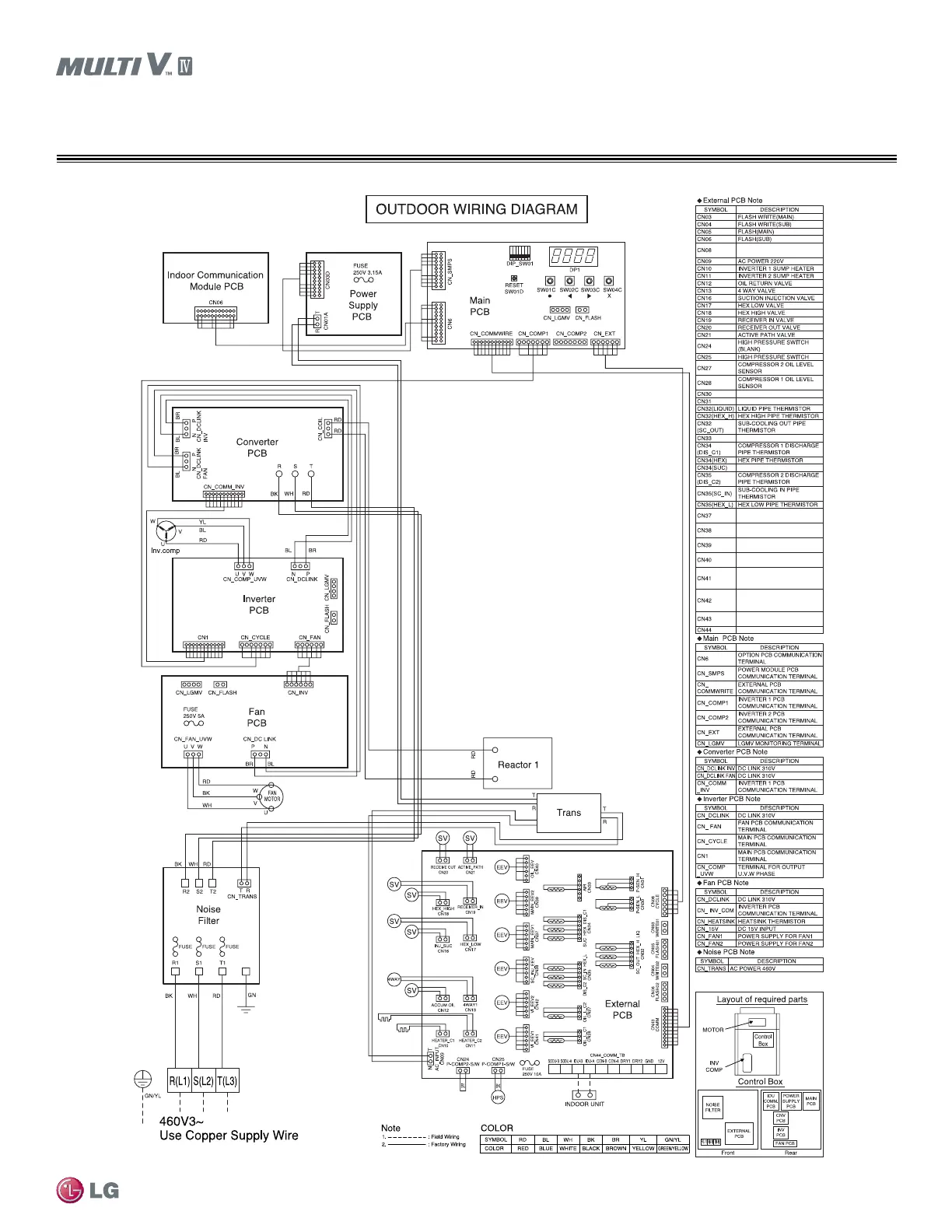

HEAT PUMP WIRING DIAGRAMS
ARUN072DTE4 460V
MAIN PCB COMMUNICAT ION
TERMINAL
SUB-COOLING ELECTRONIC
EXPANSION VALVE
MAIN ELECTRONIC EXPANSION
VALV E 2
OIL BALANCING ELECTRONIC
EXPANSION VALVE
VAPOR INJECTION ELECTRONIC
EXPANSION VALVE 1
VAPOR INJECTION ELECTRONIC
EXPANSION VALVE 2
MAIN PCB COMMUNICATION
TERMINAL
LOW PRESSURE SENSOR
HIGH PRESSURE SENSOR
OUTDOOR AIR THERMISTOR
SUCTION PIPE THERMISTOR
MAIN ELECTRONIC
EXPANSION VALVE 1
TERMINAL BLOCK
To Next Page
