MULTI V IV System Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.

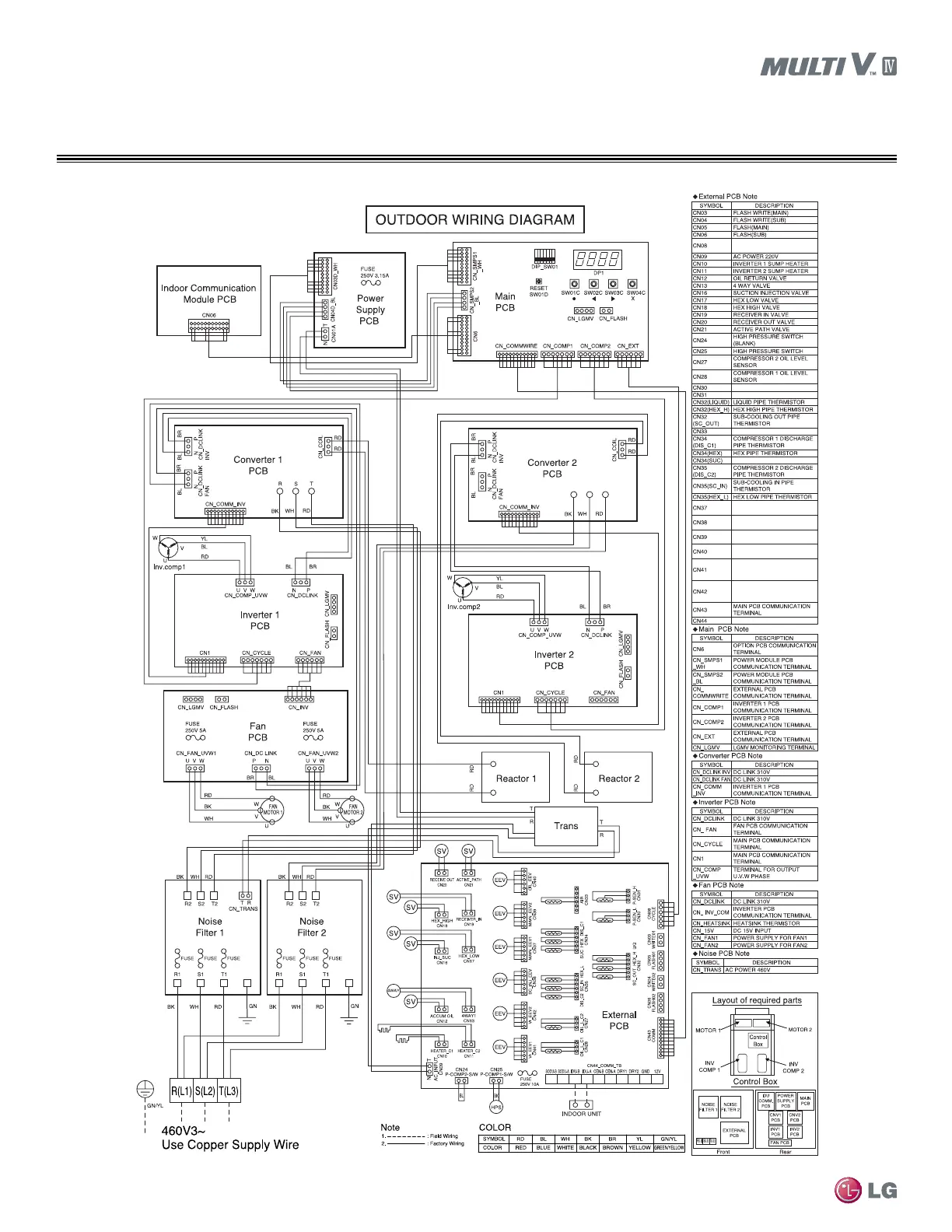

HEAT PUMP WIRING DIAGRAMS
ARUN144BTE4, ARUN168BTE4 208-230V
MAIN PCB COMMUNICATION
TERMINAL
LOW PRESSURE SENSOR
HIGH PRESSURE SENSOR
OIL BALANCE ELECTRONIC
EXPANSION VALVE
VAPOR INJECTION ELECTRONIC
EXPANSION VALVE 1
VAPOR INJECTION ELECTRONIC
EXPANSION VALVE 2
OUTDOOR AIR THERMISTOR
SUCTION PIPE THERMISTOR
SUB-COOLING ELECTRONIC
EXPANSION VALVE
MAIN ELECTRONIC
EXPANSION VALVE 1
MAIN ELECTRONIC
EXPANSION VALVE 2
TERMINAL BLOCK
