ENGLISH
Installation Manual 71
Electrical Wiring
Outdoor unit Dry Contact installation and connection

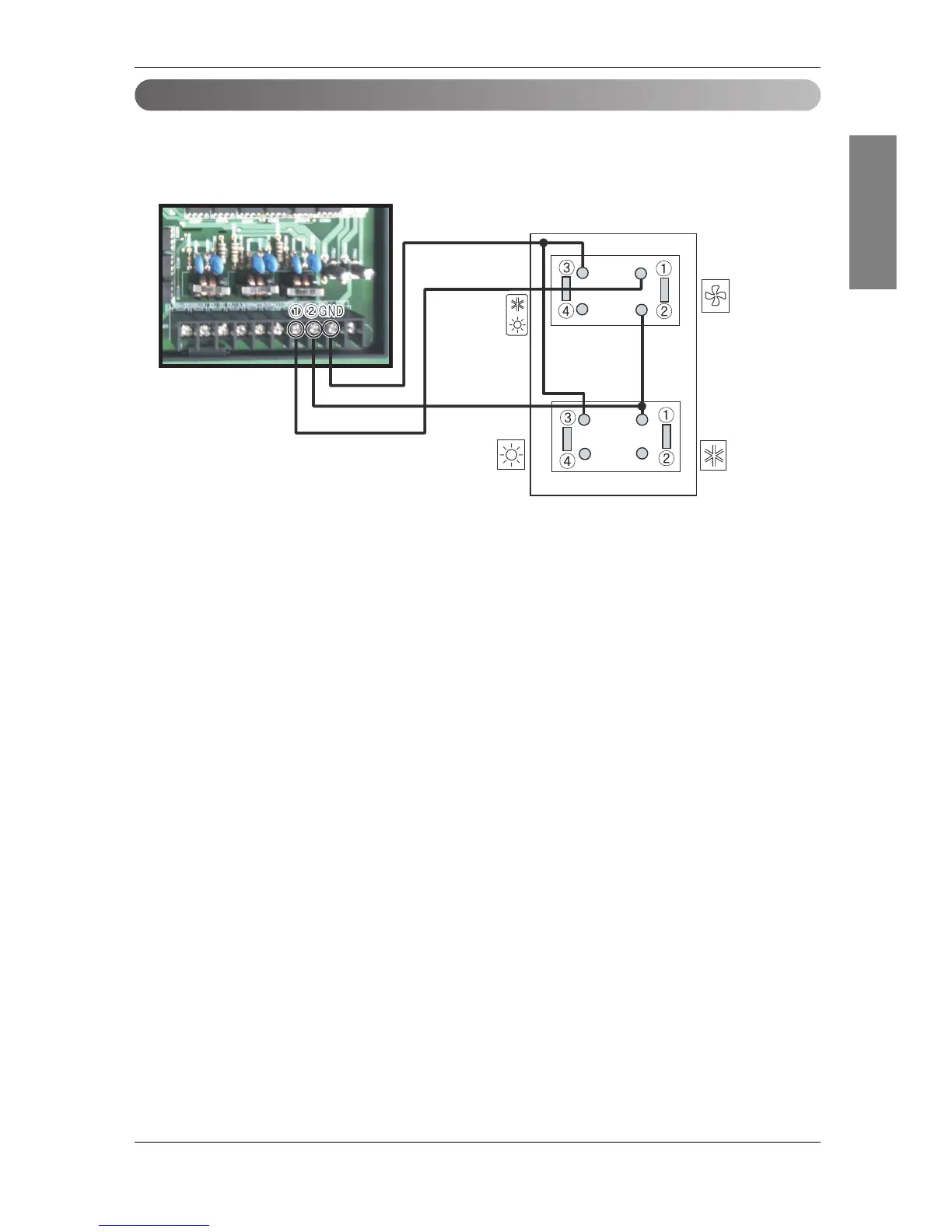

• Connect wires as below figure at the hole of backside of Outdoor Unit Dry Contact.
• Insert the wire in the connection hole pushing the "Push" button.
• Setting Main PCB Dip SW of Master Outdoor Unit.
Mode Change
Push Button
Heating
Outdoor Unit
Fan
Cooling
