5
ENGLISH

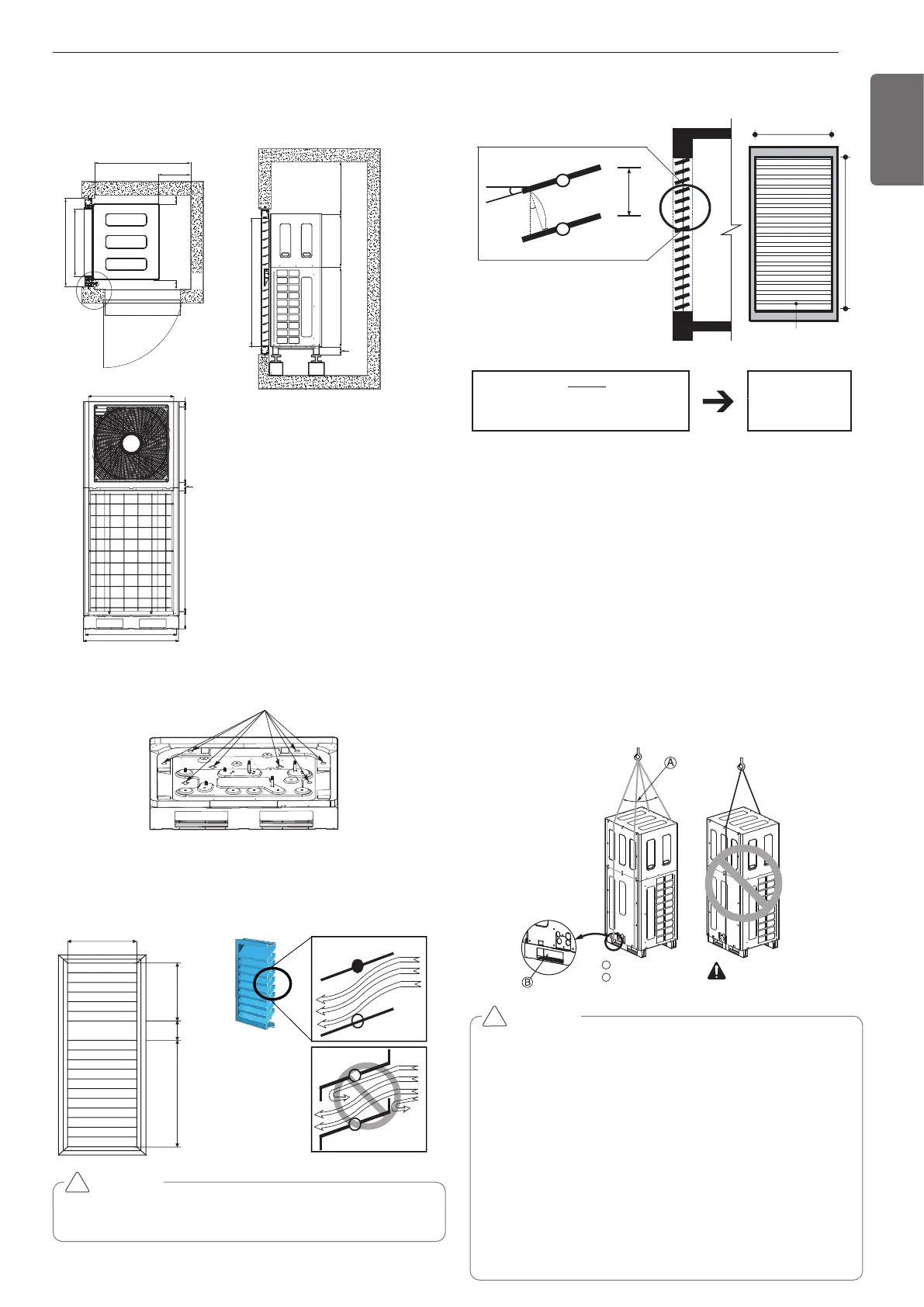

Recommended Effective Opening Ratio(E.O.R) of Louver
CAUTION
Be very careful to carry product.
• Do not have only one person carry product if it is more than 20 kg (44
lbs).
• PP bands are used to pack some products. Do not use them as a mean
for transportation because they are dangerous.
• Do not touch heat exchanger fins with your bare hands. Otherwise you
may get a cut in your hands.
• Tear plastic packaging bag and scrap it so that children cannot play with
it. Otherwise plastic packaging bag may suffocate children to death.
• When carrying in Outdoor Unit, be sure to support it at four points.
Carrying in and lifting with 3-point
support may make Outdoor Unit unstable, resulting in a fall of it.
• Use 2 belts of at least 8 m (3.3 ft) long.
• Place extra cloth or boards in the locations where the casing comes in
contact with the sling to prevent damage.
• Hoist the unit making sure it is being lifted at its center of gravity.
!
500(19.7)
1,150(45.3)
(Min) 884+5(34.8+0.2)
650(25.6)
Door Width
900(35.4)
500(3.9) (Min)500(3.9) (Min)*
(Min) 1,605+5(63.2+0.2)
90(3.5)
1,024(40.3)
723(28.5)(Anchor Bolt)
660(26)
750(29.5)
137(5.4)
954(37.6)
65(1.6)
596(23.5) 40(1.6)
676(26.6)
(600(23.6))
[Unit:mm(inch)]
660(26)
596(23.5)970(38.2)
85(3.3)
• Space for the "*" display part of by type
of system louver
When installing automatic louver: 150
When installing manual louver: 150
When installing fixed louver: 100
(Basic space)
Cautions in winter especially for seasonal wind
• Sufficient measures are required at a snow area or severe cold area
in winter so that product can be operated well.
• Get ready for seasonal wind or snow in winter even in other area.
• Install the outdoor unit not to come in contact with snow directly.
If snow piles up and freezes on the air suction hole, the system may
malfunction.
• Don't install the suction hole and discharge hole of the outdoor unit
facing to the seasonal wind.
• Please install the product so that the door of the outdoor unit room is
completely opened for smooth installation and service.
• A water drain outlet is required to discharge rain water on the bottom
of the outdoor unit room or condensation water to possibly generate
when operating.
• The recommended Specification of louver
• Multi V Space should be installed in the special outdoor room with
soundproofing walls.
CAUTION
Do not use bended louver like the above Fig.
It disturbs the air circulation.
!
W
H
N
Air Flow Rate Q = Discharge Area(Ad) * Discharge air velocity
Air Flow Rate Q = Suction Area(As) * Suction air velocity
Ad + As
Af
X 100
ho
h
θ
θ
E.O.R > 85%
• ho = h * COSθ
• Total Area(A) = H * W
• Effective Area(Af) = ho * W * N
• Opening Ratio(n) = Af/A
’ Af = A * n
E.O.R(%) =
Af
Ad + As
40° or less
A
Rope suspension point
B
WARNING
LIFTING METHOD
• When carrying the suspended, unit pass the ropes under the unit and
use the two suspension points each at the front and rear.
• Always lift the unit with ropes attached at four points so that impact
is not applied to the unit.
• Attach the ropes to the unit at an angle of 40° or less.
INSTALLATION SPACE
