LG Multi V Standard Gen 4 Series User Manual

70
Multi V Wall-Mounted Indoor Unit
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
Control Board Cover
Lock nut
(field supplied)
Conduit
(field supplied)
L(L1) N(L2)
L(L1) N(L2)

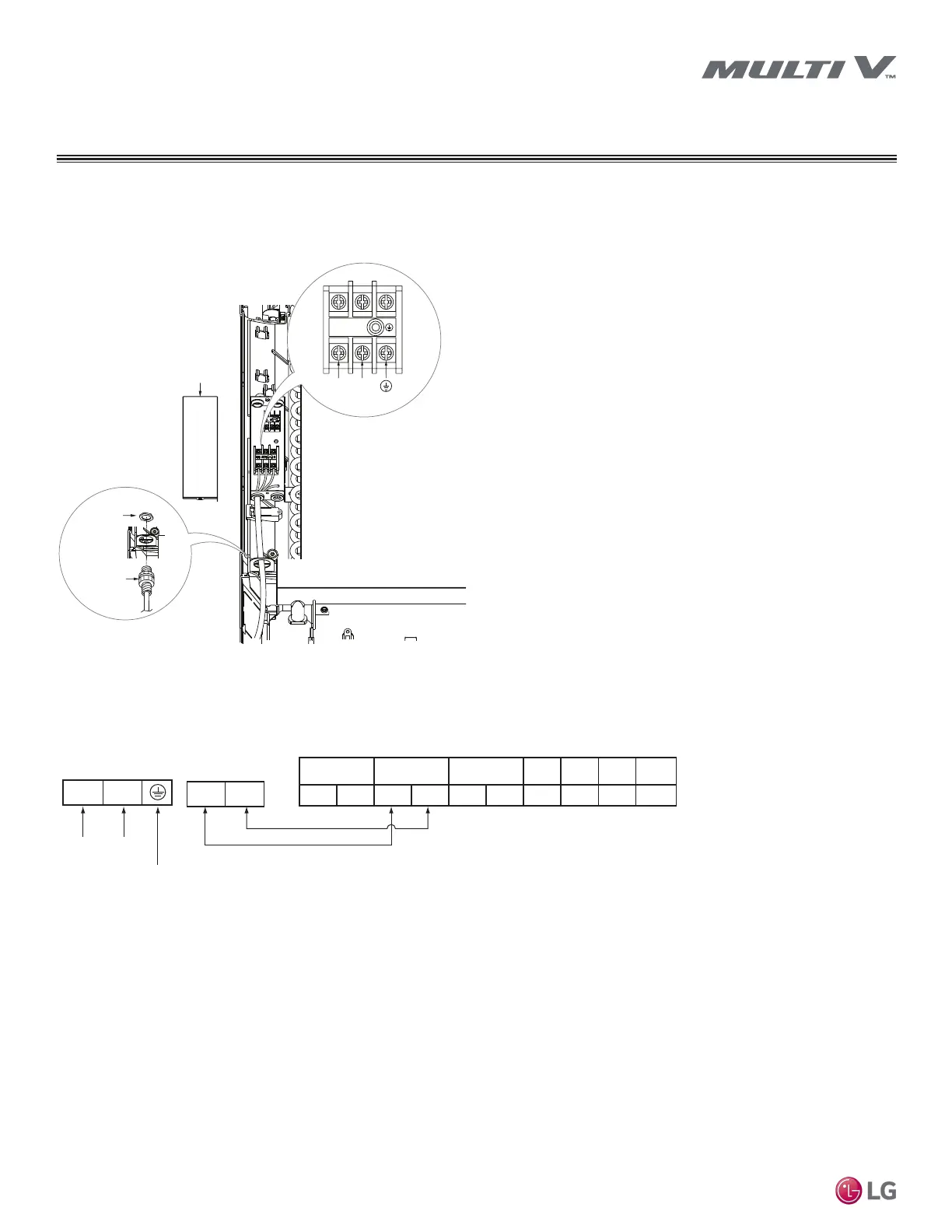

Figure 93: Location of Power Wiring / Communications Cable Terminals
in SF Frame Gallery Indoor Units.
Location of Power Wiring/Communication Cable in Art Cool Gallery SF Frame
Figure 94: Simplied View of Indoor Unit Terminal Connections—SF Gallery Frames.
Indoor Unit Terminal Block
L(L1)
Power Input
208-230V /
60 Hz / 1 Phase
A - - - ---AB B
GND 12V
DRY2DRY1 INTERNETIDUSODU
Ground
3 4
N(L2)
Outdoor Unit Terminal Block
To Outdoor Unit
WIRING
Art Cool Gallery SF Frame
