LG Multi V Standard Gen 4 Series User Manual

72
Multi V Wall-Mounted Indoor Unit
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.

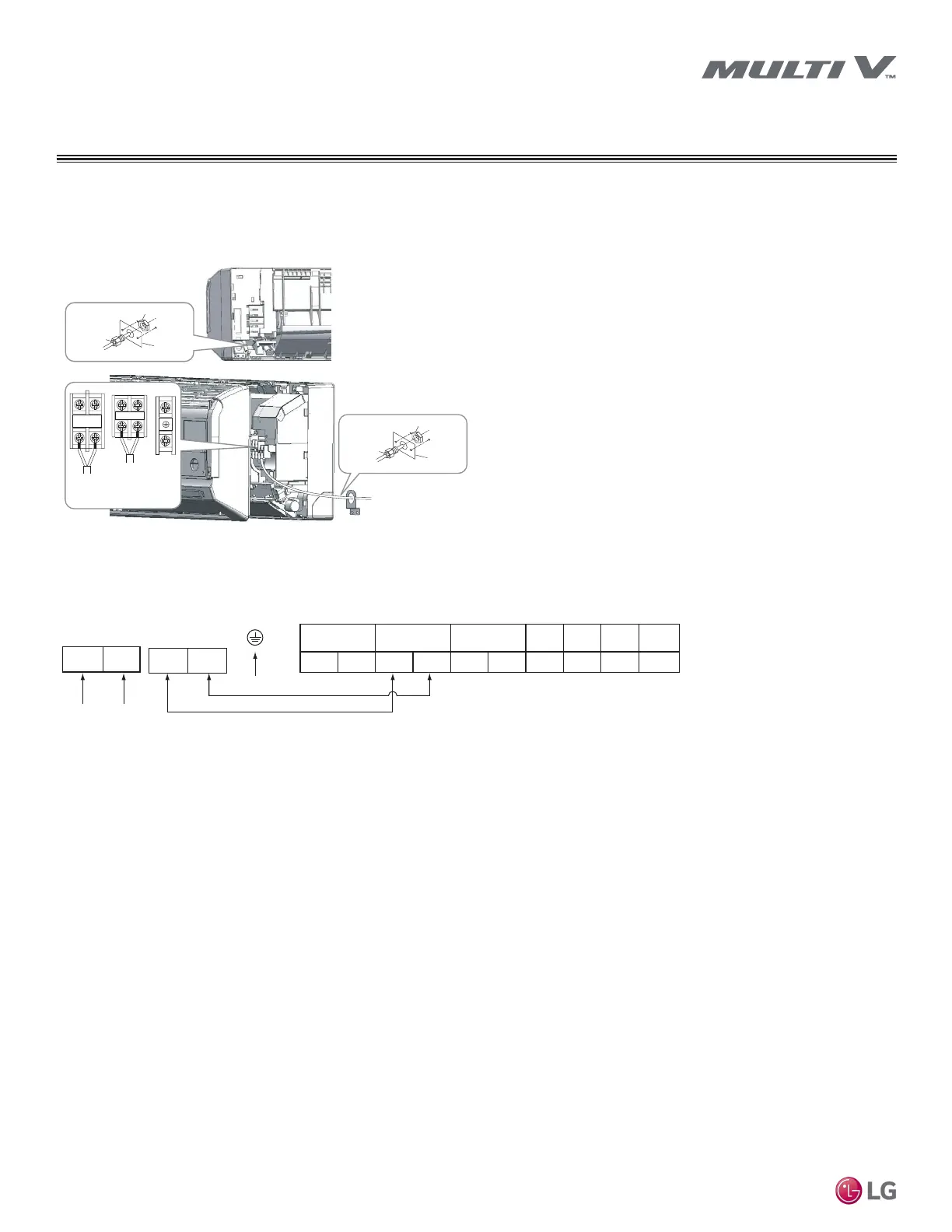

Location of Power Wiring/Communication Cable in Wall Mounted SV Frame
Lock nut
Conduit
mounting
plate
Conduit
Lock nut
Conduit
mounting
plate
Conduit
1(L) 2(N)
Power Supply
High Voltage
(208/230V)
3(A) 4(B)
Communication
Figure 96: Location of Power Wiring / Communications Cable Terminals
in SV Frame Wall-Mounted Indoor Units.
Indoor Unit Terminal Block
L(L1)
Power Input
208-230V /
60 Hz / 1 Phase
AAB AB B
GND 12V
DRY2DRY1 INTERNETIDUSODU
Ground
3(A) 4(B)
N(L2)
Outdoor Unit Terminal Block
To Outdoor Unit
- ---
Figure 97: Simplied View of Indoor Unit Terminal Connections—SV Wall-Mounted Frames.
WIRING
Wall Mounted SV Frame
