LG Multi V - Page 94

Troubleshooting Guide
- 94 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
60
Inverter PCB EEPROM
error
Error
No.
Error Type Error Point Main Reasons
EEPROM Access error and
Check SUM error
1. EEPROM contact defect/wrong insertion
2. Different EEPROM Version
3. ODU inverter PCB assembly damage
■ Error Diagnosis and Countermeasure Flow Chart
Is EEPROM insertion normal?
No
Yes
Recheck power and installation condition
1.Check EEPROM insert direction/connection condition
2.Check EEPROM Check SUM
→ Replace if abnormality found
Is inverter PCB assembly normal?
No
Yes
Replace inverter PCB assembly

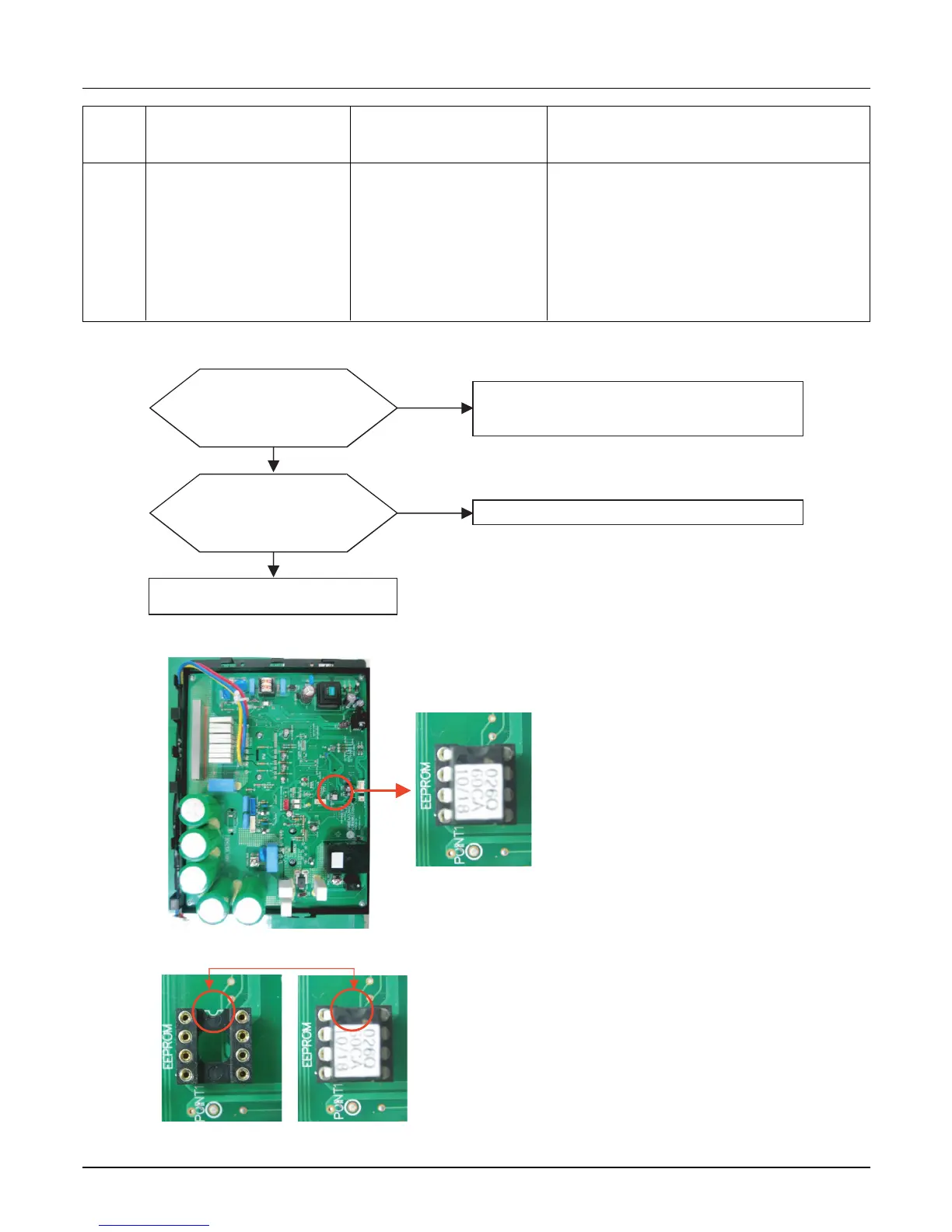

Inverter EEPROM inserting point
Right inserting direction of inverter EEPROM
❊ Note : Replace after power off
EEPROM enlarged picture
