❈ PFCM Module checking method
Set the multi tester to diode mode.
Check resistance between No.19 pin and No.20 pin
of PCB PFC module
Resistance value should be in 7kΩ ±10%.
(at 25°C(77°F)).
Troubleshooting Guide
- 95 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
62

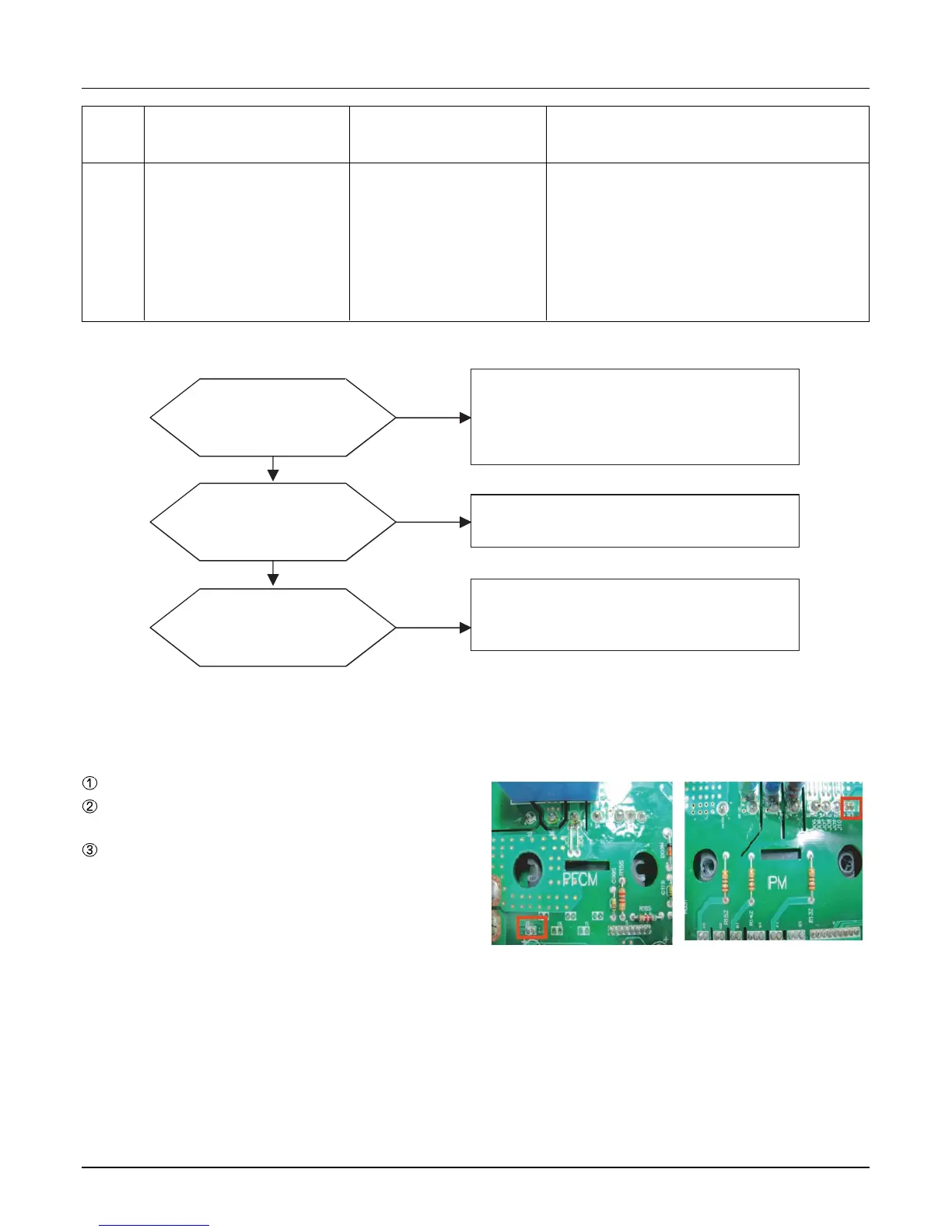

Heatsink High error
Error
No.
Error Type Error Point Main Reasons
Inverter PCB heatsink tem-
perature is over 95˚C(203˚F)
1.Overload operation (Pipe clogging/
Covering/EEV defect/Ref. overcharge)
2. ODU fan locking
3. Heatsink assembly of INV PCB assemble
condition abnormal
4. Defect of temperature sensing circuit part
defect of INV PCB
■ Error Diagnosis and Countermeasure Flow Chart
Is installation
condition normal ?
No
Yes
1. Check fan locking
2. Check covering of heat exchanger
3. Check distance between ODU and obstacles
4. Check pipe distortion and abnormality
5. Check service valve is opened
→ Eliminate causes for abnormal condition
Check resistance between No.19 pin and No.20 pin of PCB
PFC module
→ 7kΩ ±10% (at 25°C(77°F))
→ Replace PCB if abnormality found
Is assemble condition
of INV PCB heatsink normal ?
Is PCB temperature
sensing part normal ?
No
No
Yes
Check assemble condition between INV PCB heatsink and
PFC module
→ Reassemble if abnormality found
PFCM :
Measuring resistance
between No.19,20 pin
IPM :
Measuring resistance
between No.19,20 pin
