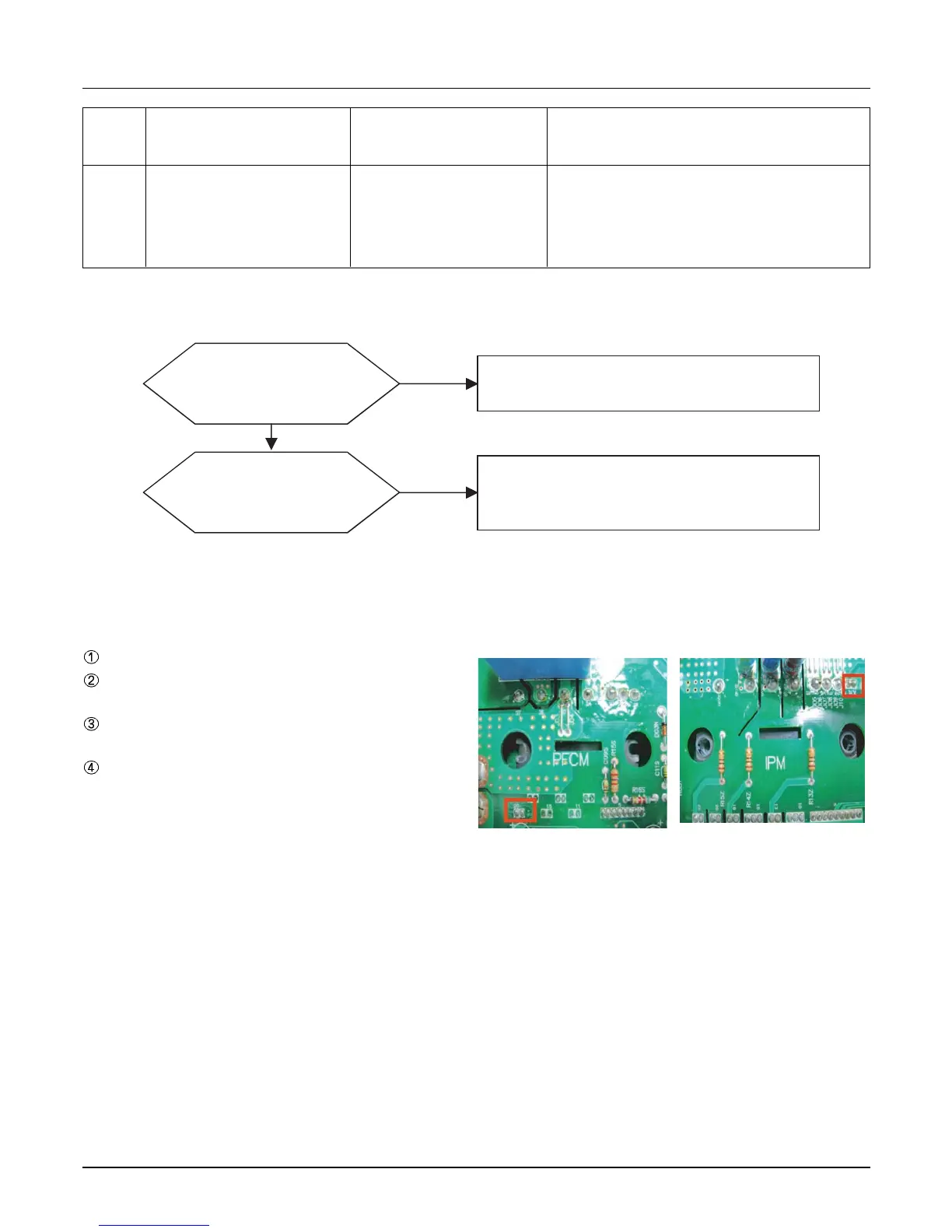

❈ PFCM Module checking method
Set the multi tester to diode mode.
Check resistance between No.19 pin and No.20 pin
of PCB PFC module
Resistance value should be in 7kΩ ±10%.
(at 25°C(77°F)).
Check PFC Module No.19,20 and IPM Module Pin
soldering condition
PFCM :
Measuring resistance
between No.19,20 pin
IPM :
Measuring resistance
between No.19,20 pin
Troubleshooting Guide
- 96 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
65
Heatsink High error
Error
No.
Error Type Error Point Main Reasons
Inverter PCB heatsink sen-
sor is open or short
1. Heatsink assembly of INV PCB assemble
condition abnormal
2. Defect of temperature sensing circuit part
defect of INV PCB
■ Error Diagnosis and Countermeasure Flow Chart
Is assemble condition
of INV PCB heatsink normal ?
No
Yes
Check assemble condition between INV PCB heatsink and
PFC module
→ Reassemble if abnormality found
Is PCB temperature
sensing part normal ?
No
Check resistance between No.19 pin and No.20 pin of PCB
PFC module
→ 7kΩ ±10% (at 25°C(77°F))
→ Replace PCB if abnormality found
To Next Page
