3-18

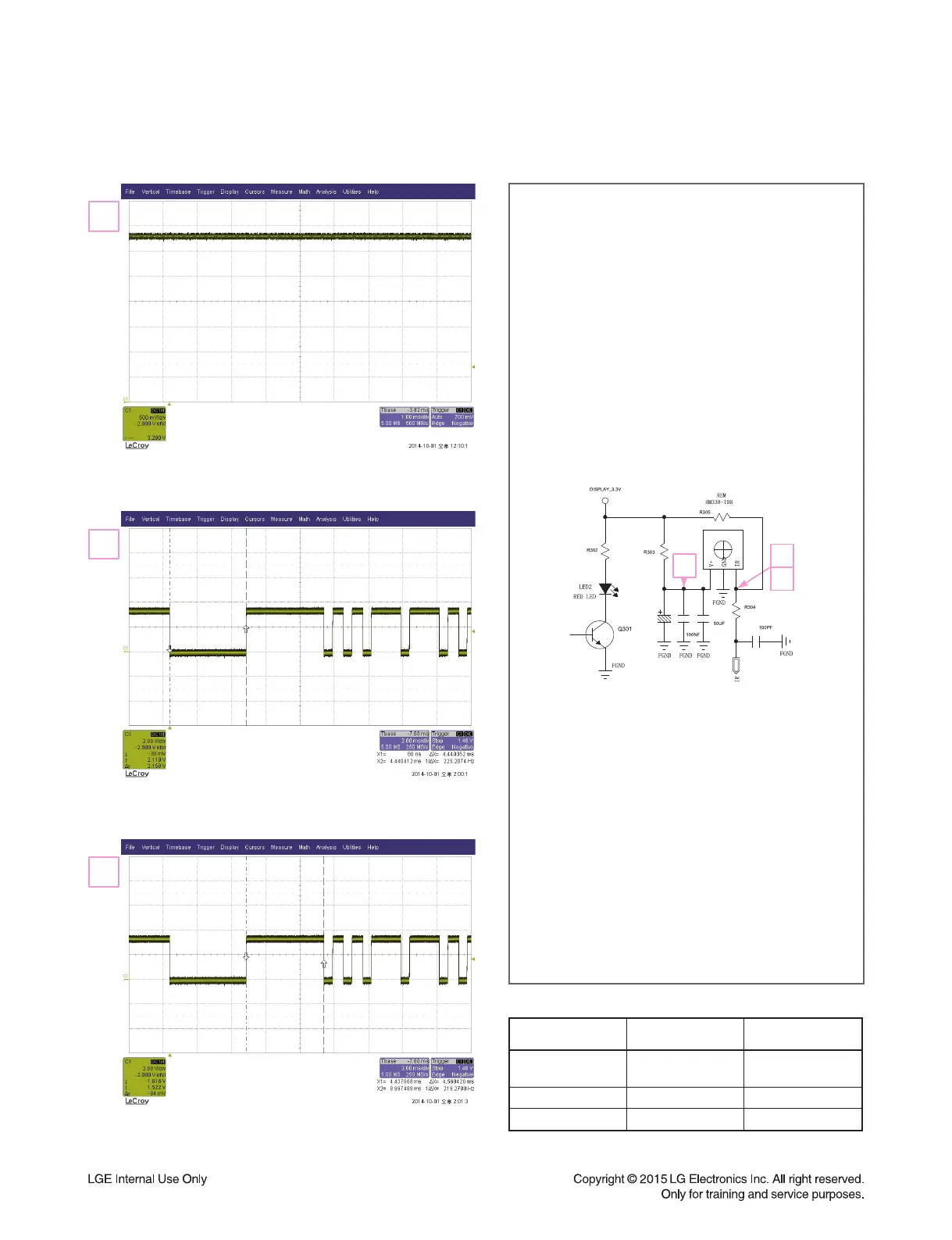

5. REMOTE CONTROL
FIG 5-1. Input Voltage
14
FIG 5-2. Low Timing
15
FIG 5-3. High Timing
Item Measured Spec.
Input Level 3.3 V
IR Receiver Spec:
2.7 ~ 5.5 V
“ Low” Timing 4.4 ms 3.6 ms ~ 5.04 ms
“ High” Timing 4.48 ms 4.08 ms ~ 5.04 ms
16
16
15
14
47K
100R
8050
100R
4.7K
EC301
100uF/16V
C301
C302
C304
