3-28
3-27
Amplifier
T
AS5612L
POT
ABLE IN
Optica
l in
LED Display
A
T
A7819Y
LED Driver
SMI616
SMPS
25 W/
6
Ohm
25
W/ 6
Ohm
SPDIF
R/L
PWM
T
a
ct
k
e
y
DSP
PS9860
IIS
AD
C
PCM
1808
Bluetoo
th
MB8811C1B
70 W/
4
Ohm
+32 V
DC-DC
IR
USB Port
FLASH
32 M
SDRAM
4 x 16 M
CS8422
FLA
SH
1M
IIS
IIS
IIC
SPI
SPI
IIC
Main chip
IC
ML
C3730

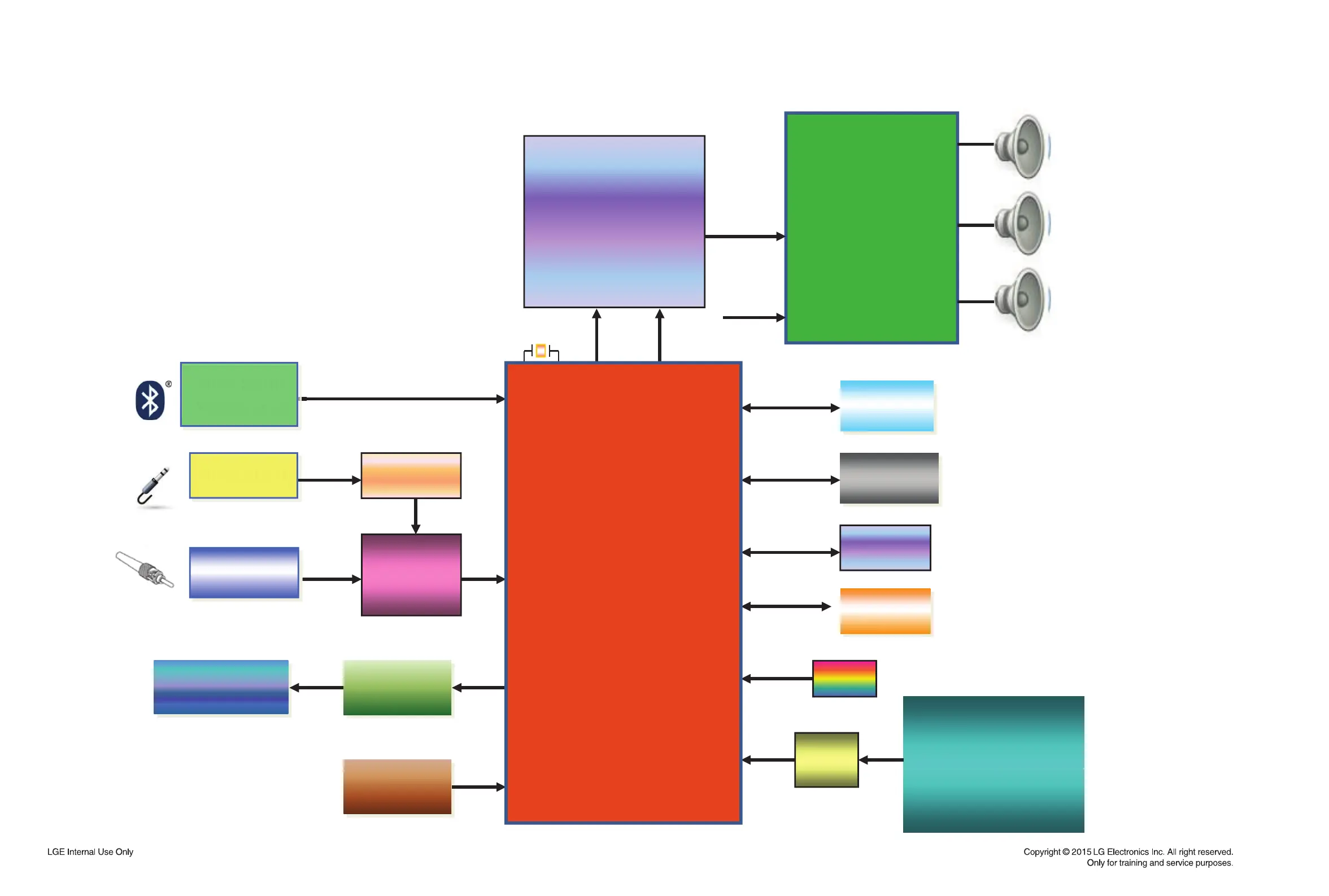

BLOCK DIAGRAM
38
40
Table of Contents
Section 1 General
3
Table of Contents
3
Esd Precautions
4
Hidden Key Mode
5
Service Information for Eeprom
5
Mcs / Eq Hidden Key Guide
6
Mcs / Eq Program Update Guide
6
Specifications
7
Section 2 Cabinet & Main Chassis
8
Exploded Views
10
Main Set Section
10
Subwoofer Section
11
Packing Accessory Section
12
Section 3 Electrical
14
One Point Repair Guide
15
Power Problem (Pvdd)
15
Power on Error
16
Sound (Portable Function)
17
Bluetooth
18
Sound (Optical)
19
Electrical Troubleshooting Guide
20
Power Supply Circuit
20
Front Circuit
21
Test & Debug Flow
23
Amp Protection
26
Waveforms of Major Check Point
27
Crystal
27
Flash Memory
28
Tact Key
29
Usb
30
Remote Control
31
Optical
32
Portable
33
Audio Pwm
34
Audio Amp
36
Wiring Diagram
38
Block Diagram
39
Circuit Diagrams
40
Smps Circuit Diagram
40
Main - Dsp Circuit Diagram
41
Main - Power Circuit Diagram
42
Main - Pwm & Amp Circuit Diagram
43
Display/ Key/ Usb Circuit Diagram
44
Circuit Voltage Chart
45
Printed Circuit Board Diagrams
46
Smps P. C. Board Diagram
46
Main P. C. Board Diagram
47
Display P. C. Board Diagram
48
Key P. C. Board Diagram
48
Usb P. C. Board Diagram
48
