3-4
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
ONE POINT REPAIR GUIDE
1. NO BOOTING WHEN YOU TURN THE UNIT ON, NO MESSAGE OR
“HELLO” ON FRONT PANEL
When you turn on your set, no message on the front panel, and stand-by LED doesn’t work.
1-1. IC302 System 12 VA (No 12 VA)
1-1-1. Solution
Replace MAIN board.
1-1-2. How to troubleshoot (Countermeasure)
1) Please check 25 VA of IC302 pin2 (VIN).
2) If 25 VA is abnormal, please check adapter.
3) If 25 VA is OK, but 12 VA is abnormal pin3 of IC302 (VOUT), replace MAIN board.

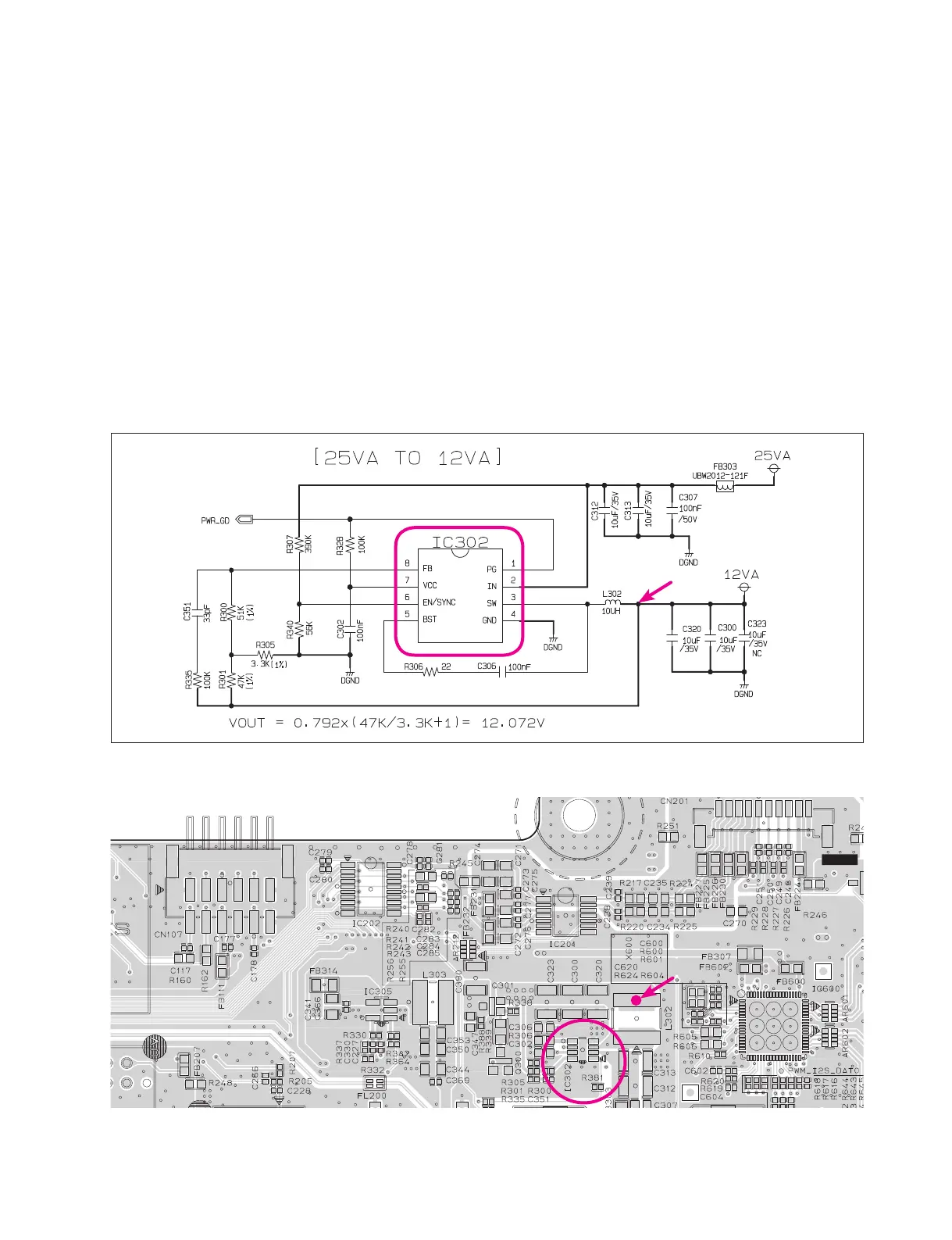

1-1-3. Service hint (Any picture / Remark)
< MAIN board top view >
IC302
L302
To Next Page
