4-8
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.

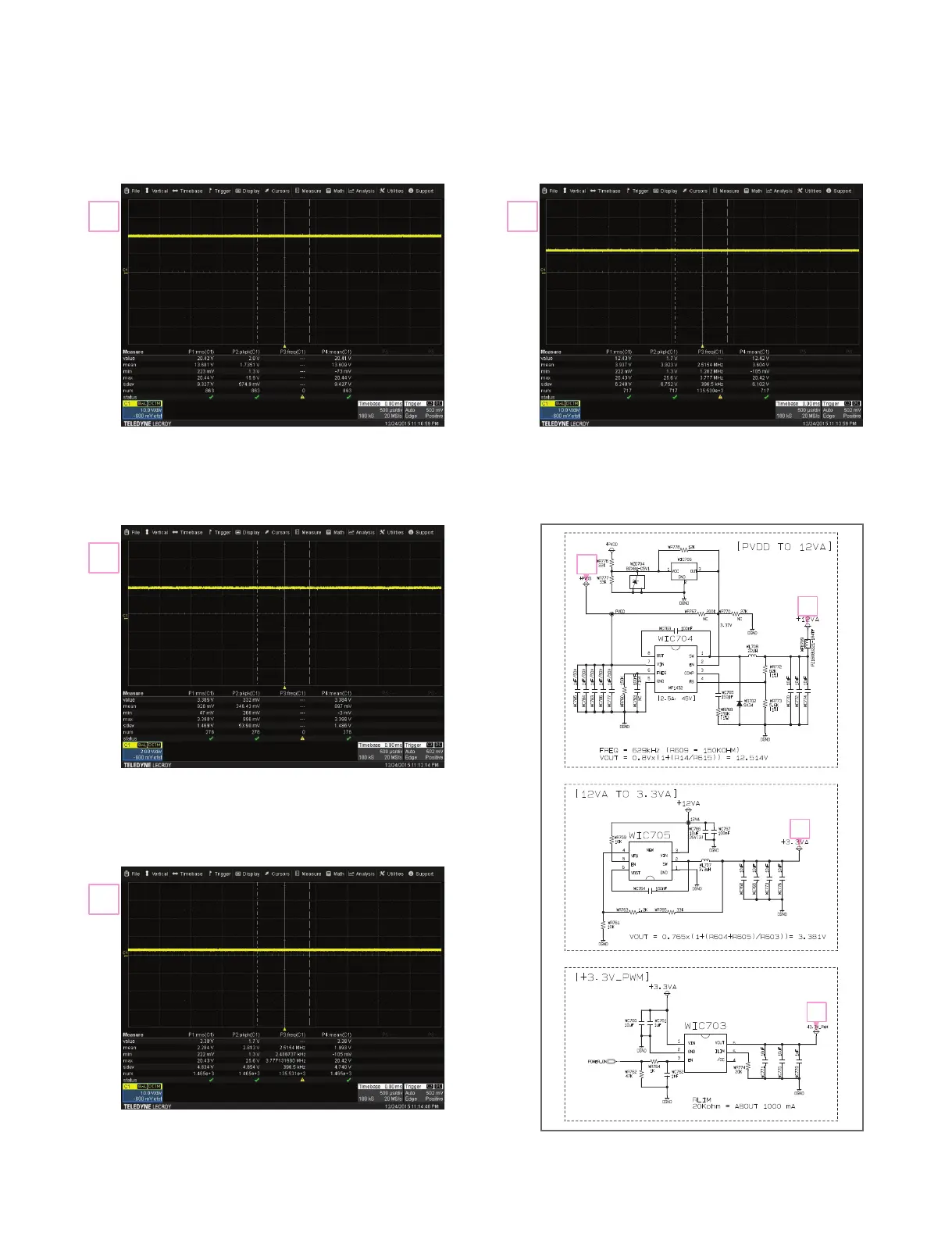

3. VOLTAGE
FIG 3-2. Woofer 12 VA
FIG 3-1. Woofer PVDD
6
7
FIG 3-3. Woofer 3.3 VA
8
FIG 3-4. Woofer 3.3V_PWM
9
7
6
8
9
