LG SPK5B-W

Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
4-164-15
PRINTED CIRCUIT BOARD DIAGRAMS

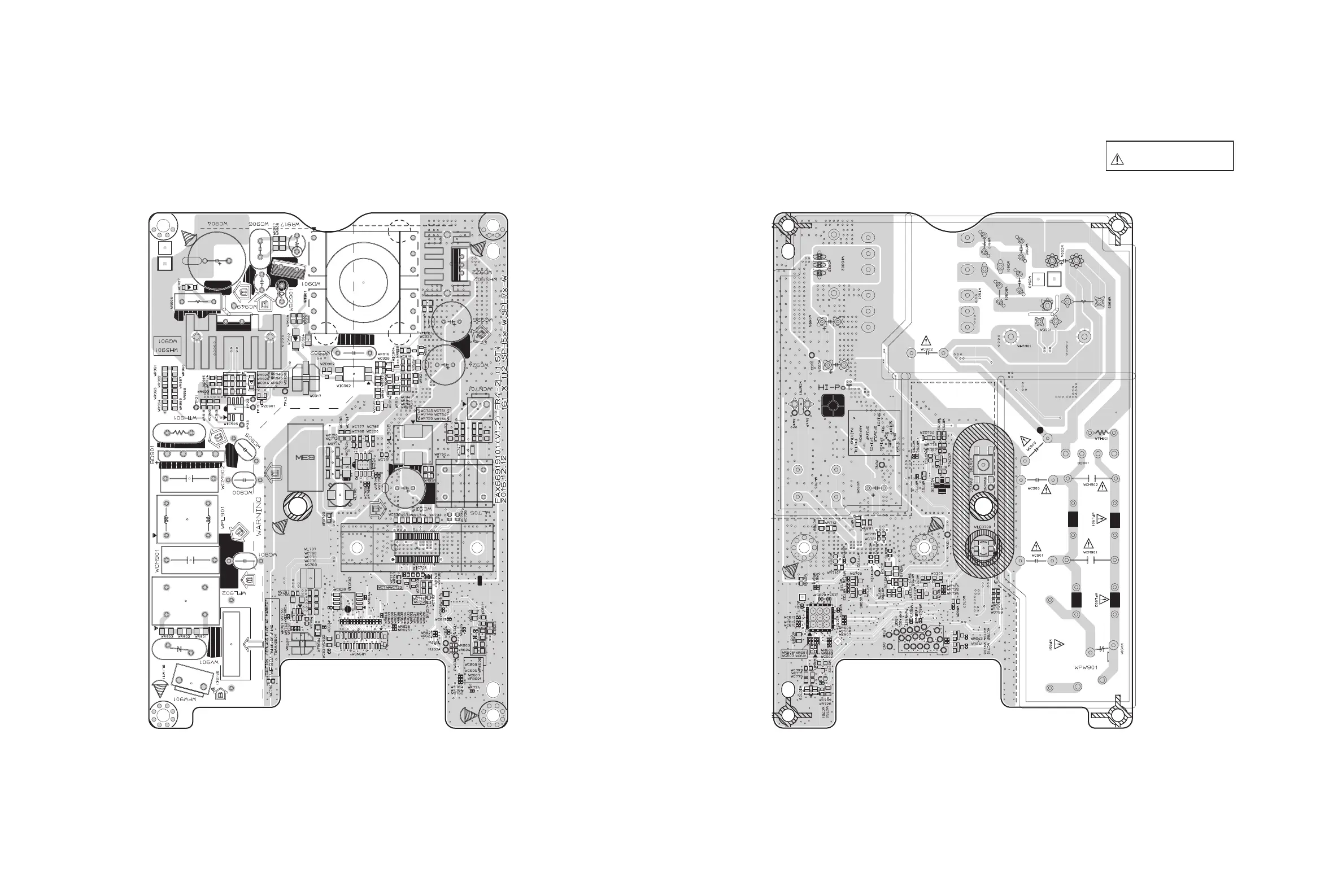

1. WOOFER SMPS & AMP P. C. BOARD
(TOP VIEW) (BOTTOM VIEW)
NOTE) Warning
Parts that are critical with respect to risk
of fire or electrical shock.
