5-7
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.

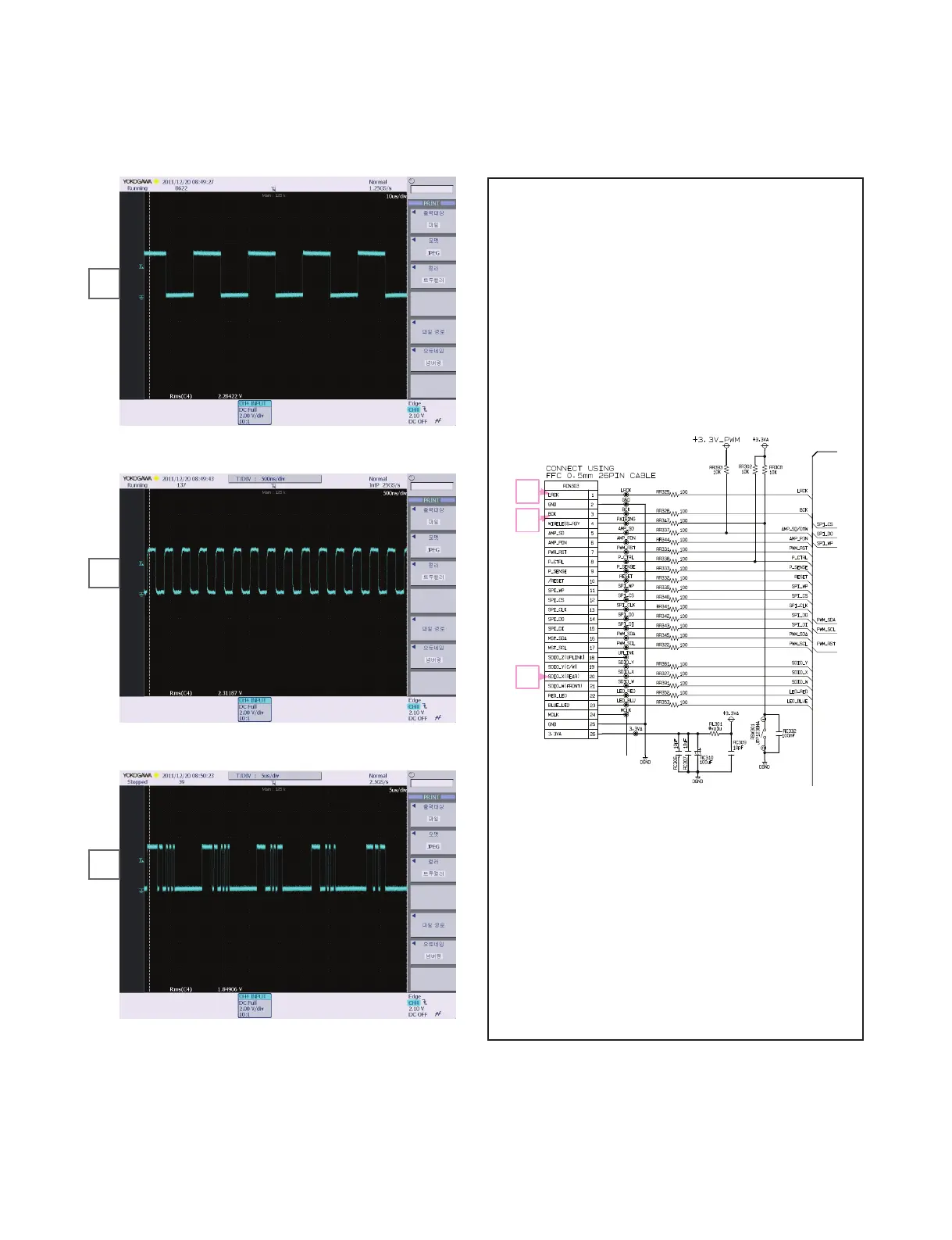

RCN303 pin1 : I2S LRCK
RCN303 pin3 : I2S BCK
1
2
WAVEFORMS
1. AUDIO PART (I2S)
RCN303 pin20 : I2S Audio Data
