INSTALLATION OF INDOOR UNIT
ENGLISH
①
②
③

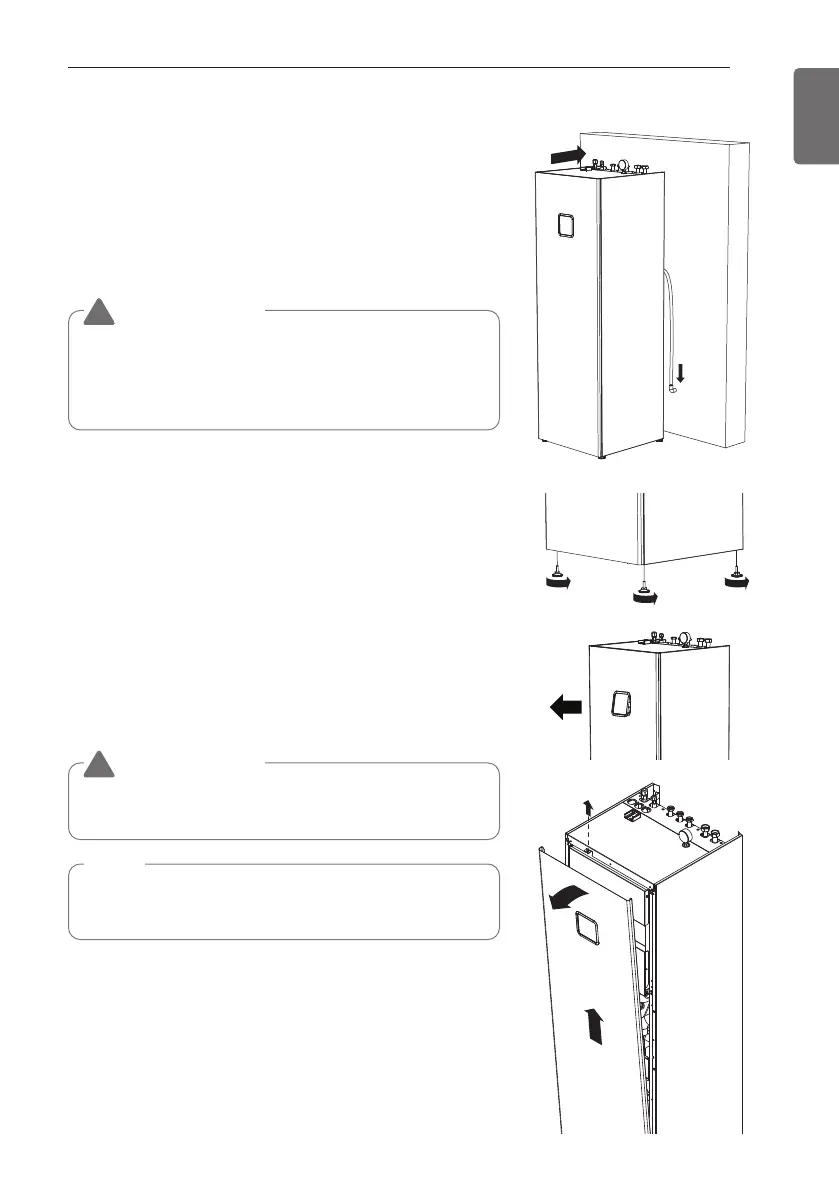

Front Panel Removal
Step 1. Disconnect the remote control case from the front
panel and disconnect the remote control cable.
Step 2. After releasing a screw from the top the indoor unit,
detach front panel ①. Tilt the front panel towards
you ② and lift it ③ for opening.
NOTE
Use a flat-blade screwdriver or a coin to remove the
remote control case.
CAUTION
!
After installation is completed, return the remote control
to its original state.
Step 3. Before connecting any pipes, level the indoor unit
with supplied adjustable levelling feet.
CAUTION
!
• Attaching the hose for the condensate drain to the
sewer hose can cause corrosion of the appliance’s
internal components.
• The drain pipe must have an odor trap!
Connecting Condensate drainage
Step 1. Before the indoor unit’s final positioning, attach the
flexible Ø16 hose to the drainpipe, which has been
prepared in advance. Insert the drainage hose into
the drain ①, which leads to the sinkhole or storm
drain. Seal the gap with a suitable gasket.
Step 2. Then push the appliance to the wall ②.
①
②
To Next Page
