LG V-NET ACS IO

10
PRODUCT INSTALLATION
ENGLISH
Connecting the product
The illustration below shows all the cable connections of the ACS IO.
Relay
On/Off output
Analog voltage output
Universal
Voltage/current/resistance/
digital input (dry only)
Digital Input
(Dry Only)
BUS A BUS B
Transformer
Power supply
24 V~
ACS IV
Controller
NL
ACS IO Module
CAUTION
• Be careful not to plug in the wrong cord when connecting to the various input/output sock-
ets. The product may be damaged an improper +/- connection is made.
!

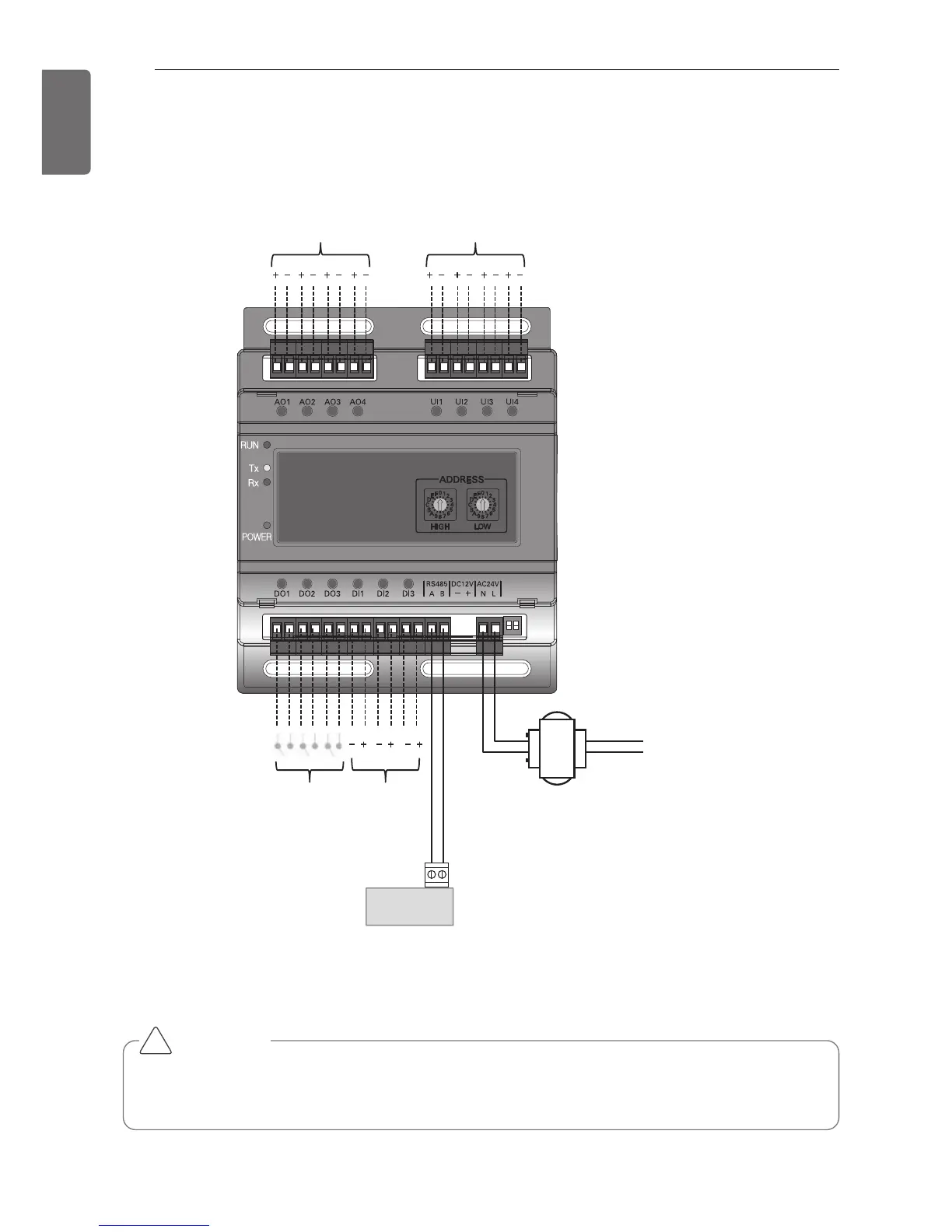

< Illustration of ACS IO cable connections >
