LG V-NET ACS IO

PRODUCT INSTALLATION
ENGLISH
9
Mounting the ACS IO to a DIN Rail
The ACS IO can be installed on a DIN Rail with a width of 35 mm and a height of 7.5 mm.
Follow the instructions below to install the ACS IO in a suitable location.
• First, decide a suitable place to install the ACS IO.
- Make sure it is a place that is suitable for connecting the IO, power source, CAN, and RS485
cables.
• Install the DIN Rail in a place suitable for connecting IO, power and RS485 cables.
• Place the upper part of the ACS IO on the DIN Rail.
• Make sure you can hear the sound of the lower part of ACS IO make contact when mounting.
• Make sure the ACS IO is secure by tugging at it gently.
• To remove ACS IO from DIN rail, gently lift module upwards while pulling the top away from
DIN.
CAUTION
• Do not attach screws to the wall after installing the DIN Rail. Doing so can damage the
product.
• DIN Rail attaching Screw Spec : M3, screw head height 2.00 ~ 1.75 mm screw head diam-
eter 7.05 ~ 5.50 mm.
• After the product has been completely mounted the installer should consider using a DIN
Rail stopper.
!
D
O
1
D
O
2
D
O
3
D
I
1
D
I
2
D
I
3
AO1
AO2
AO3
AO4
UI1
UI2
UI3
UI4
ڹ

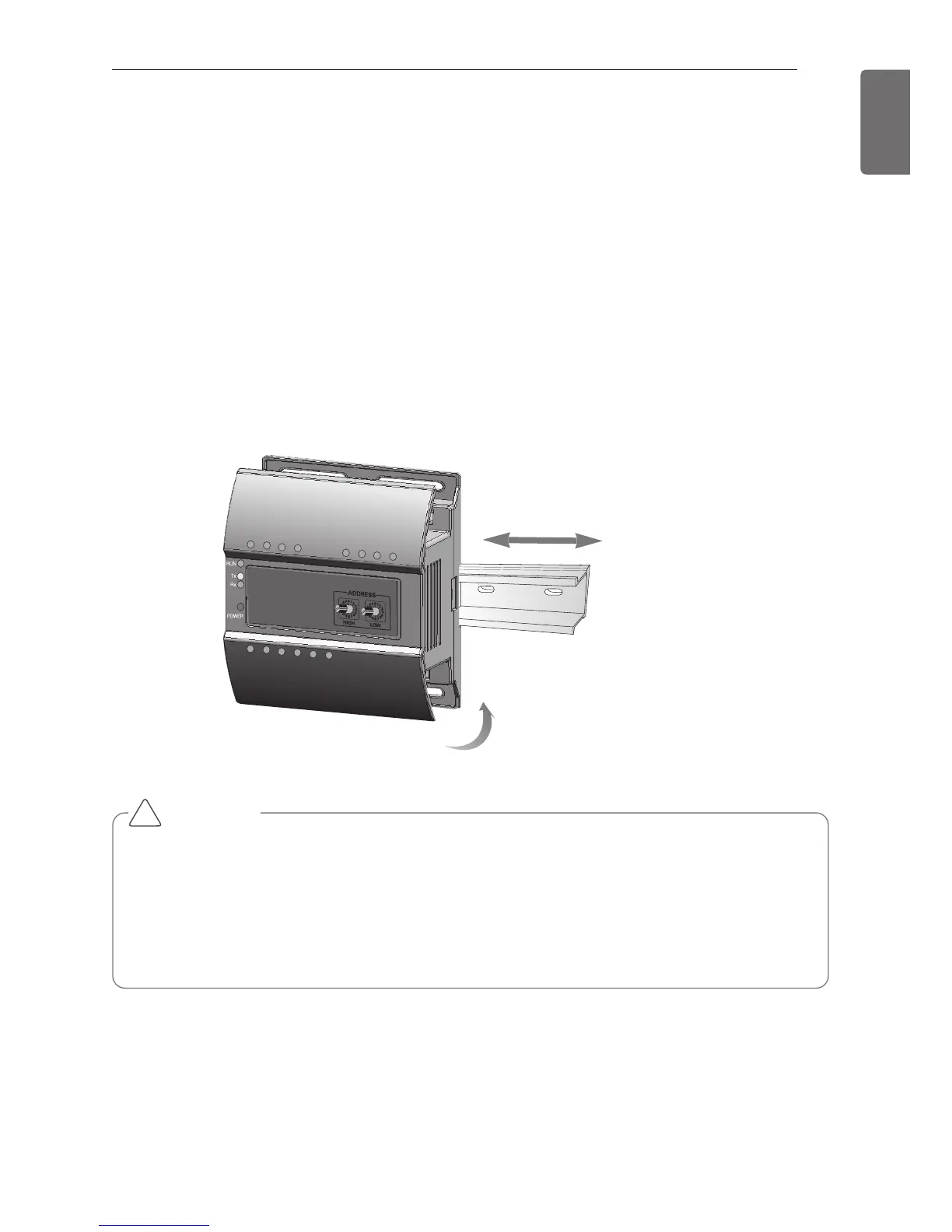

Adjust the location of the ACS IO above the rail.
Mounting to the DIN Rail
ڸ
ACS IO Module
