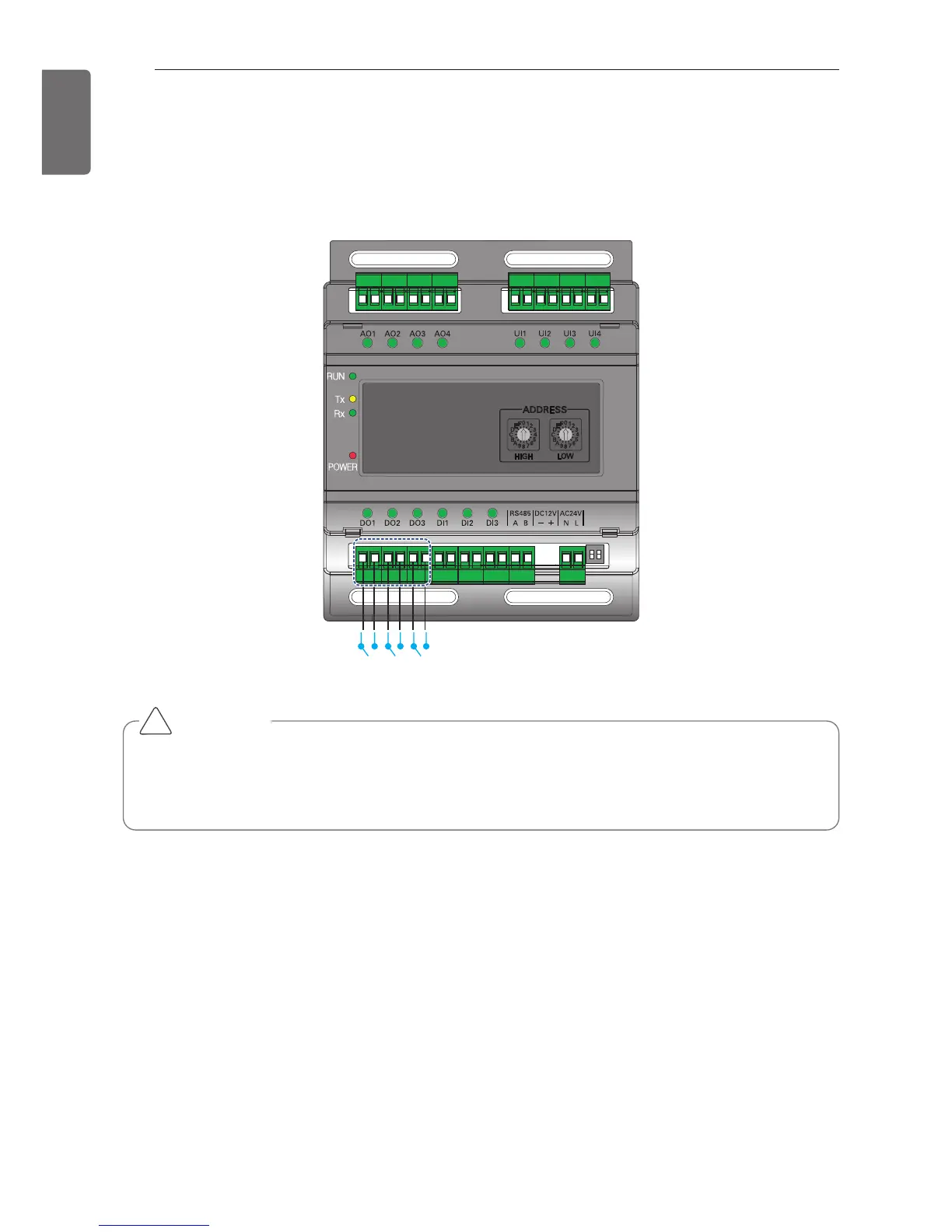

Connecting to an external device (DO port)
As for the DO port, this is a contact output port.
There are a total of 3 DO ports.
LED status (DO port)
The input status LED will light up under the following circumstances.
• When output shorts : ON
• When output opens : OFF
CAUTION
• The maximum output possible for switching through digital output is DC 30 V/30 V~ and
the maximum current is 2 A.
• Deviating from the intended range can cause the product to be damaged.
!
