PRODUCT FUNCTIONS AND SPECIFICATIONS
ENGLISH
7

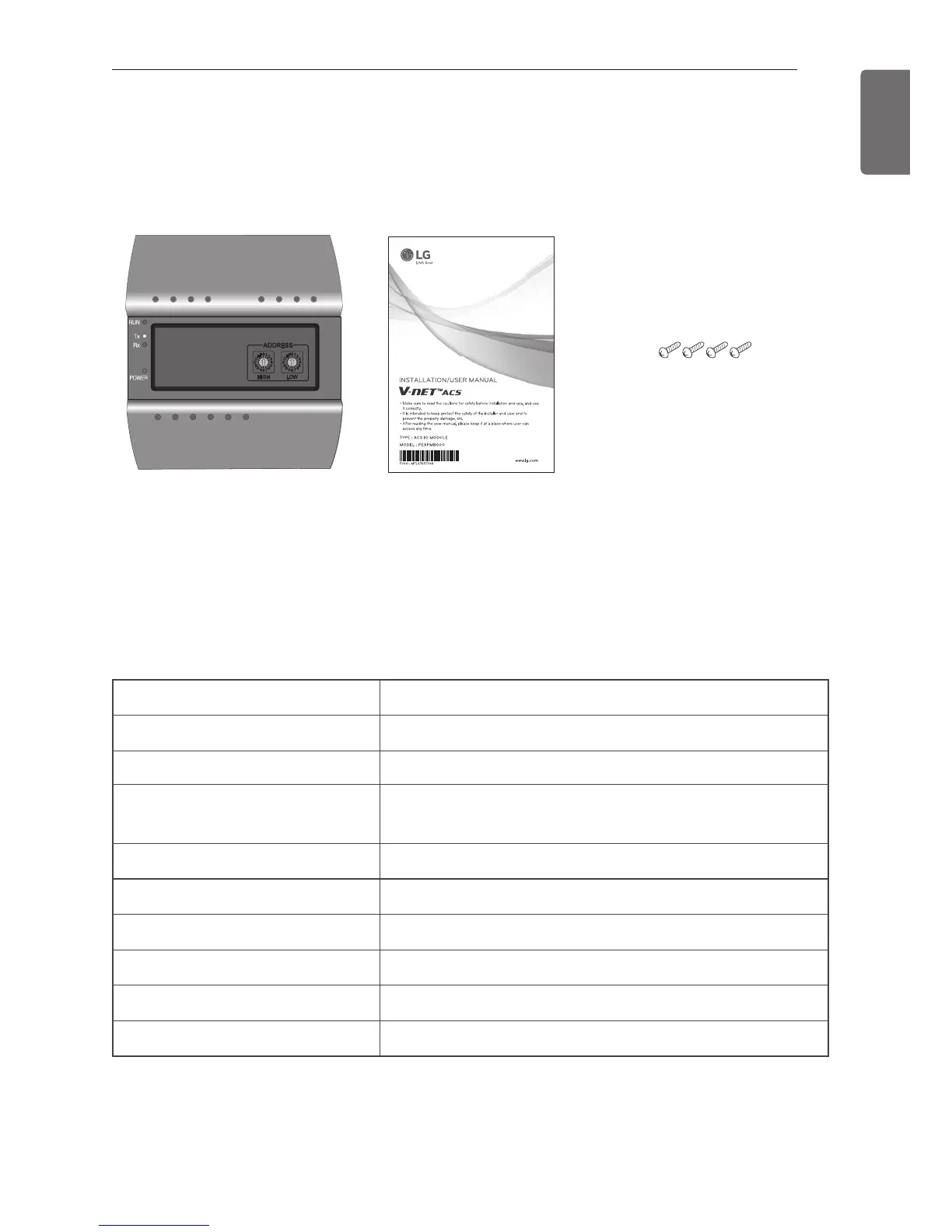

Components
There are following components in the ACS IO package box.
Open the package box of ACS IO and check whether all the components are enclosed.
Hardware and exterior specifications
The ACS IO hardware specification are as follows.
ACS IO User guidelines Installation screws
Item Description
Rotary Switch 2EA (ACS IO Address creation)
Dip Switch 1EA (Not used)
LED
18EA (485 communication status x2, power source status
x1, operation status x1, IO input status x14)
Product size and weight 155 x 126 x 64.8(width x length x height mm), 250 g
DIN Rail Specifications Standard size width 35 mm DIN Rail
Communication port
1 channel RS485 communication, 1 channel CAN communication
External input/output port DI x 3EA, DO x 3EA, UI x 4EA, AO x 4EA
Rated voltage 24 V~, 60 Hz / 500 mA
Range of service temperature
-20 ~ 60 °C
